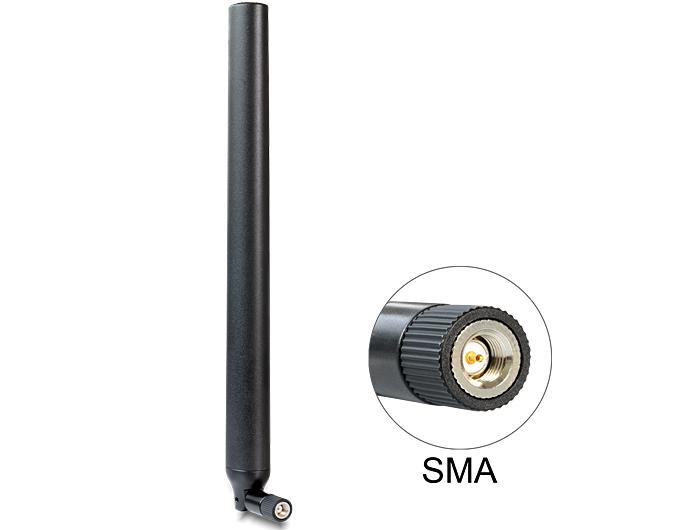

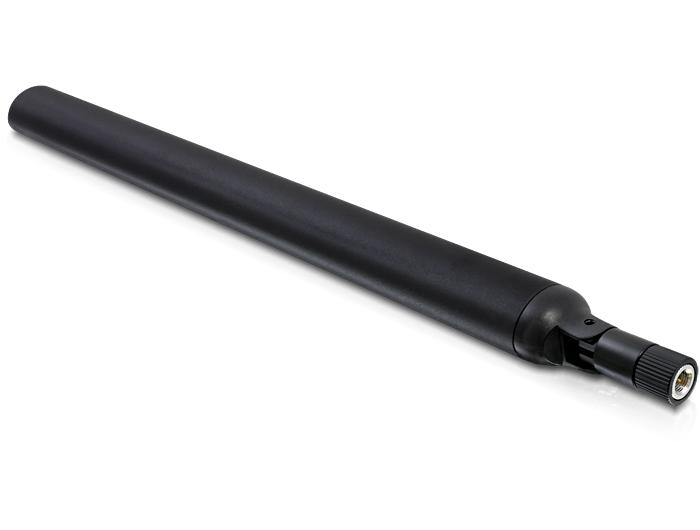

Delock LTE SMA Antenna 0.1 ~ 4.5 dBi Omnidirectional With Flexible Joint

DELOCK

88436

New

This UMTS/LTE antenna can be connected to your UMTS/LTE device with SMA connector in order to receive or to send a signal.

More details

Description:
This UMTS/LTE antenna can be connected to your UMTS/LTE device with SMA connector in order to receive or to send a signal.

Specification:
• SMA male screw interface
• With flexible joint, rotatable
• Frequency range: 791 ~ 894 MHz, 1920 ~ 2170 MHz
• Peak gain: 0.1 ~ 1.2 dBi, 3 ~ 4.5 dBi
• Average gain: >- 2,4 dBi, >- 2,1 dBi
• VSWR: 3.0 : 1 max. 2.0 : 1 max.
• LTE band 1/2/3/4/9/20
• UMTS
• Polarization: linear, vertical
• Impedance: 50 Ohm
• ABS UV resistant
• Operating temperature: -10 °C to +55 °C

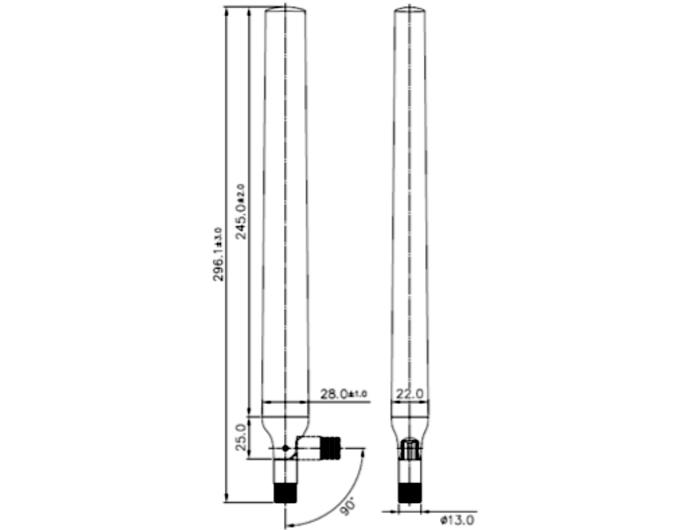

• Dimension: with flexible joint: 296.1 mm

System requirements:
• UMTS/LTE device with SMA jack

Package content:
• Antenna

Antenna
