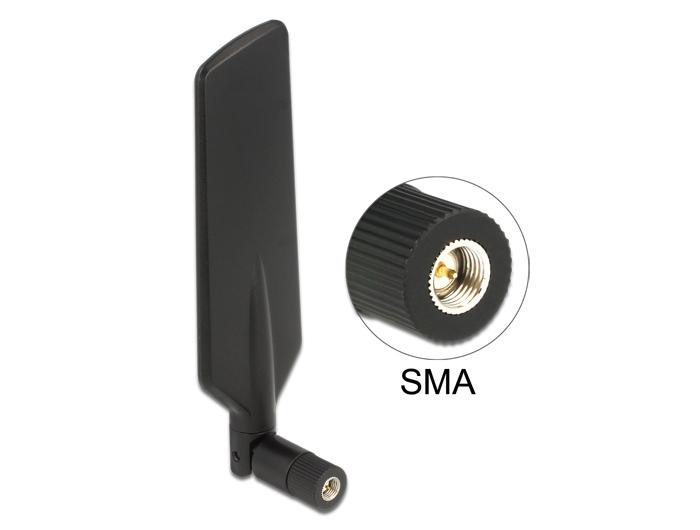

Delock LTE Antenna SMA 0.5 ~ 3 dBi Omnidirectional Rotatable With Flexible Joint Black

DELOCK

88978

New

This LTE antenna can be installed indoors and can be used for reception of different LTE bands. It is completely Bluetooth, UMTS, GSM, WLAN 2.4GHz and ZigBee compatible.

More details

Description:
This LTE antenna can be installed indoors and can be used for reception of different LTE bands. It is completely Bluetooth, UMTS, GSM, WLAN 2.4GHz and ZigBee compatible.

Specification:
• Connector: SMA plug
• LTE Band: 1/2/3/4/5/6/7/8/9/10/12/13/14/15/16/17/18/19/20/23/25
• Frequency range: 698 ~ 960 / 1710 ~ 2700 Mhz
• Bluetooth/GSM/UMTS/WLAN 2.4GHz/ZigBee
• Gain: 0.5~3 dBi
• Impedanz: 50 Ohm

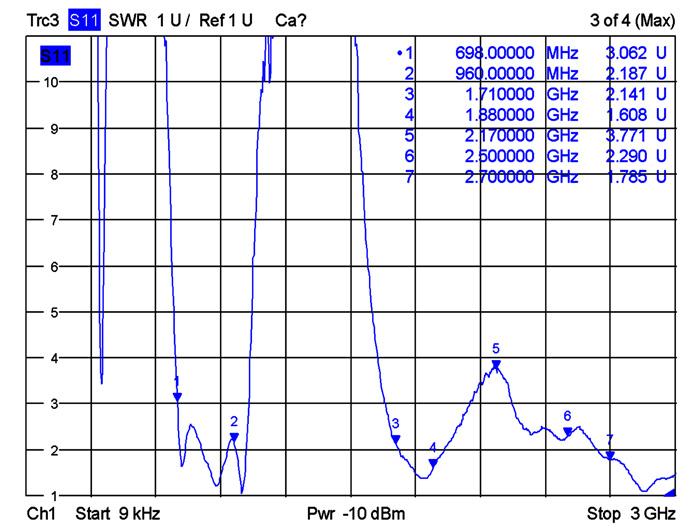

• VSWR: 3.0:1 max.
• Operating temperature: -10°C ~ 55°C
• Housing: ABS UV resistant

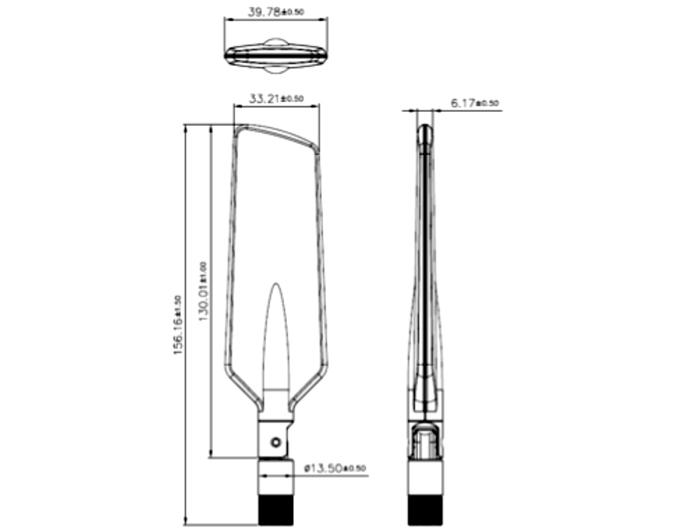

• Dimensions (LxWxH): ca. 156,16 x 39,78 x 13,50 mm
• Diameter SMA: 13.5 mm

System requirements:
• Device with free SMA connector

Package content:
• LTE antenna

Antenna
