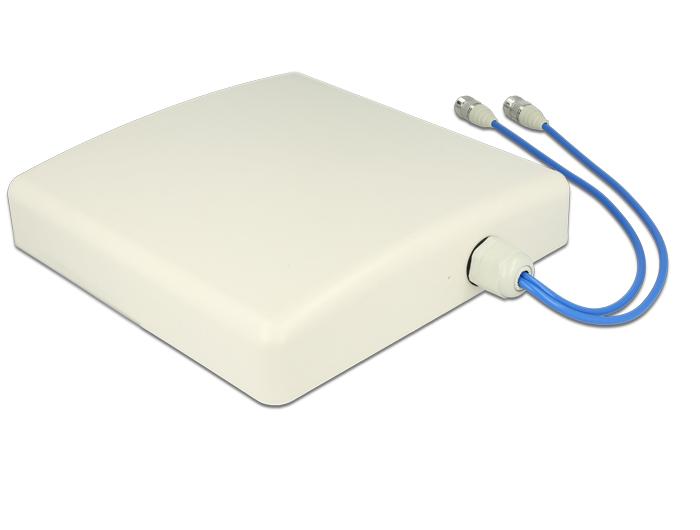

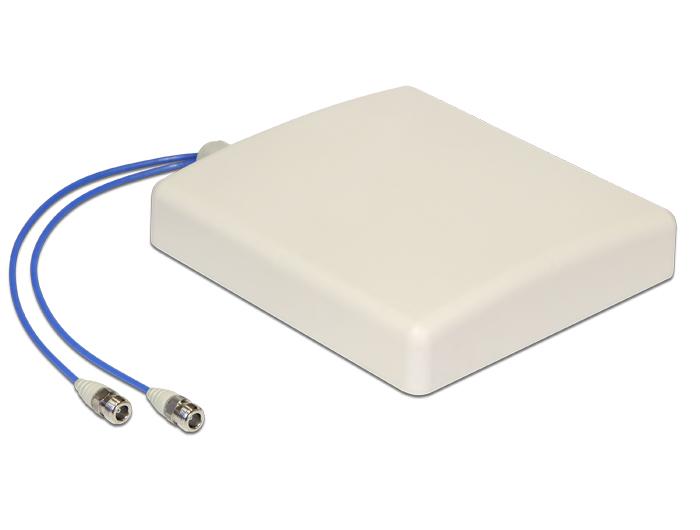

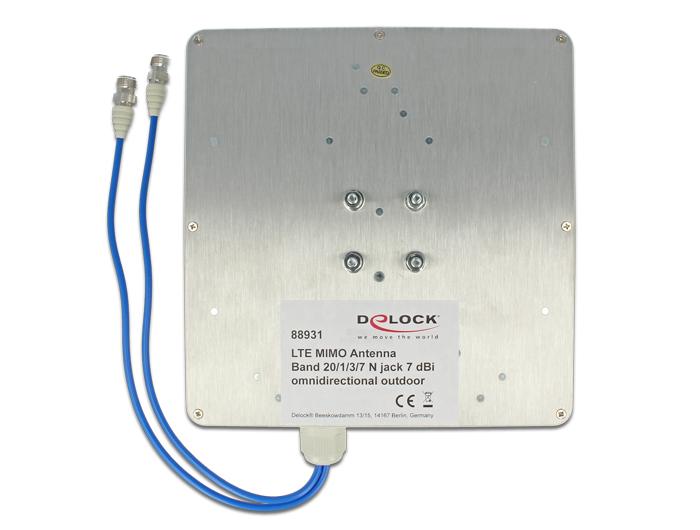

Delock LTE MIMO Antenna Band 13720 N 7 dBi Directional Beige Outdoor

DELOCK

88931

New

This LTE antenna can be installed indoors and outdoors and can be used for reception of different LTE bands. It is completely compatible to UMTS, GSM, Bluetooth, ZigBee and WiFi 2.4 GHz.

More details

Description:

This LTE antenna can be installed indoors and outdoors and can be used for reception of different LTE bands. It is completely compatible to UMTS, GSM, Bluetooth, ZigBee and WiFi 2.4 GHz.



Specification:
• Connector: 2 x N jack
• LTE Band 1/2/3/4/5/6/7/8/9/10/11/12/13/14/15/16/17/18/19/20/23/25
• UMTS / GSM / Bluetooth / WLAN 2.4 GHz / ZigBee
• Gain: 7 dBi

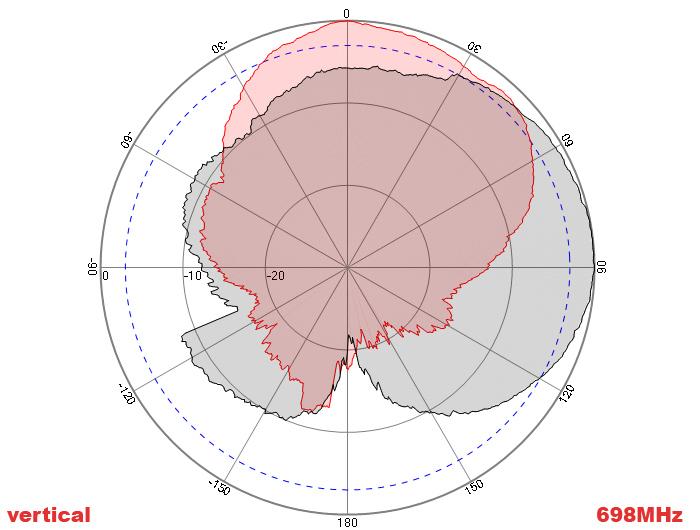

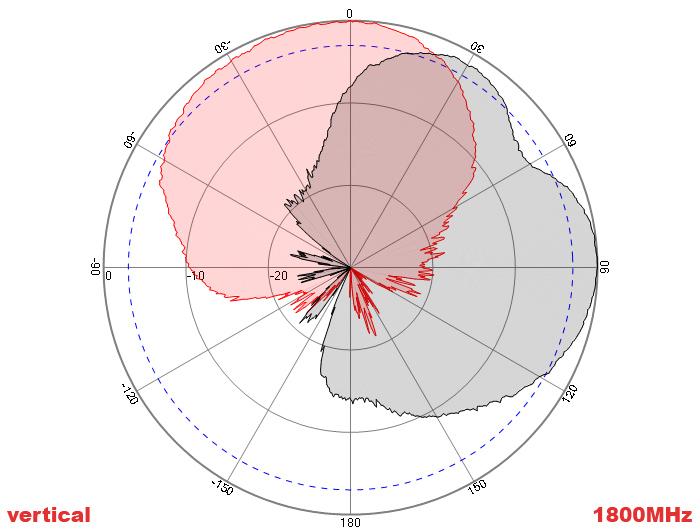

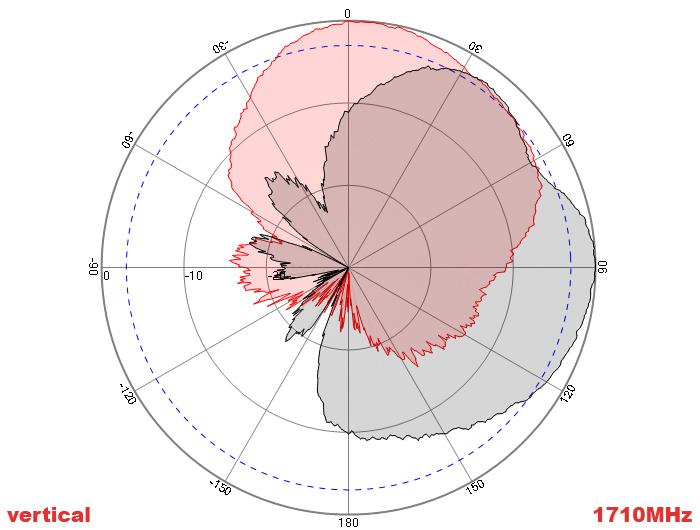

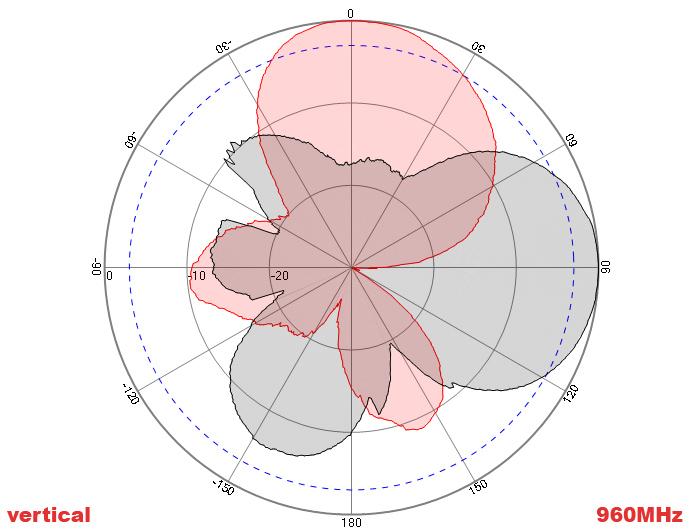

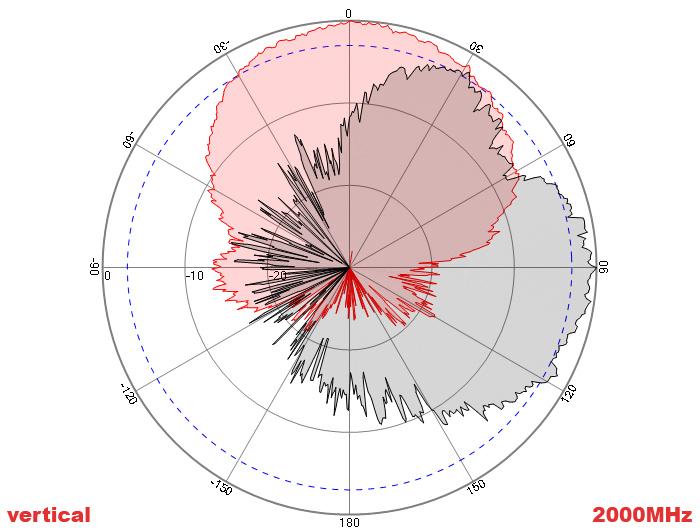

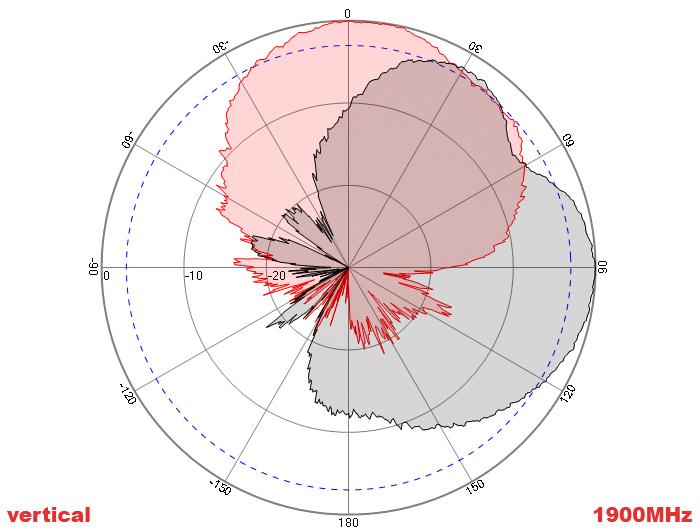

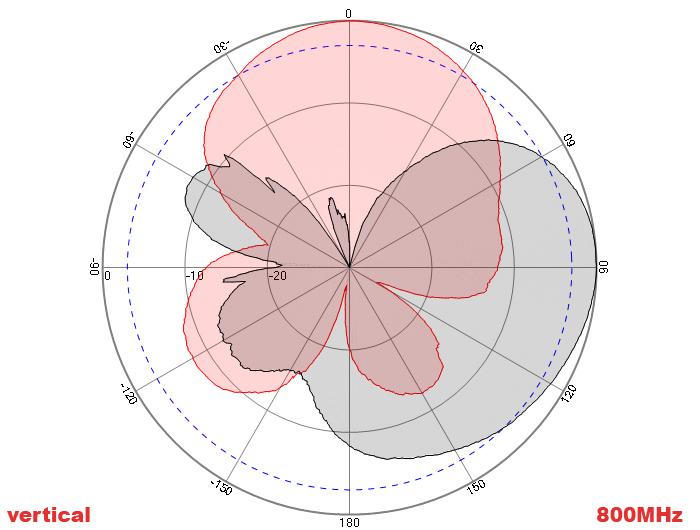

• Horizontal Beamwidth: 75°
• Vertical Beamwidth: 65°
• Polarisation: linear vertical
• Impedance: 50 Ohm
• VSWR: 1.5 max.
• Cable type: RG141
• Cable length: ca. 30 cm
• Operating temperature: -10 °C ~ 55 °C
• Housing: ABS UV resistant
• Protection class: IP 55

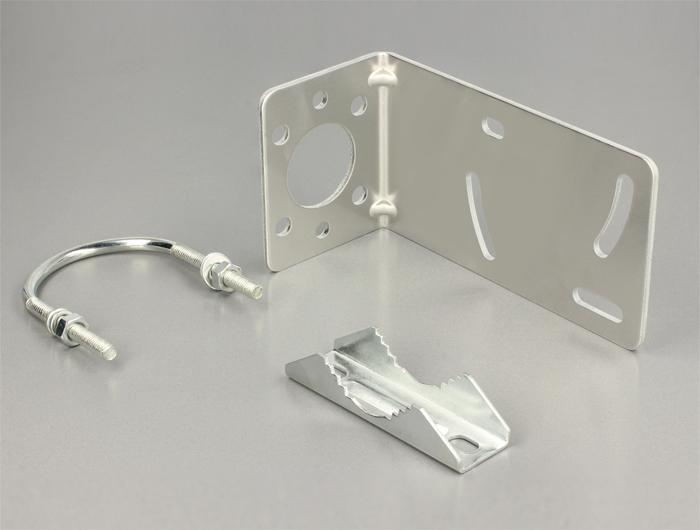

• Including wall/pole mounting kit
• Weight: 0.9 kg
• Dimension: ca. 237.5 x 229.5 x 50.0 mm

System requirements:
• Device with free N connectors

Package content:
• LTE MIMO antenna

Antenna
