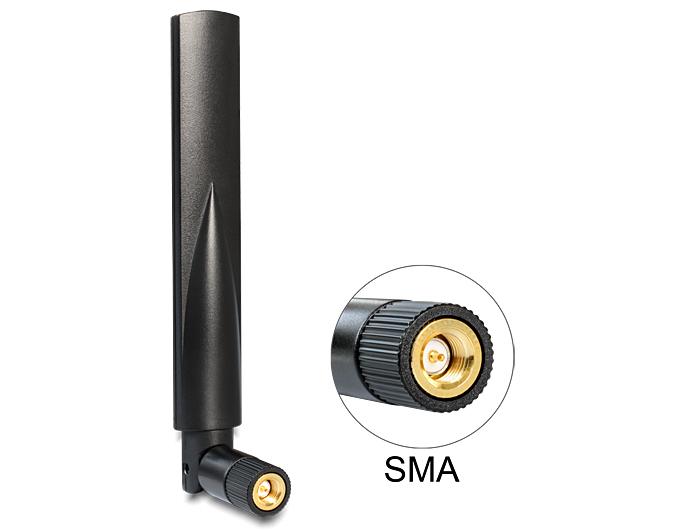

Delock GSM UMTS Antenna SMA 1 ~ 3.5 dBi omnidirectional with flexible joint

DELOCK

88416

New

This GSM/UMTS/LTE antenna can be connected to your GSM/UMTS/LTE device with SMA connector in order to receive or to send a signal.

More details

Description:
This GSM/UMTS/LTE antenna can be connected to your GSM/UMTS/LTE device with SMA connector in order to receive or to send a signal.

Specification:
• SMA plug screw interface
With flexible joint, rotatable

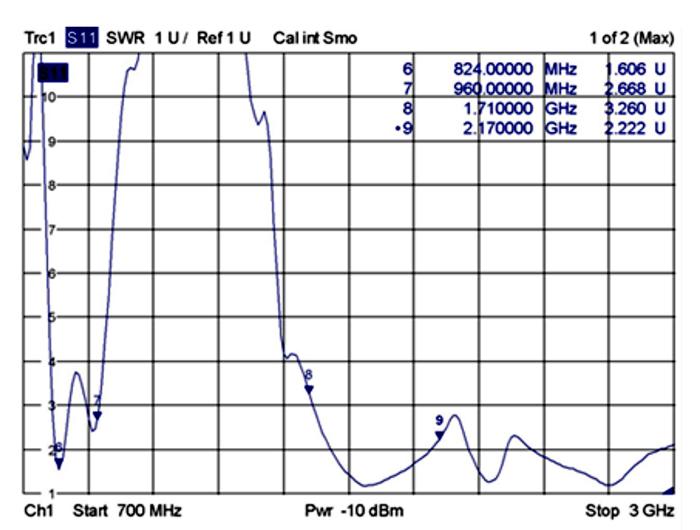

• Frequency range: 824 ~ 960 MHz, 1710 ~ 2170 MHz

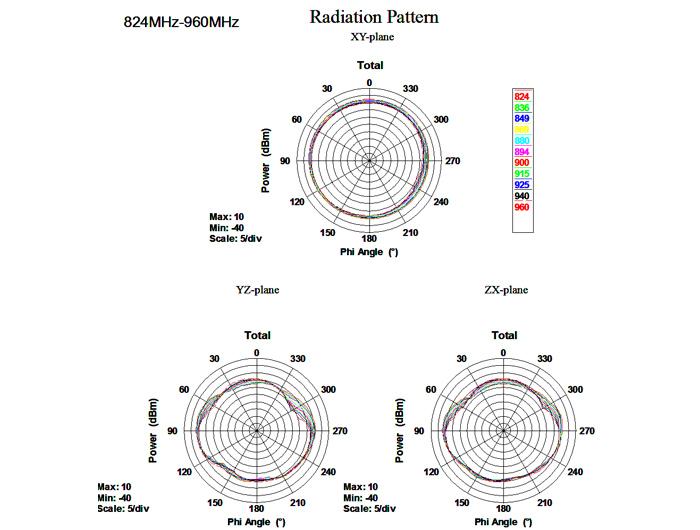

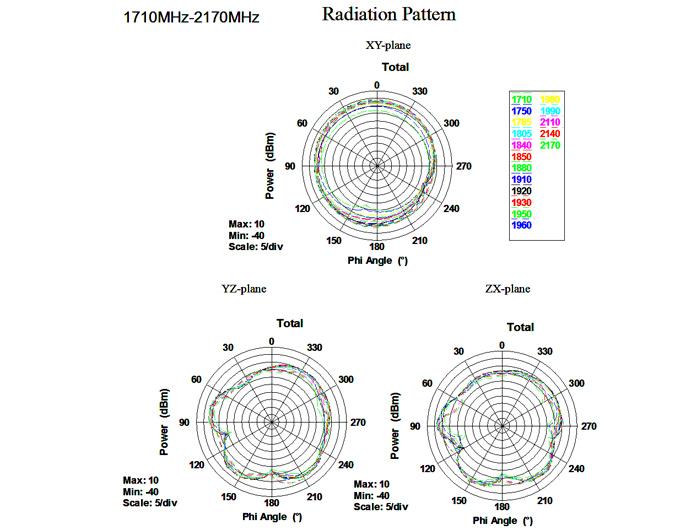

• Peak gain: 1 ~ 2.5 dBi, 1.8 ~ 3.5 dBi
• LTE band 1/2/3/4/5/8/9/10/25
• Impedance: 50 Ohm
• Operating temperature: -10 °C ~ 55 °C
• Colour: black

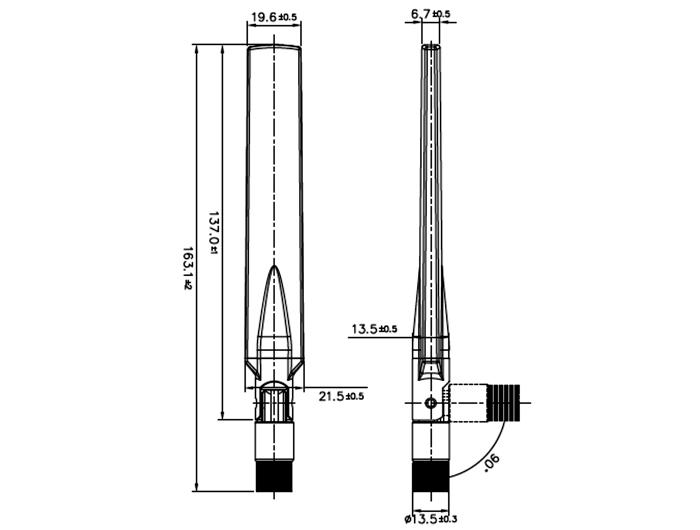

Length: with flexible joint 163.1 mm
without flexible joint 137 mm
• Ø: 19.10 mm (top)
13.50 mm (base)

System requirements:


Package content:
• Antenna

Antenna
