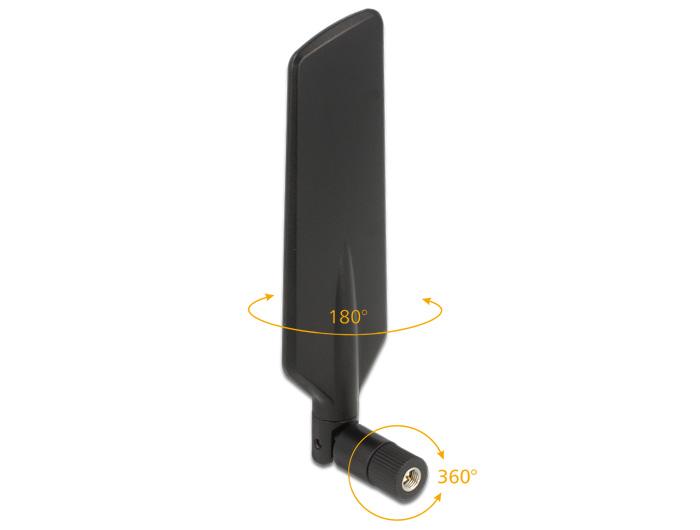

Delock LTE WLAN Dual Band Antenna RP-SMA 1 ~ 4 dBi omnidirectional rotatable with flexible joint black

DELOCK

12409

New

This LTE antenna can be installed indoors and can be used for reception of different LTE bands. It is completely Bluetooth, UMTS, GSM, WLAN dual band and ZigBee compatible.

More details

Description:
This LTE antenna can be installed indoors and can be used for reception of different LTE bands. It is completely Bluetooth, UMTS, GSM, WLAN dual band and ZigBee compatible.

Specification:

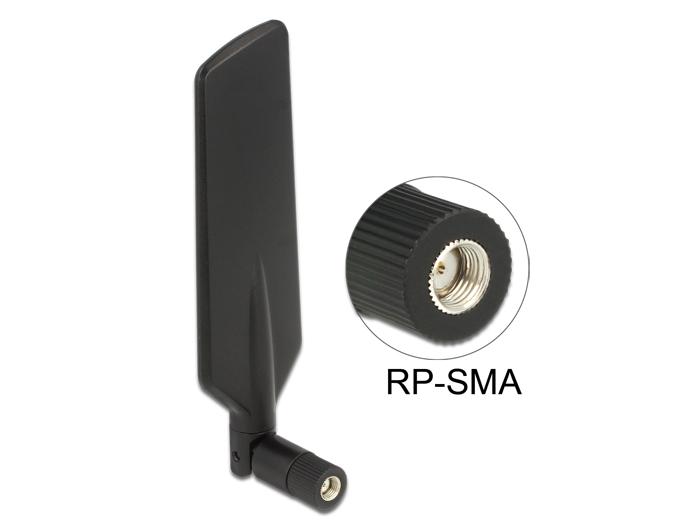

• Connector: RP-SMA plug
• LTE Band: 1 ~ 10; 12 ~ 20; 23; 25
• Frequency range: 698 ~ 791; 824 ~ 960; 1710 ~ 2170; 2400 ~ 2500; 5150 ~ 5875 MHz
Bluetooth / GSM / UMTS / WLAN Dualband / ZigBee

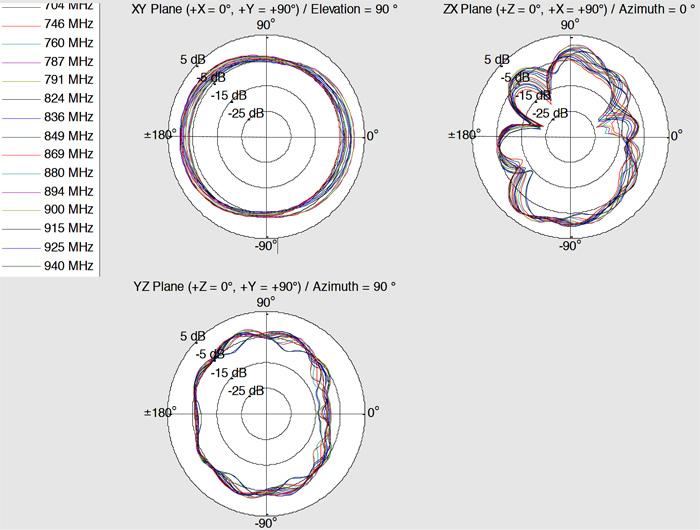

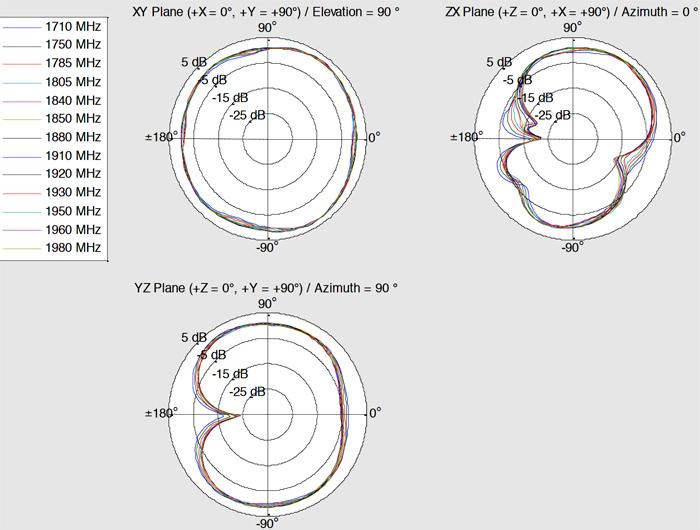

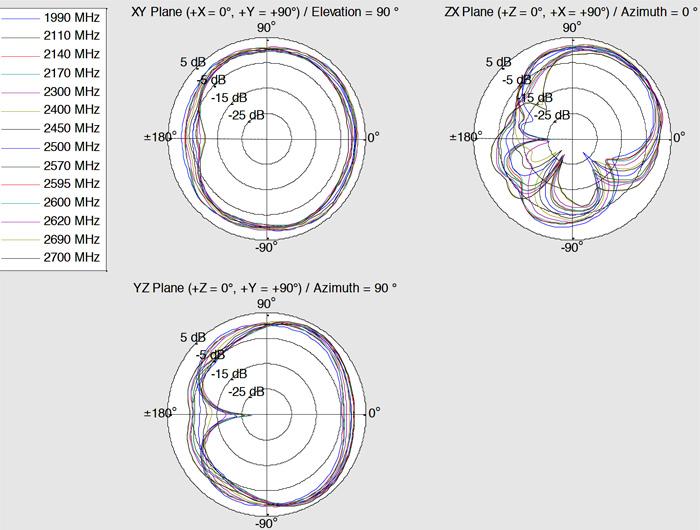

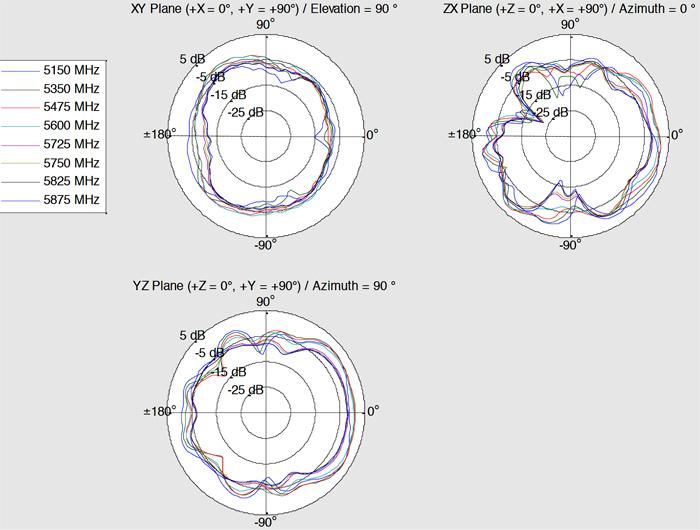

• Gain: 1 ~ 4 dBi
• Impedance: 50 Ohm

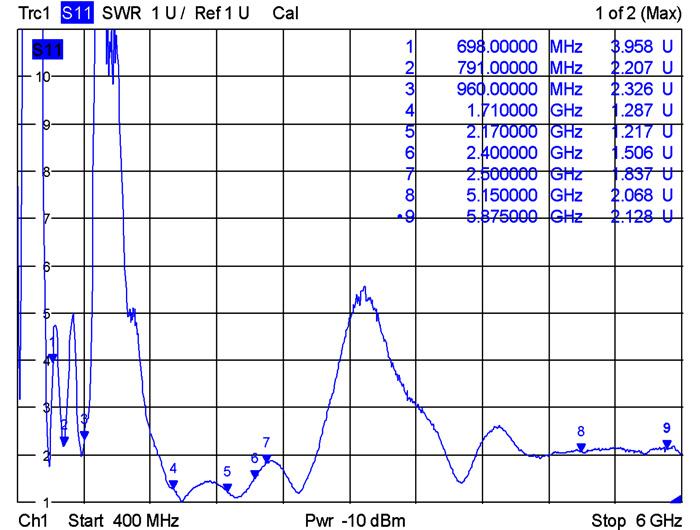

• VSWR: 2.5:1 ~ 5.0:1
• Operating temperature: -10°C ~ 55°C
• Housing: ABS, UV resistant

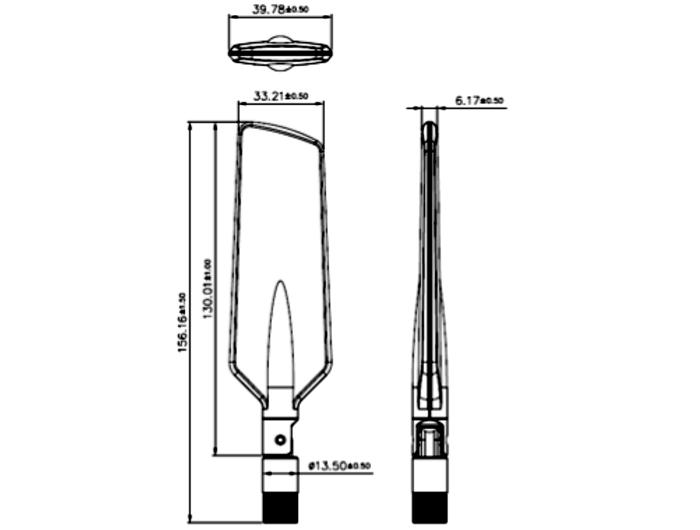

• Dimensions (LxWxH): ca. 156.16 x 39.78 x 13.50 mm
• Diameter RP-SMA: ca. 13.5 mm

System requirements:
• Device with free RP-SMA connector

Package content:
• Antenna

Antenna
