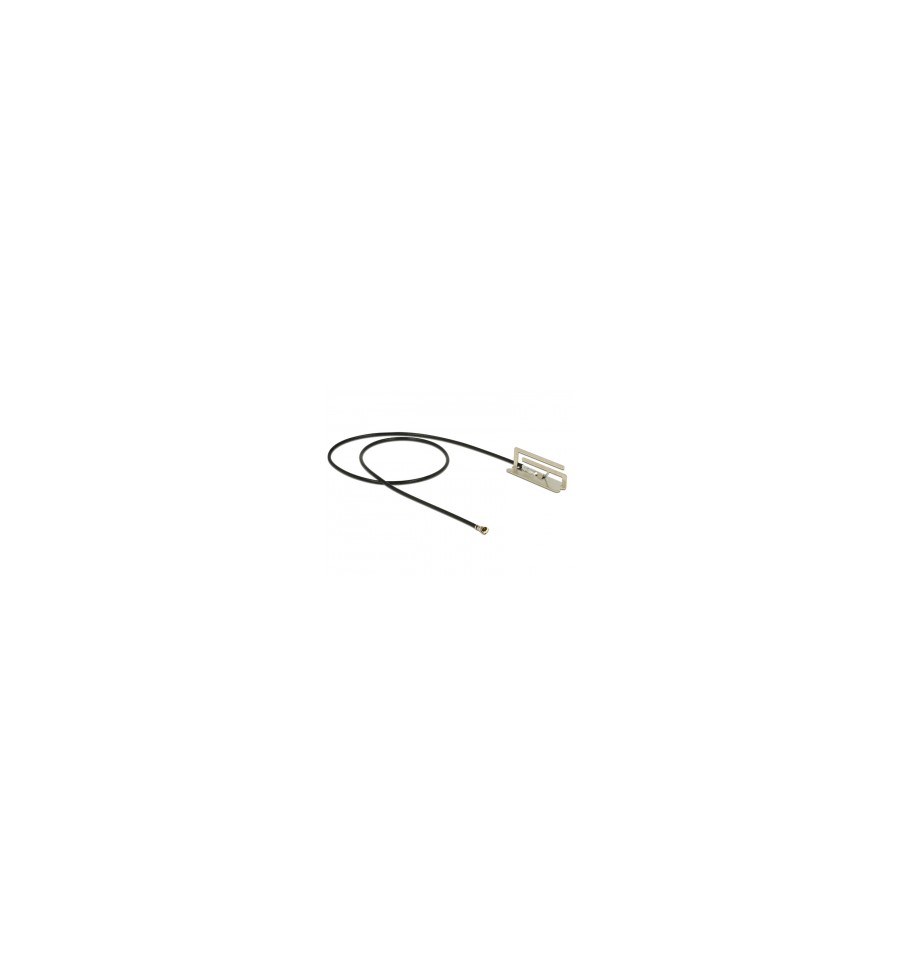

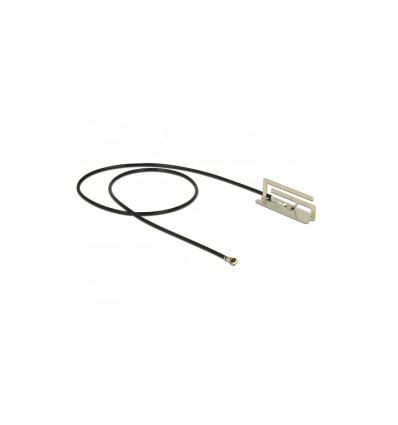

Delock WLAN Antenna MHF IV/HSC MXHP32 802.11 ac/a/h/b/g/n PIFA 1.6 dBi 250 mm internal

Description
This WLAN antenna can be integrated into your devices with MHF IV/HSC MXHP32 compatible connector.

Specification
• Connector: Miniature RF Coaxial Connector MHF IV/HSC MXHP32 compatible plug
• PIFA: Planar Inverted F-Shaped Antenna
• Frequency range: 2.400 ~ 2.500 GHz, 5.150 ~ 5.875 GHz
• Gain: max. 1,6 dBi, average -4.0 dBi
• Impedance: 50 Ohm
• VSWR: 2.5
• Operating temperature: -10 °C ~ 55 °C
• Cable type: coaxial
• Cable length: ca. 134 mm
• Cable diameter: ca. 1.13 mm
• Dimensions: (LxWxH): ca. 21.5 x 6.0 x 7.0 mm

System requirements
• Device with MHF IV/HSC MXHP32 compatible connector

Package content
• Antenna

Package
• Poly bag
