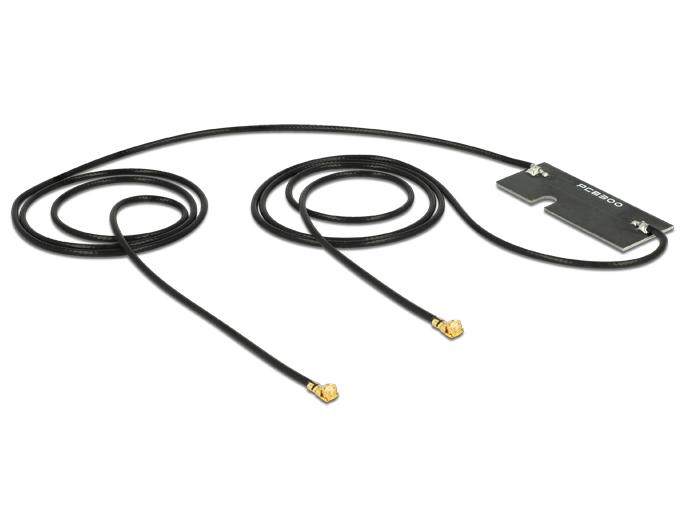

Delock Twin Antenna WLAN MHFU.FL-LP-068 compatible plug 802.11 acahbgn 3 - 5 dBi 2x 500 mm PCB internal self-adhesive

DELOCK

89450

New

This WLAN twin antenna by Delock is designed to integrate into devices with two MHF / U.FL compatible connectors. These are two separate antennas with common ground. One is responsible for 2 GHz and the other is responsible for 5 GHz.

More details

Description:
This WLAN twin antenna by Delock is designed to integrate into devices with two MHF / U.FL compatible connectors. These are two separate antennas with common ground. One is responsible for 2 GHz and the other is responsible for 5 GHz.

Specification:
• Connectors: 2 x miniature RF coaxial connector MHF (I-PEX), U.FL (Hirose) compatible
• Frequency range:
2400 - 2500 MHz
5150
- 5850 MHz
• Antenna gain: 3 - 5 dBi
• Impedance: 50 Ohm
• VSWR: 2
• Operating temperature: -10 °C - 50 °C

• Dimensions (LxWxH): ca. 38.20 x 13.50 x 1.60 mm
• Cable category: coaxial
• Cable type: 1.13 mm
• Cable colour: black

• Cable diameter: 1.13 mm
• Cable length: 2 x 500 mm



System requirements:
• Device with free MHF (I-PEX), U.FL (Hirose) compatible connector.

Package content:
• PCB antenna

Antenna
