Multiband GPS LTE UMTS GSM SMA Antenna omnidirectional roof mount outdoor

NAVILOCK

12457

New

This Navilock multi-band antenna has three physically separate transmitting and receiving units. The GPS patch antenna receives the signals of the Global Navigation Satellite System GPS. Two PIFA antennas, respectively, for LTE and GSM / UMTS are responsible for sending and receiving in these areas. Due to its outdoor features, the multiband antenna is well suitable for usage in harsh areas su...

More details

Description:

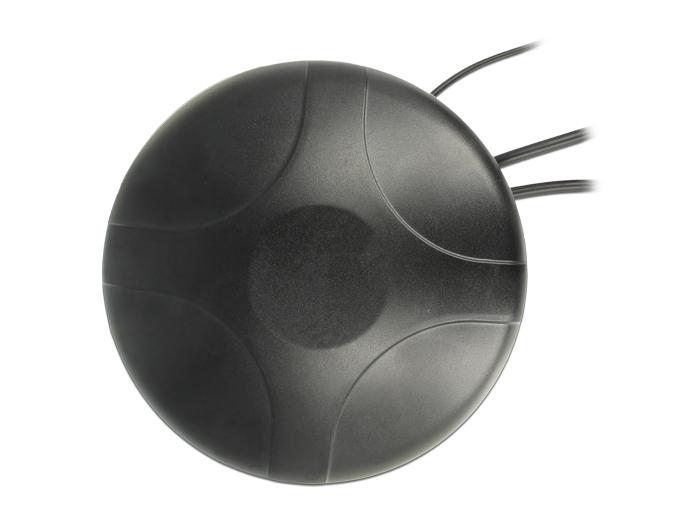

This Navilock multi-band antenna has three physically separate transmitting and receiving units. The GPS patch antenna receives the signals of the Global Navigation Satellite System GPS. Two PIFA antennas, respectively, for LTE and GSM / UMTS are responsible for sending and receiving in these areas.
Due to its outdoor features, the multiband antenna is well suitable for usage in harsh areas such as transportation, forestry, agriculture, construction and in the maritime sector. It is waterproof, shock resistant and can be used in the extended temperature range.

Specification:

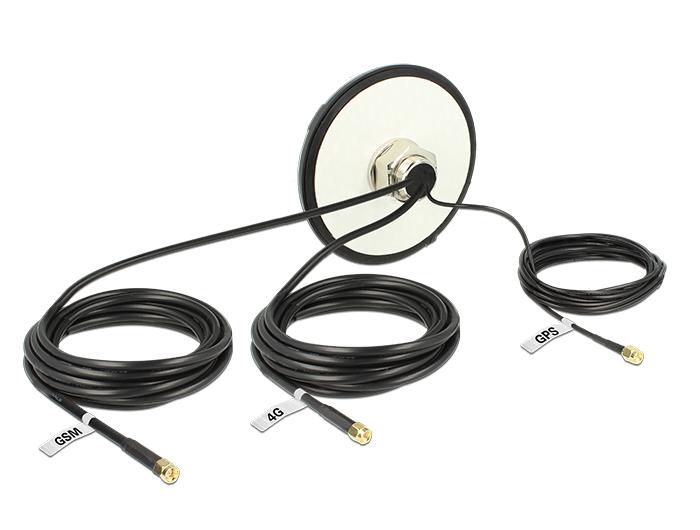

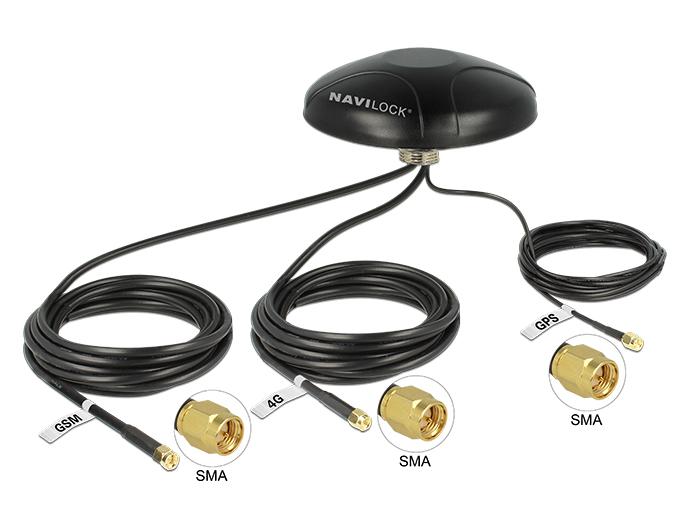

• Connectors: 3 x SMA plug
• GPS:
Frequency range:
GPS: L1, 1.57542 GHz
Antenna gain: 4 dBi
VSWR: 2.5
Impedance: 50 Ohm
Polarisation: RHCP
• LNA GPS:
Frequency range:
GPS: L1, 1.57542 GHz
Gain: 28 dBi
Voltage: 2.2 - 5.0 V
Current: 5 - 15 mA
VSWR: 2.0
Impedance: 50 Ohm
Cable category: coaxial
Cable type: RG-174
Cable attenuation:
1.5 dB @ 1.5 GHz per meter
Cable diameter: ca. 2.7 mm
• LTE:
Frequency range:
0.698 - 0.960 GHz
1.710 - 2.700 GHz
LTE Band: 1-10/ 12-20/ 23/ 25-30/ 33-41
GSM / UMTS / ZigBee / Z-Wave / WLAN 2.4 GHz / Bluetooth
Antenna gain: 3 dBi
Impedance: 50 Ohm
Polarisation: linear
VSWR: 2.5
Cable category: coaxial
Cable type: RG-58/U
Cable attenuation:
0.6 dBi @ 1 GHz per meter
Cable diameter: ca. 4.95 mm
• GSM UMTS:
Frequency range:
0.824 - 0.960 GHz
1.710 - 2.170 GHz
GSM / UMTS / Z-Wave
Antenna gain: 3 dBi
Impedance: 50 Ohm
Polarisation: linear
VSWR: 2.5
Cable category: coaxial
Cable type: RG-58/U
Cable attenuation:
0.6 dBi @ 1 GHz per meter
Cable diameter: ca. 4.95 mm
• Operating temperature: -40°C ~ 85°C
• Housing material: ABS
• Protection class: IP67
• Screw assembly:
Hole diameter: 30 mm
• Colour: black

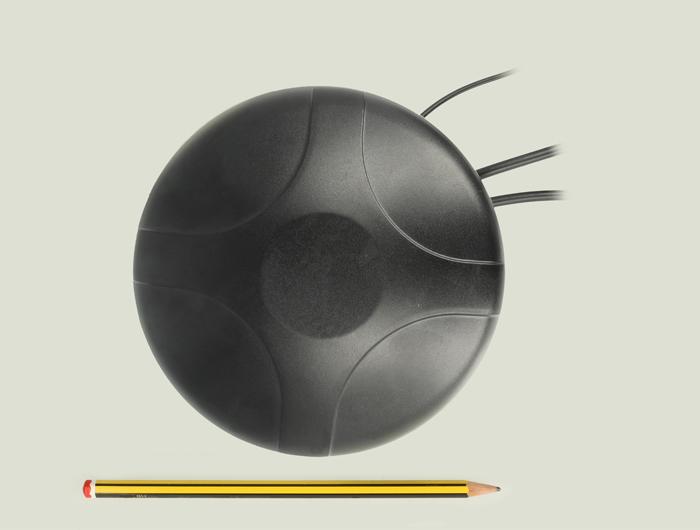

• Dimension (ØxH): ca. 143.6 x 65 mm
• Cable color: black
• Cable length: ca. 3 m

System requirements:
• Device with free SMA connectors

Package content:
• Multiband antenna
• Nut
