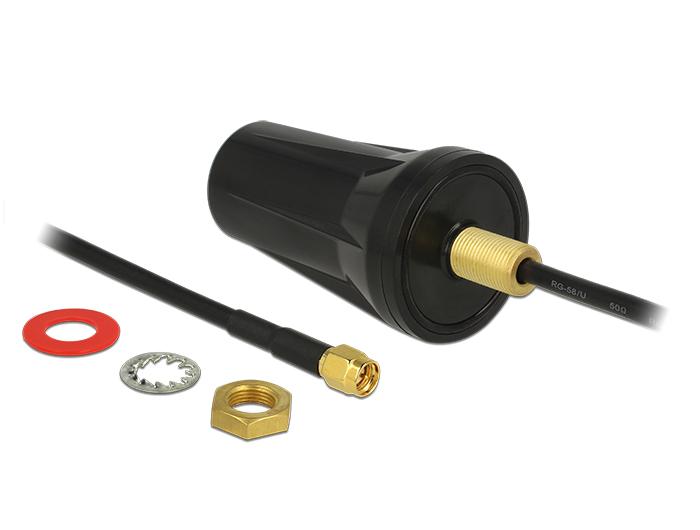

ISM 433 MHz Antenna SMA plug 2 dBi omnidirectional black roof mount outdoor

DELOCK

89487

New

This ISM antenna by Delock can be installed outdoors and indoors and can be used with the 433 MHz band.

More details

Description:
This ISM antenna by Delock can be installed outdoors and indoors and can be used with the 433 MHz band.

Specification:
• Connector: SMA plug
• Frequency range: 433 MHz +/- 3 MHz
• Antenna gain: 2 dBi
• Impedance: 50 Ohm
• Polarisation: linear vertical
• VSWR: 2.0
• Operating temperature: -40 °C ~ 85 °C
• Protection class: IP67
• Screw mounting 13 mm central hole
• Thread length: 19.5 mm
• Thread: M12
• Colour: black
• Dimension: (L x Ø): ca. 75.5 x 45.2 mm
• Cable category: coaxial
• Cable type: RG-58 U
• Cable attenuation: 0.35 dB @ 400 MHz per meter
• Cable diameter: 4,95 mm
• Cable length incl. connector: ca. 2 m

System requirements:
• Device with a free SMA jack

Package content:
• ISM 433 MHz antenna
• Screw nut
