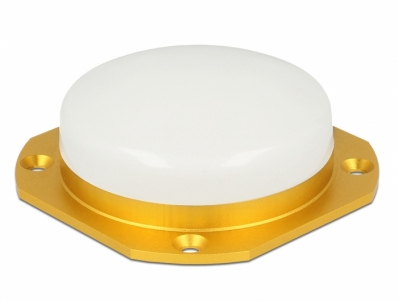

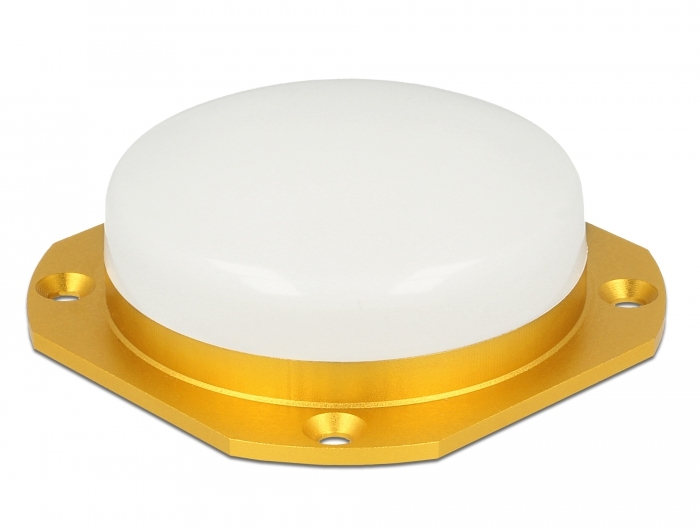

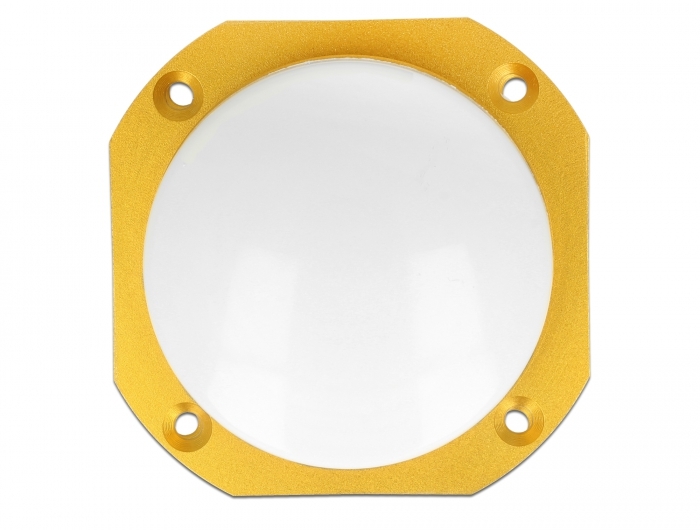

Navilock NL-60561M Dualfeed BEIDOU GALILEO GLONASS GPS TNC jack GNSS Active Antenna roof mount outdoor

NAVILOCK

60562

New

This precise antenna by Navilock receives signals from BEIDOU, GALILEO, GLONASS and GPS satellites simultaneously on GNSS devices.
System requirements:
• Antenna cable with a free TNC plug
• GNSS receiver
Specification:

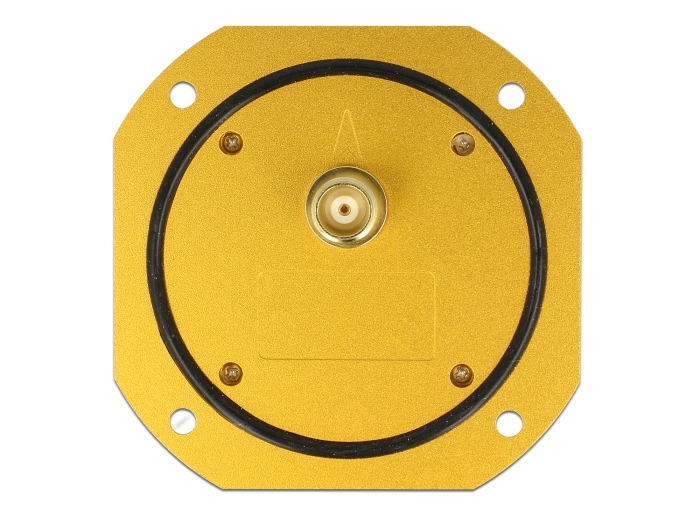

• Connector: 1 x TNC jack
• Patch antenna GNSS
  Frequency range:
  1559.052 - 1616.000 MHz
  1205.094 - 1278.750 MHz
  GNSS bands:
  BEIDOU:        B1, B1-2
  GALILEO:      E1
  GLONASS:    G1, G2
  GPS:              L1, L2
  Antenna gain: 3 dBi
  VSWR: 2
  Impedance: 50 Ohm
  Polarisation: RHCP
• LNA GNSS:
  Frequency range:
  1559.052 - 1616.000 MHz
  1205.094 - 1278.750 MHz
  GNSS bands:
  BEIDOU:        B1, B1-2
  GALILEO:      E1
  GLONASS:    G1, G2
  GPS:              L1, L2
  Gain: 40 dBi
  Noise figure: < 1.5 dB
  Passband fluctuation: +/- 1 dB
  Voltage: 3.3 - 5.0 V
  Current: 45 mA
  VSWR: < 2
  1 dB compression point P1dB: > 0 dB
  Impedance: 50 Ohm
• Housing colour: white
• Housing material: ABS
• Protection class: IP67
• Operating temperature: -40 °C ~ 85 °C
• Weight: ca. 150 g
• Diameter: ca. 90.0 mm
• Height: ca. 30.3 mm
Package content:
• GNSS antenna

Antenna
