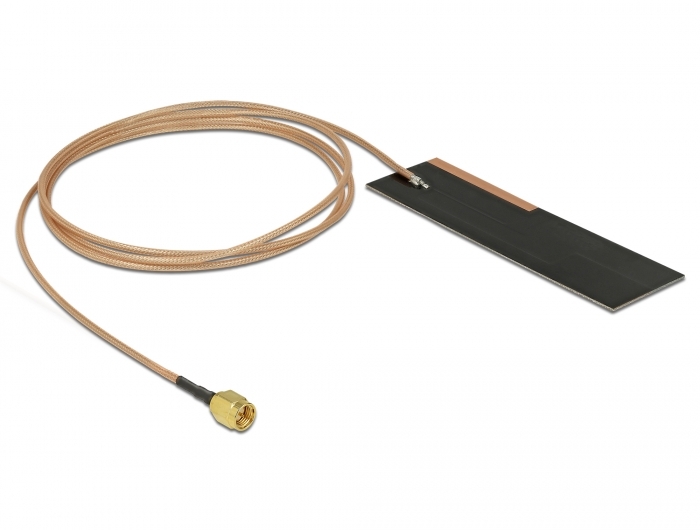

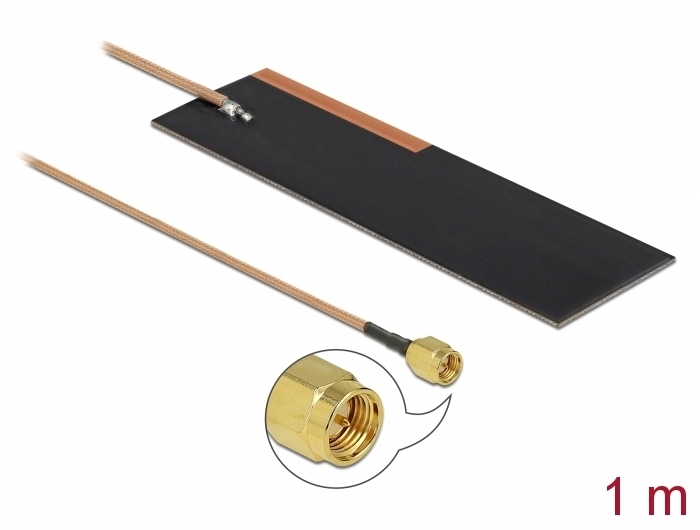

Delock LPWAN Antenna SMA plug 1 - 2 dBi RG-178 1 m PCB internal self adhesive

DELOCK

12620

New

This LPWAN antenna by Delock allows the usage of the NB-IoT bands indoors.
System requirements:
• Device with one free SMA port
Specification:
• Connector: 1 x SMA plug
• Frequency range:
  703 MHz - 824 MHz
  832 MHz - 960 MHz
• ZigBee, Z-Wave, GSM, LTE, NB-IoT, LoRa, ISM
• Antenna gain: 1 - 2 dBi
• VSWR: 3.5
• Impedance: 50 Ohm
• Mounting type: self adhesive
• Operating temperature: -10 °C ~ 55 °C
• Housing material: PCB
• Colour: black
• Cable type: coaxial
• Cable type: RG-178
• Cable colour: black
• Cable diameter: ca. 1.8 mm
• Cable attenuation: 2.9 dB @ 2.4 GHz per meter
• Smallest bending radius: 7.5 mm
• Dimensions (LxW): ca. 85.0 x 25.0 mm
• Cable length incl. connector: ca. 1 m
Package content:
• Antenna
Data sheet:
http://www.delock.de/produkt/12620/pdf.html?sprache=en
