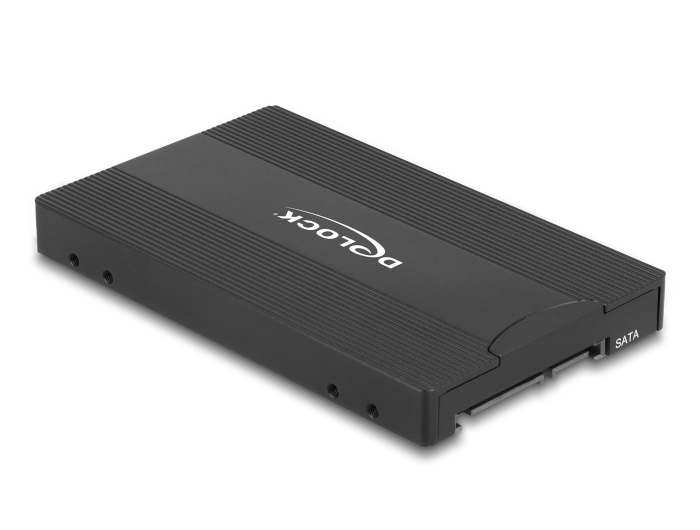

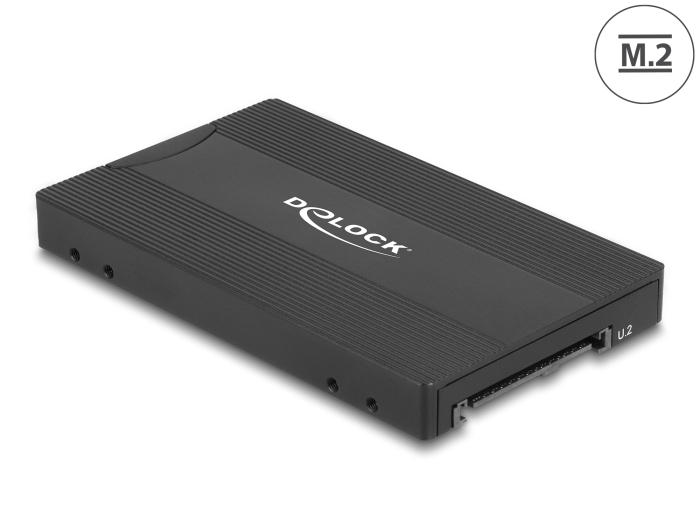

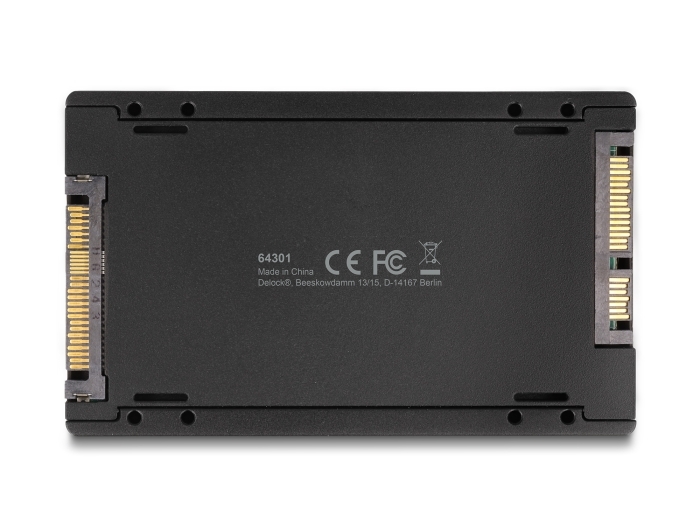

Delock Converter M.2 Key M NVMe SSD to U.2 or M.2 Key B SATA SSD to SATA - tool free

Reference 64301

Condition: New

More info

This converter by Delock enables the installation of an M.2 PCIe NVMe SSD with key M or SATA M.2 SSD with key B in 2280, 2260, 2242 and 2230 format. When using a NVMe SSD, the converter is connected to the U.2 interface, connected to the SATA interface when using a SATA SSD.

Suitable for 2.5″ bay

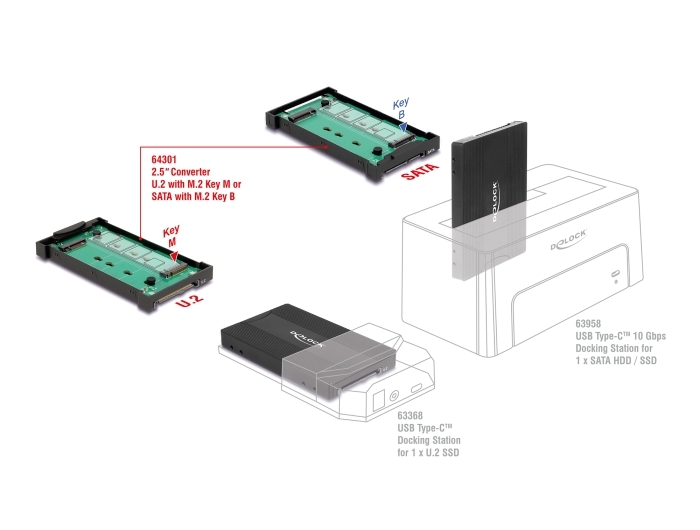

The converter can be plugged into a 2.5″ bay of a docking station for HDD / SSD.

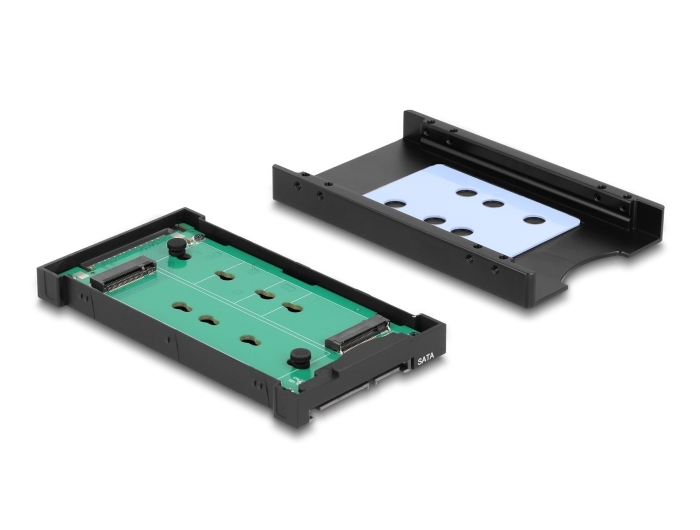

The special feature of this enclosure is that no tools are required to install the M.2 SSD. The SSD is inserted into the slot and attached to the board with a rubber nipple.

Good cooling
At the top part, which is made of metal, a connection to the SSD is made via a thermal conduction pad inside. This ensures a cooling of the SSD.

System requirements:
• A free U.2 SFF-8639 interface or
• A free SATA 22 pin interface

Specification:
• Connectors:
  external:
  1 x U.2 SFF-8639 male
  1 x SATA 6 Gb/s 22 pin plug
  internal:
  1 x M.2 key M slot
  1 x M.2 key B slot
• Supports M.2 modules in format 2280, 2260, 2242 and 2230 with key M, key B or key B+M based on SATA or PCIe
• Maximum height of the components on the module: 1.5 mm, application of double-sided assembled modules supported
• Supports NVM Express (NVMe)
• Supports S.M.A.R.T.
• Supports TRIM
• Dimensions (LxWxH): ca. 115 x 70 x 12 mm
• OS independent, no driver installation necessary

Package content:
• Converter
• Screws
• User manual

Data sheet:
http://www.delock.de/produkt/64301/pdf.html?sprache=en
