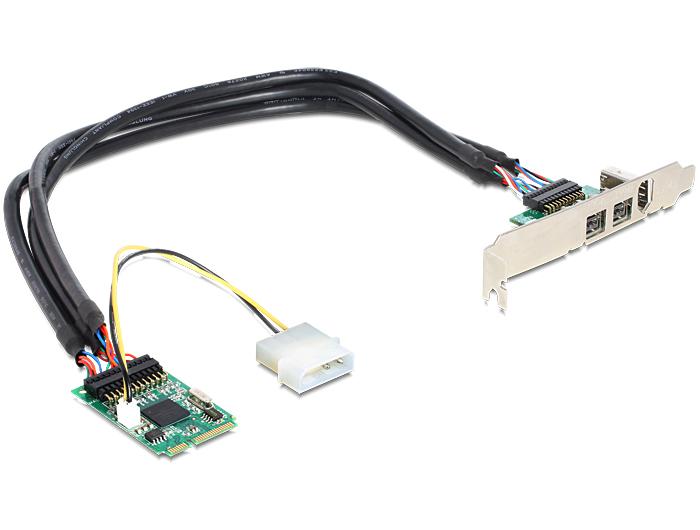

Delock MiniPCIe IO PCIe full size 1 x FireWire A, 2 x FireWire B

Description:
This miniPCIe adapter by Delock expands your system by one FireWire A port and two FireWire B ports, which you can lead out via the slot bracket. You can connect different FireWire devices like Card Reader, hubs, cameras etc. to this adapter.

Specification:
• Chipset: LSI-LFW643E2
• Form factor: miniPCIe full size
• Interface: PCI Express revision 1.2
• Connector:
internal:
1 x 2 pin power connector
externally on the bracket:
1 x FireWire 1394A 6 pin female
2 x FireWire 1394B 9 pin female
• Data transfer rate:
FireWire A up to 400 Mb/s
FireWire B up to 800 Mb/s
• Supports OHCI specifications V1.1
• Hot Swap
• Cable length with connector:
FireWire ca. 46 cm
power cable ca. 17 cm
• Operating temperature: -10 °C ~ 80 °C

System requirements:
• Windows Vista/7/7-64/8/8-64/8.1/8.1-64
• Mainboard with a free miniPCIe slot with a PCIe interface
• PC with one free slot

Package content:
• MiniPCIe module
• Connecting cable
• FireWire bracket
• 1 Molex power cable
• 2 screws
• User manual
