Delock PCI Express Card to 1 x Serial with voltage supply ESD protection

DELOCK

90293

New

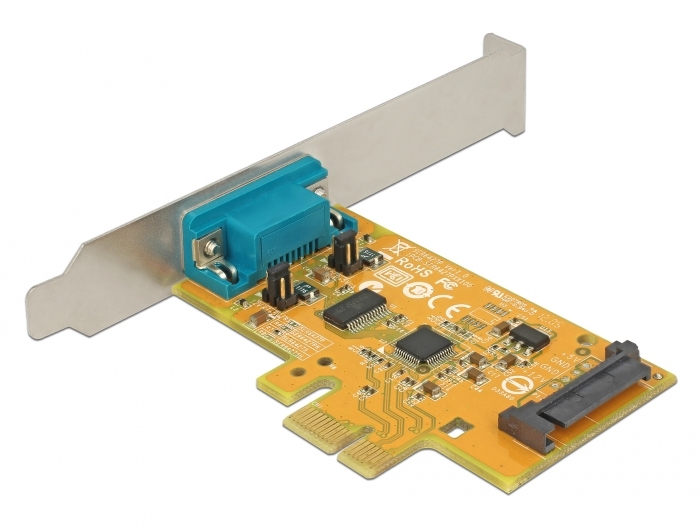

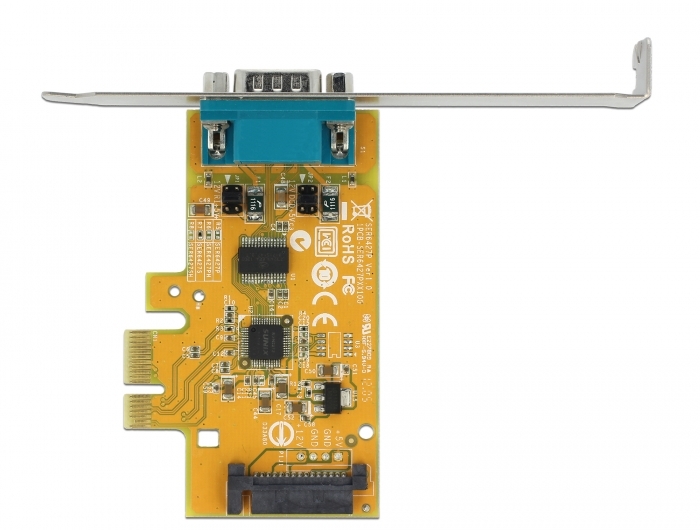

The PCI Express card by Delock expands a PC by one external serial port. Connected devices can be optionally supplied with a voltage of 5 V or 12 V. By using the included low profile bracket, the PCI Express card can be also installed into a Mini-PC.

System requirements:
• Linux Kernel 2.6.x or above
• Windows Server 2008 R2/Server 2012/Server 2012 R2/Server 2016
• Windows 7/7-64/8.1/8.1-64/10/10-64
• PC with one free PCI Express slot
• Power supply with a free SATA power connector
Specification:
• Connectors:
  external:
  1 x serial RS-232 DB9 male
  internal:
  1 x PCI Express x1, V2.0
  1 x SATA 15 pin plug
• Chipset: SUN2212
• Data transfer rate up to 115.2 Kbps
• FIFO: 128 byte
• Compatible with 16C950 UART
• ±15 kV ESD protection for all serial signals meets IEC1000-4-2 standard
• Signals: DCD/12V/5V, TxD, RxD, RTS, CTS, DTR, DSR, GND, RI/12V/5V
• 5 V or 12 V can be set individually through the jumper (pin 1 or 9)
• Windows WHQL certified
Package content:
• PCI Express card

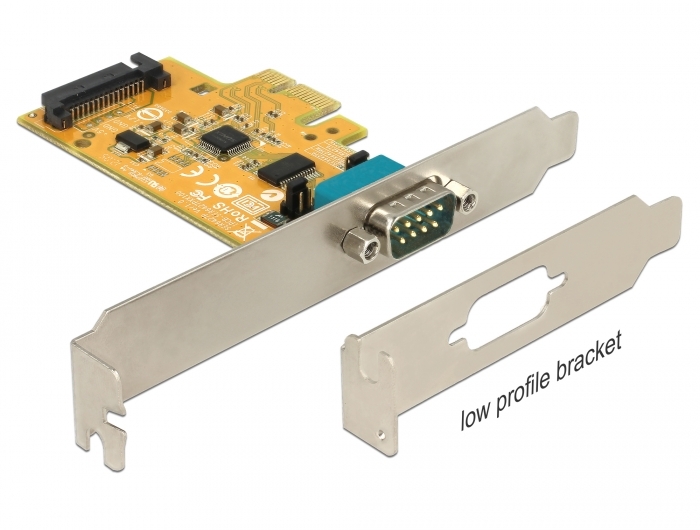

• Low profile bracket
• Driver CD
• User manual
Data sheet:
http://www.delock.de/produkt/90293/pdf.html?sprache=en
