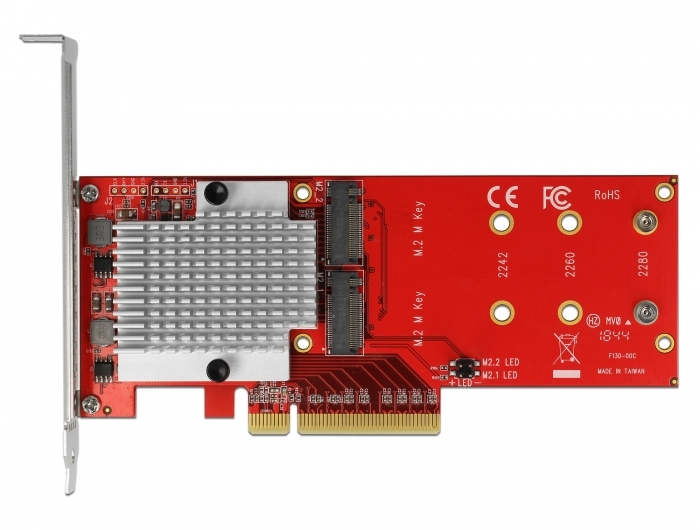

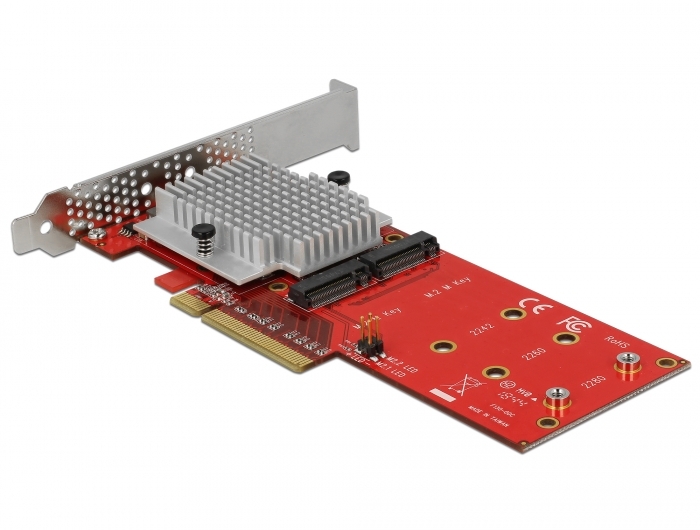

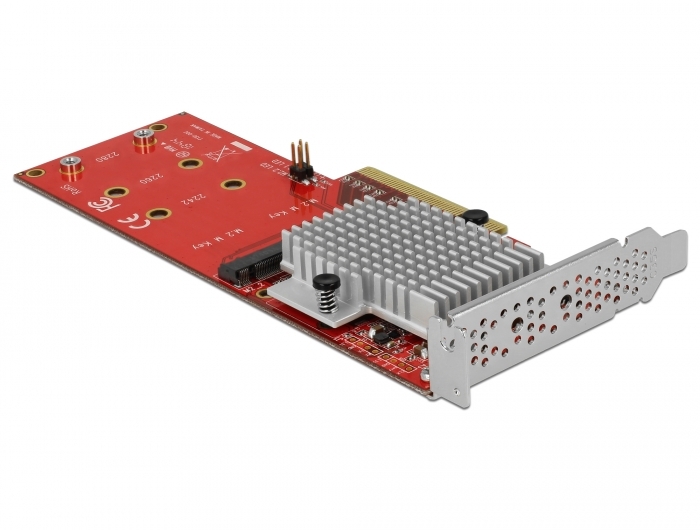

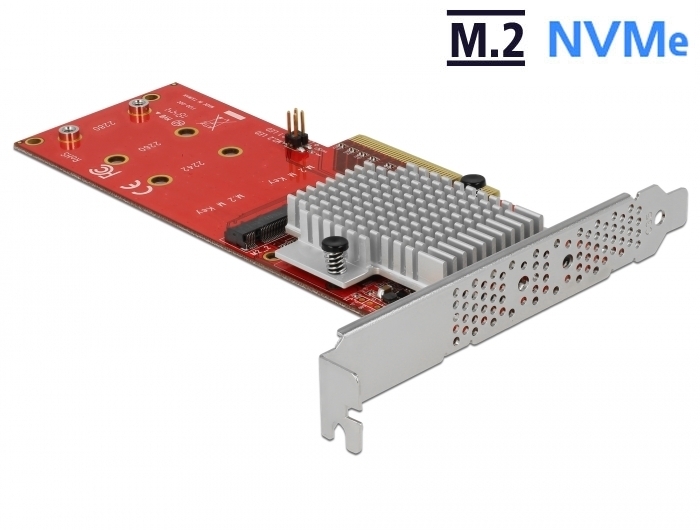

Delock PCI Express x8 Card to 2 x internal NVMe M.2 Key M - Low Profile Form Factor

DELOCK

90305

New

This PCI Express card by Delock expands the PC by two M.2 slots. Up to two M.2 SSDs in format 2280, 2260, 2242 and 2230 can be connected.

Delock M.2 PCIe card for gaming and server
Especially in the gaming and server range, this card is ideally suited to expand the existing system by two fast M.2 NVMe slots. Both slots can be used simultaneously.
System requirements:
• Linux Kernel 3.17 or above
• Windows 7/7-64/8.1/8.1-64/10/10-64
• PC with one free PCI Express x8 / x16 / x32 slot
Specification:
• Connectors:
  internal:
  2 x 67 pin M.2 key M slot
  1 x PCI Express x8, V3.0
  2 x 2 pin pin header for LED
• Chipset: Asmedia ASM2824
• Interface: PCIe
• Supports M.2 modules in format 2280, 2260, 2242 and 2230 with key M
  or key B+M based on PCIe
• Maximum height of the components on the module: 1.5 mm,
  application of double-sided assembled modules supported
• Data transfer rate up to 32 Gbps
• Supports NVM Express (NVMe)
• Bootable
Package content:
• PCI Express card

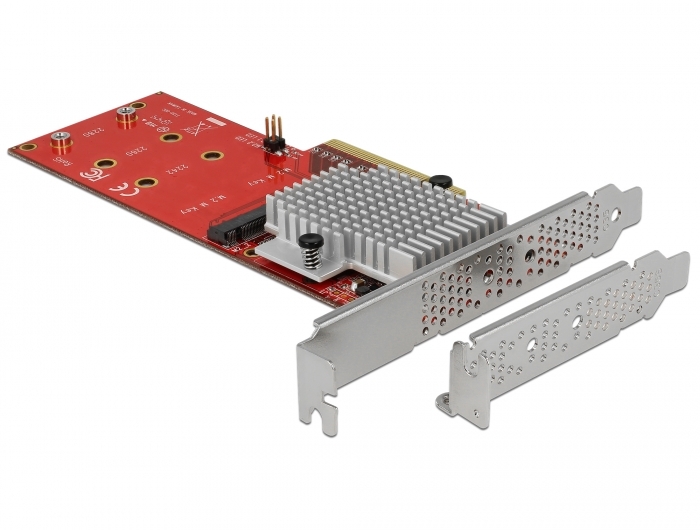

• Low profile bracket
• M.2 mounting material
• User manual
Data sheet:
http://www.delock.de/produkt/90305/pdf.html?sprache=en
