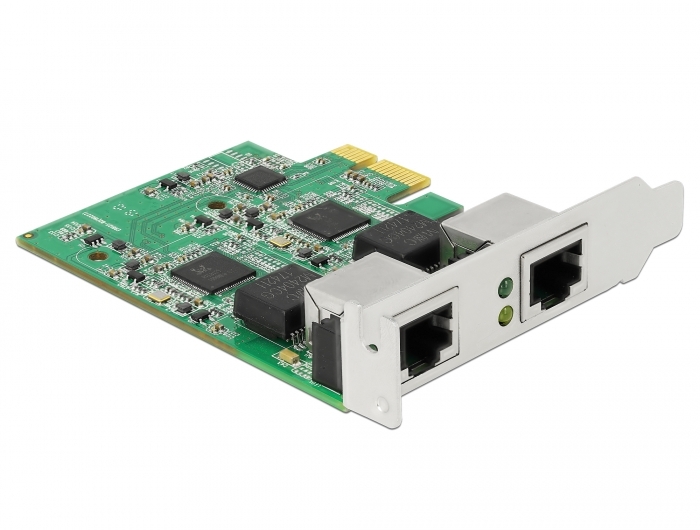

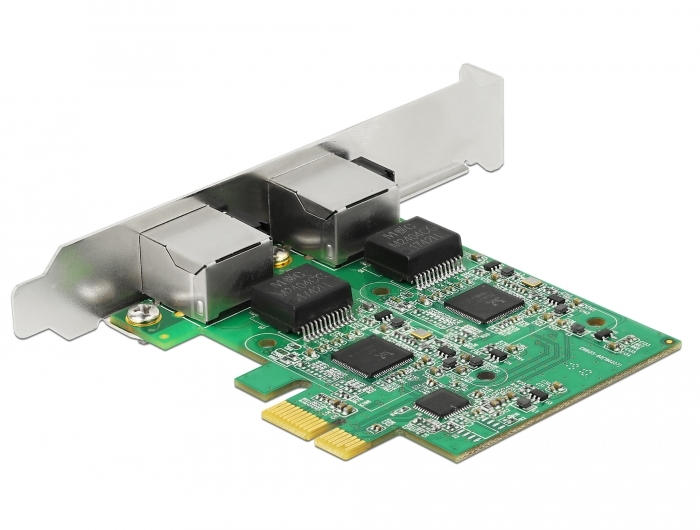

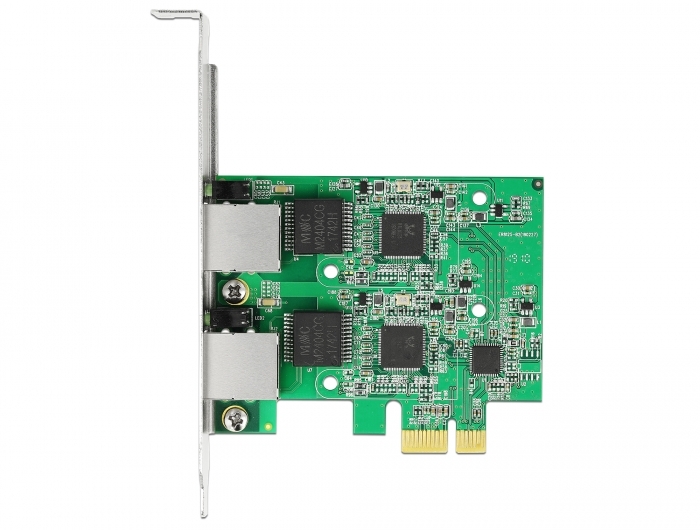

Delock PCI Express x1 Card to 2 x 2.5 Gigabit LAN

DELOCK

89532

New

The PCI Express card by Delock offers two network ports with a data transfer rate up to 2500 Mbps.

NBASE-T for higher speed
Modern services and new technologies require higher bandwidths. NBASE-T technology enables speeds of 1 Gbps and 2.5 Gbps with conventional networking cables. The best possible transmission rate is set automatically.
System requirements:
• Linux Kernel 3.2 or above
• Windows 7/7-64/8.1/8.1-64/10/10-64
• PC with one free PCI Express slot
Specification:
• Connectors:
  external: 2 x 2.5 Gigabit LAN RJ45 jack
  internal: 1 x PCI Express x1, V2.1
• Chipset: Realtek RTL8125
• Data transfer rate:
  Fast Ethernet up to 100 Mbps (Half/Full Duplex)
  Gigabit Ethernet up to 1000 Mbps (Half/Full Duplex)
  NBASE-T with up to 2.5 Gbps (Half/Full Duplex)
  PCI Express x1 up to 2.5 Gbps
• Compatible with IEEE 802.3, IEEE 802.3u, IEEE 802.3ab
• Supports Wake On LAN (WOL)
• Supports IEEE 802.1P layer 2 priority encoding
• Supports IEEE 802.3x full duplex flow control
• Supports IEEE 802.1Q Virtual LAN (VLAN)
• Supports 9k Jumbo Frames
• Supports PXE
• LED indicator for power and activity
Package content:
• PCI Express card

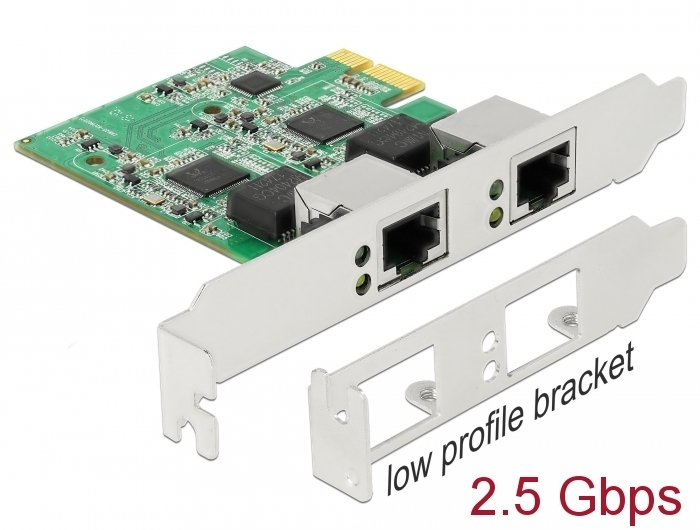

• Low profile bracket
• Driver CD
• User manual
Data sheet:
http://www.delock.de/produkt/89532/pdf.html?sprache=en
