Delock 4 port SATA and 1 slot M.2 Key B PCI Express x4 Card - Low Profile Form Factor

Reference 90396

Condition: New

More info

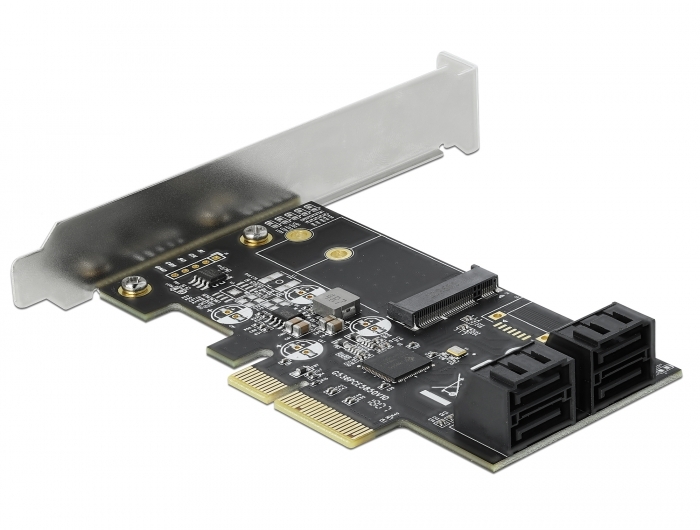

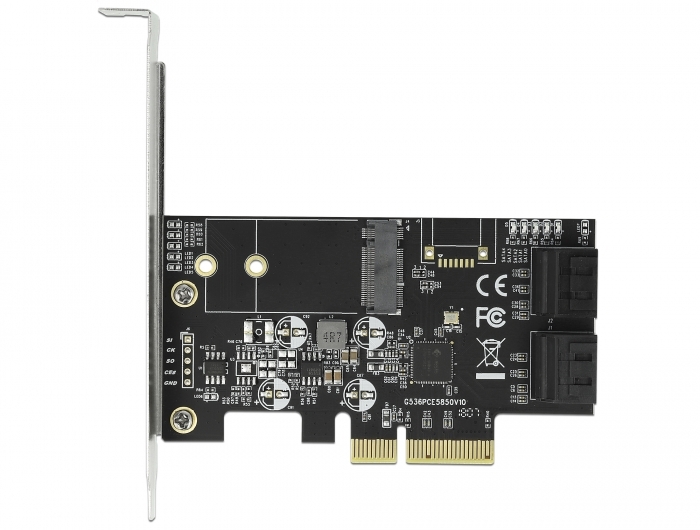

The PCI Express card by Delock expands a PC by four internal SATA ports and one M.2 slot. Different devices such as SSDs, hard drives, DVD-drives etc. and one M.2 module in 2242 or 2230 format can be connected to the card.

System requirements:
• Linux Kernel 3.3 or above
• Windows 7/7-64/8.1/8.1-64/10/10-64
• PC with one free PCI Express x4 / x8 / x16 / x32 slot

Specification:
• Connectors:
  internal:
  4 x SATA 6 Gb/s 7 pin plug
  1 x 67 pin M.2 key B slot
  1 x PCI Express x4, V3.0
• Chipset: JMicron JMB585
• 5 x LED indicator
• Interface: SATA
• Supports M.2 modules in format 2242 and 2230 with key B or key B+M based
on SATA
• Maximum height of the components on the module: 1.5 mm,
application of double-sided assembled modules supported
• Supports Native Command Queuing (NCQ)
• Supports S.M.A.R.T.
• Supports TRIM
• Supports DevSleep
• Hot Swap
• Bootable

Package content:
• PCI Express card

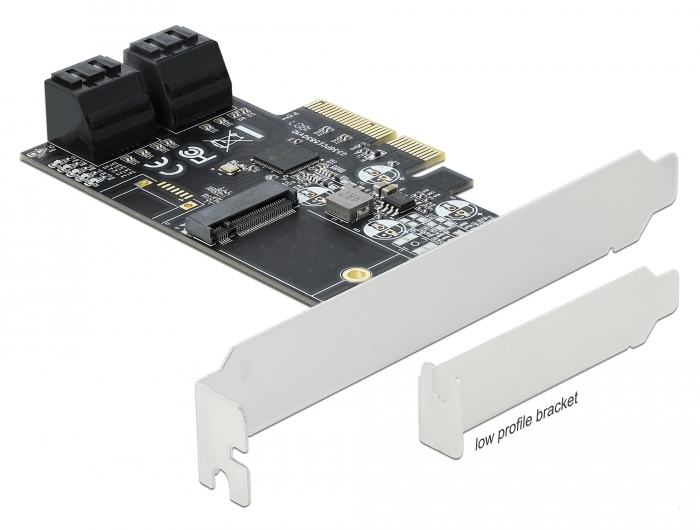

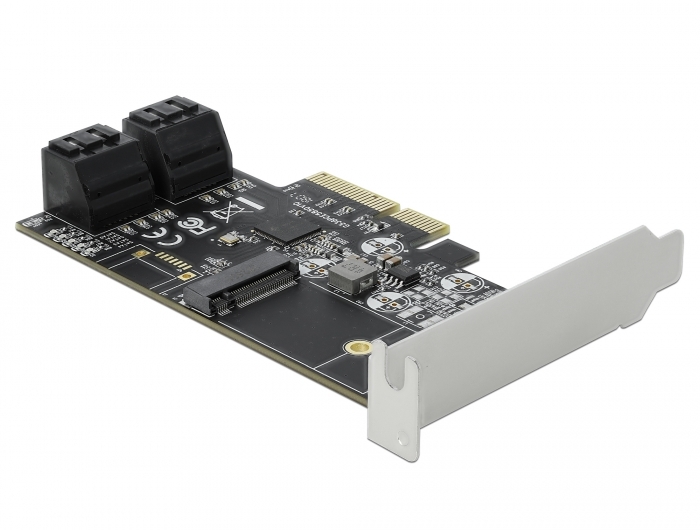

• Low profile bracket

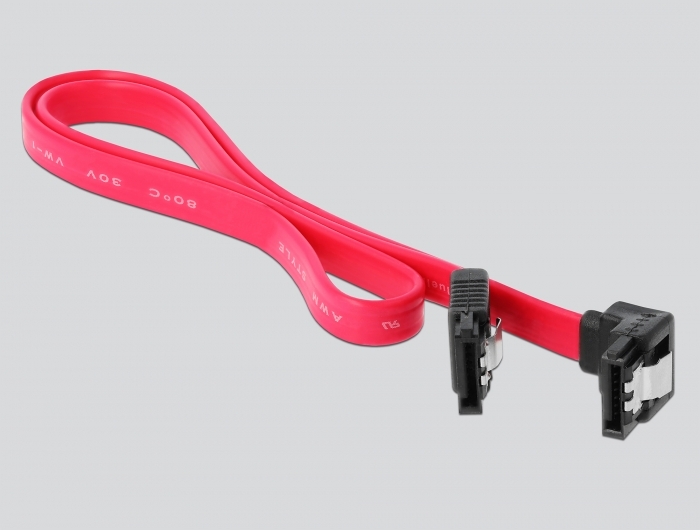

• 4 x SATA cable, length ca. 50 cm
• M.2 mounting material
• User manual
