CONCEPTRONIC PCI Express Card PCIe x1 to 4 PCIe x1 Expan.Kit

Reference EMRICK10G

Condition: New

More info

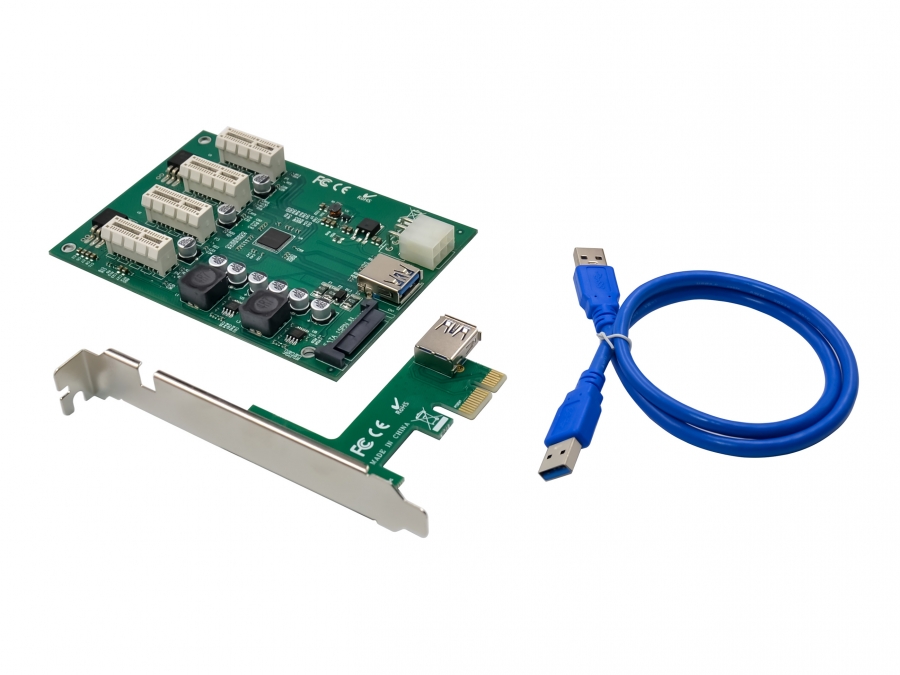

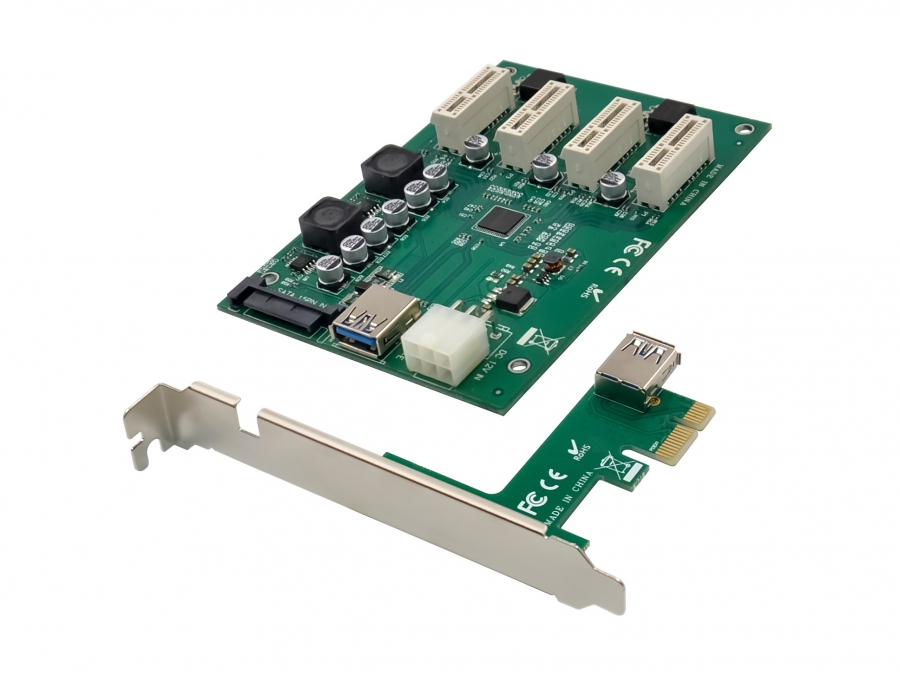

The PCIe x1 to 4-Port PCIe x1 Riser Card is a PCIe packet switch host controller, with 1 PCIe x1 Gen 2 upstream port to 4 PCIe x1 Gen 2 downstream ports. It can be extended to 4 PCIe x1 Ports for connecting different PCIe devices, enabling users to extend PCIe ports on a motherboard or embedded system.

Host interface	PCIe
Output interface	PCIe
Expansion card standard	PCI 2.0
PCI Express slots quantity	4
SATA power connector type	SATA 6-pin, SATA 15-pin
Internal	Y
Product colour	Green
Purpose	PC
Country of origin	China
Plug and Play	Y
Windows operating systems supported	Windows 7 Ultimate x64, Windows 10, Windows 7 x64, Windows 10 Education, Windows 8, Windows 10 Education x64, Windows 7, Windows 8 Enterprise, Windows 10 Enterprise, Windows 7 Enterprise, Windows 8 Enterprise x64, Windows XP, Windows 10 Enterprise x64, Windows 7 Enterprise x64, Windows 8 Pro, Windows XP Home, Windows 10 Home, Windows 7 Home Basic, Windows 8 Pro x64, Windows XP Home x64, Windows 10 Home x64, Windows 7 Home Basic x64, Windows 8 x64, Windows XP Professional, Windows 10 IOT Core, Windows 7 Home Premium, Windows 8.1, Windows XP Professional x64, Windows 10 IoT Enterprise, Windows 7 Home Premium x64, Windows 8.1 Enterprise, Windows 10 Pro, Windows 7 Professional, Windows 8.1 Enterprise x64, Windows 10 Pro x64, Windows 7 Professional x64, Windows 8.1 Pro, Windows 10 x64, Windows 7 Starter, Windows 8.1 Pro x64, Windows 7 Starter x64, Windows 8.1 x64, Windows 7 Ultimate
Linux operating systems supported	Y
Width	120 mm
Depth	83 mm
Height	20 mm
Weight	92 g
Cables included	USB Type-A
Quick installation guide	Y
Package width	125 mm
Package depth	175 mm
Package height	30 mm
Package weight	180 g
Package type	Box
Harmonized System (HS) code	84733020
Products per master (outer) case	30 pc(s)
Master (outer) case width	340 mm
Master (outer) case length	205 mm
Master (outer) case height	405 mm
Master (outer) case gross weight	5.85 kg
