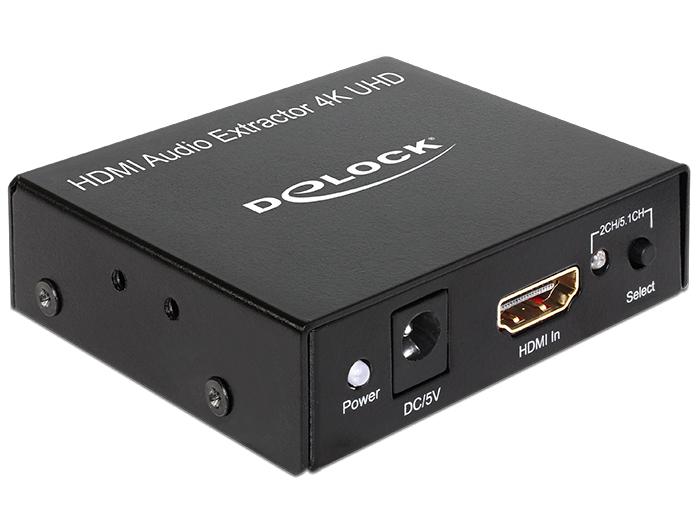

Delock HDMI Stereo 5.1 Channel Audio Extractor 4K

DELOCK

62692

New

This adapter can be used to extract the audio signal from an HDMI transmission. While the image signal is displayed on a TV or monitor, the audio signal can be sent digital (S/PDIF) and analog (stereo) to other devices such as headphones or a surround receiver.

More details

Description:
This adapter can be used to extract the audio signal from an HDMI transmission. While the image signal is displayed on a TV or monitor, the audio signal can be sent digital (S/PDIF) and analog (stereo) to other devices such as headphones or a surround receiver.

Specification:
• Connector:
Input:
1 x HDMI A 19 pin female
1 x DC Power 5 V
Output:
1 x HDMI A 19 pin female
1 x 3.5 mm 3 pin Stereo jack female (Stereo Audio)
1 x TOSLINK (S/PDIF)
1 x RCA (S/PDIF)
• Switchable between stereo (2.0) and surround (5.1)
• Compatible with High Speed HDMI, 3D and HDCP 1.4
• Output with HDMI repeater function
• Resolution up to 3840 x 2160 @ 30 Hz (8-bit), 1920 x 1080 @ 60 Hz (12-bit)
• Video bandwidth up to 300 MHz / 3 Gb/s per channel, 9 Gb/s max.
• Supports all common 2.0 and 5.1 audio formats: LPCM, Dolby Digital, DTS Audio
• Supported sample rates: 16 / 20 / 24 bit, 32 / 44.1 / 48 / 88.2 / 96 / 176.4 / 192 kHz
(depending on the system and the connected devices)
• CEC and HDMI audio routed to the output (pass-through)
• Audio DAC CS4344, 24 bit / 192 kHz

Robust metal housing
• Power consumption: max. 2.5 W
• Dimensions (LxWxH): 71 x 61 x 21 mm
• Length: power cable USB Type-A > DC ca. 50 cm

System requirements:
• A free HDMI A female port

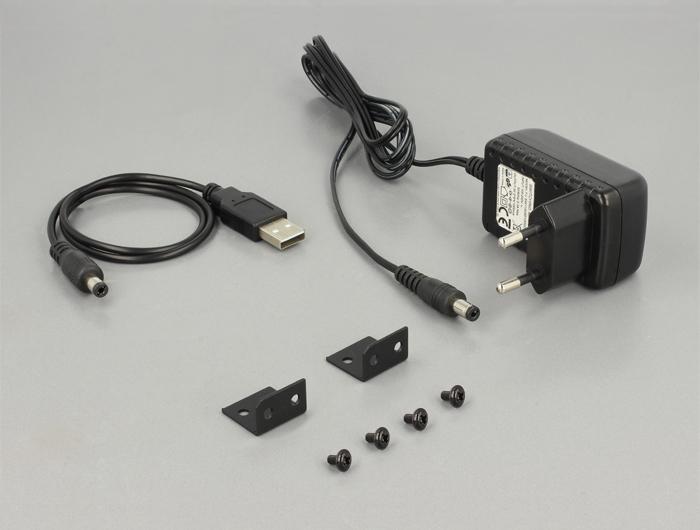

Package content:
• HDMI Audio Extractor
• Mounting brackets and screws
• USB power cable
• Power supply 5 V
• User manual
