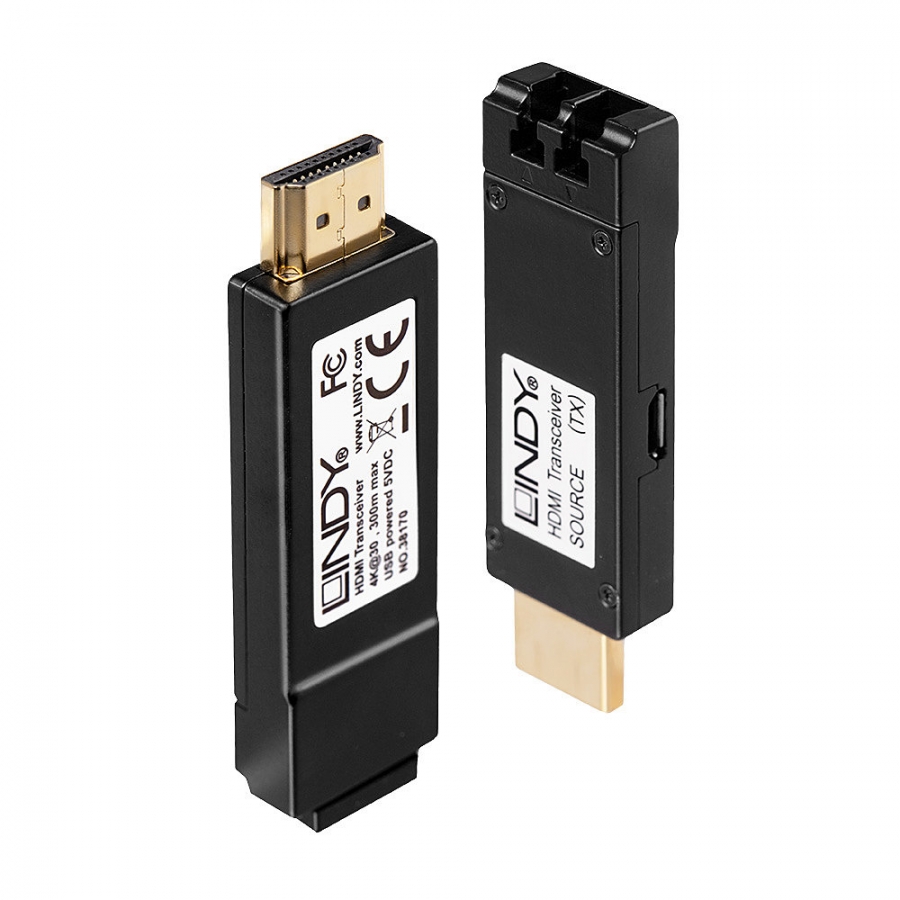

Lindy 300m Fibre Optic HDMI 10.2G Extender

Lindy

LIN38170

New

Specifications

  • AV Interface: HDMI
  • Interface Standard: HDMI 2.0
  • Supported Bandwidth: 10.2 Gbps
  • Maximum Distance: 300m (984.24ft)
  • Maximum Resolution: 3840x2160@60Hz 4:2:0 8bit
  • HDCP Support: Pass-through
  • EDID Pass Through: Pass-through
  • Supported Audio: Pass-through
  • Separate Audio Ports: -
  • IR Support: -
  • CEC Support: -
  • Serial Interface: -
  • Transmission Protocol: -
  • Transmission Medium: 1 x Duplex LC (50/125µm)
  • Laser Class (only for Fibre): 1
  • Wavelength (only for Fibre):850nm
  • Chipset: -
  • Special Features: Auto Laser Disabling Function



Connectors

  • Transmitter Input: HDMI (Male)
  • Transmitter Output: Duplex LC
  • Receiver Input: Duplex LC
  • Receiver Ouput: HDMI (Male)
  • Bidirectonal Ports: -
  • Power: USB Micro-B



Physical Properties

  • Dimensions WxDxH: 75x20x12mm (2.95x0.79x0.47in) per unit
  • Housing Material: Metal
  • Net Weight: 0.048kg (0.11lb) per unit
  • Operating Temperature: 0°C - 60°C (32°F - 140°F)
  • Storage Temperature: -10°C - 70°C (14°F - 158°F)
  • Humidity: 10 - 75% RH (non-condensing)
  • Power Requirements: -
  • Colour: Black



Miscellaneous

  • Packaging Type: Carton Box
  • Packaging Dimensions: 160x220x50mm (6.3x8.66x1.97in)
  • Gross Weight: 0.2kg (0.44lb)
  • Warranty (Years): 2
  • Certificated: CE, FCC, RoHS & REACH



Package Contents

  • Transmitter unit
  • Receiver unit
  • 2 x USB A/Micro-B cable
  • Lindy manual



Purchasing Information

  • No.: 38170
  • EAN: 4002888381703
