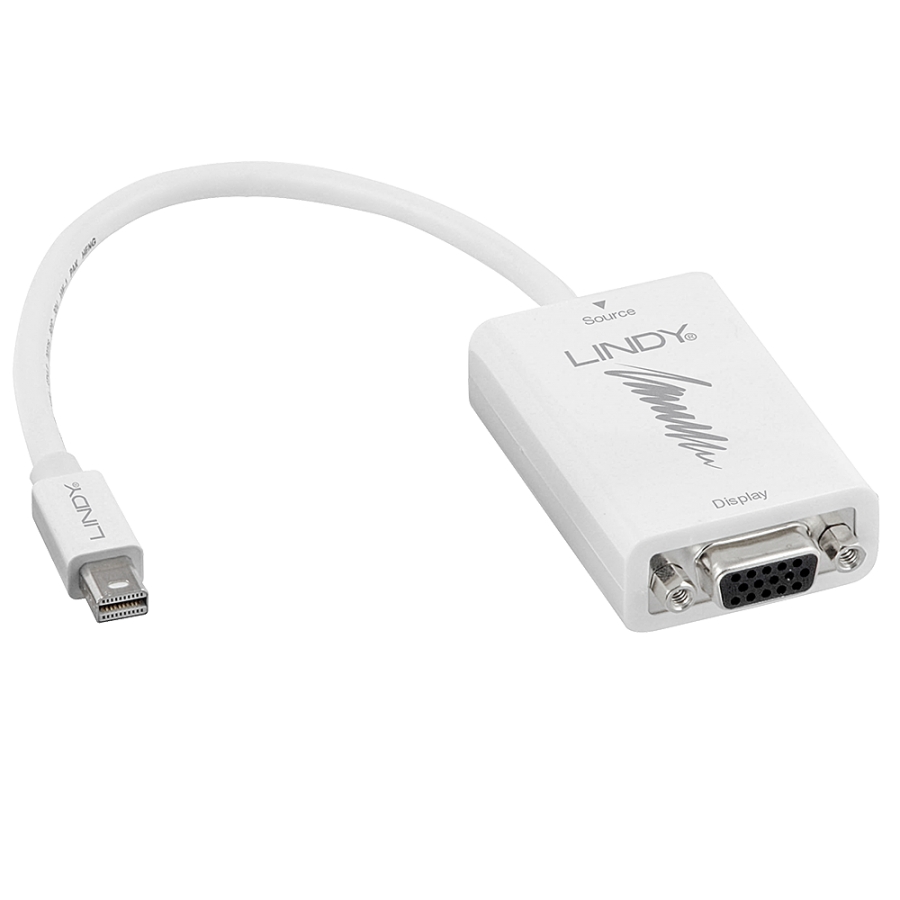

Mini DisplayPort to VGA Active Converter

LIN41015

New

Specifications

  • AV Interface: DisplayPort to VGA
  • Interface Standard: DisplayPort 1.1, VGA
  • Supported Bandwidth: 180MHz
  • Maximum Input Resolution: 1920x1200@60Hz
  • Maximum  Output Resolution: 1920x1200@60Hz
  • Chipset: ANX9833
  • HDCP Support: -
  • Supported Audio: -
  • Separate Audio Ports: -
  • Special Features: -



Connectors

  • Input: Mini DisplayPort Male
  • Output: VGA Female



Physical properties

  • Dimensions (approx.) WxDxH:
    • 38x61x17mm (1.5x2.4x0.67in) / Housing
    • 10.9x24.5x8mm (0.43x0.96x0.31in)
  • Cable Length: 200mm (7.87in)
  • Housing Material: ABS
  • Jacket Material: PVC
  • Jacket Diameter: 5mm (0.2in)
  • Minimum Bend Radius: 50mm (1.97in)
  • Net Weight: 0.027kg (0.06lb)
  • Operating Temperature: 0°C - 70°C (32°F - 158°F)
  • Storage Temperature: -20°C - 70°C (-4°F - 158°F)
  • Humidity: 10 - 90% RH (non-condensing)
  • Colour: White



Miscellaneous

  • Packaging Type: Polybag
  • Packaging Dimensions: 160x160x20mm (6.3x6.3x0.79in)
  • Gross Weight: 0.035kg (0.08lb)
  • Warranty (Years): 2
  • Certificated: CE, FCC, RoHS & REACH



Package Contents

  • Mini DisplayPort to VGA Active Converter



Purchasing Information

  • No.: 41015
  • EAN: 4002888410151
