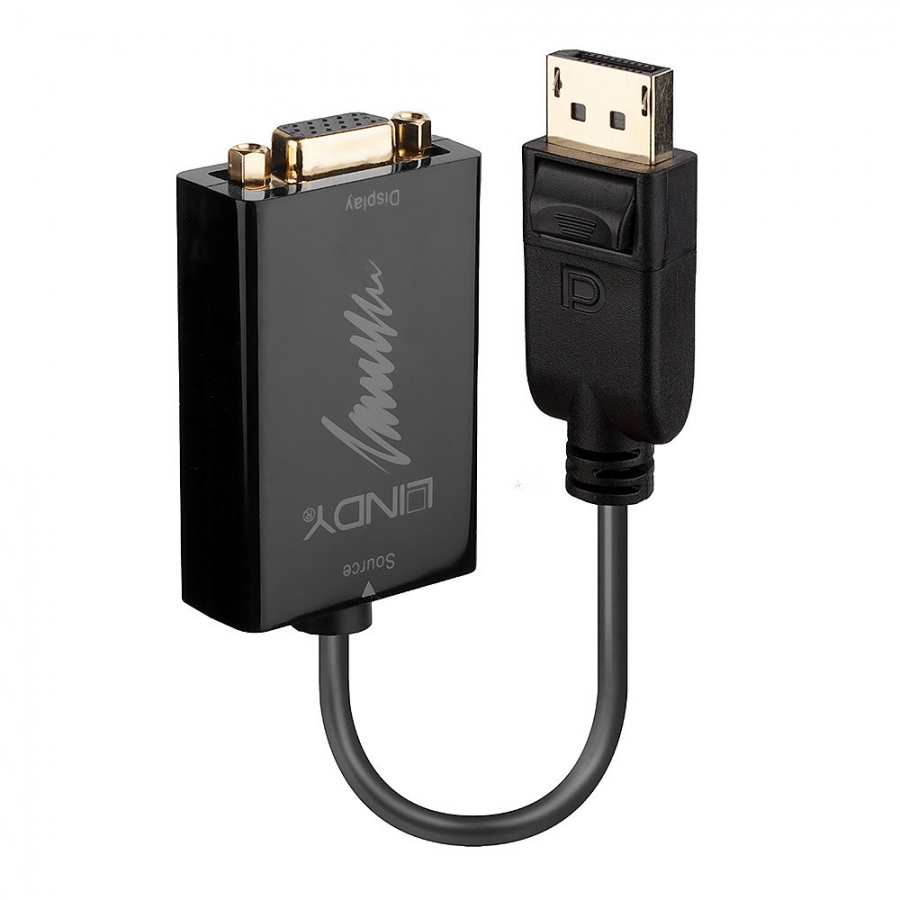

DisplayPort to VGA Active Converter

LIN41006

New

Specifications

  • AV Interface: DisplayPort to VGA
  • Interface Standard: DisplayPort 1.1, VGA
  • Supported Bandwidth: 180MHz
  • Maximum Input Resolution: 1920x1080@60Hz
  • Maximum  Output Resolution: 1920x1080@60Hz
  • Chipset: ANX9833
  • HDCP Support: -
  • Supported Audio: -
  • Separate Audio Ports: -
  • Special Features: -



Connectors

  • Input: DisplayPort Male
  • Output: VGA Female



Physical properties

  • Dimensions (approx.) WxDxH:
    • 38x61x17mm (1.5x2.4x0.67in)
    • 20x36x11mm (0.79x1.42x0.43in)/DP
  • Cable Length: 150mm (5.91in)
  • Housing Material: TPE
  • Jacket Material: PVC
  • Jacket Diameter: 6.5mm (0.26in)
  • Minimum Bend Radius: 70mm (2.76in)
  • Net Weight: 0.045kg (0.1lb)
  • Operating Temperature: -20°C - 80°C (-4°F - 176°F)
  • Storage Temperature: -20°C - 70°C (-4°F - 158°F)
  • Humidity: 20 - 90% RH (non-condensing)
  • Colour: Black



Miscellaneous

  • Packaging Type: Polybag
  • Packaging Dimensions: 160x160x20mm (6.3x6.3x0.79in)
  • Gross Weight: 0.049kg (0.011lb)
  • Warranty (Years): 2
  • Certificated: CE, FCC, RoHS & REACH



Package Contents

  • DisplayPort to VGA Active Converter



Purchasing Information

  • No.: 41006
  • EAN: 4002888410069
