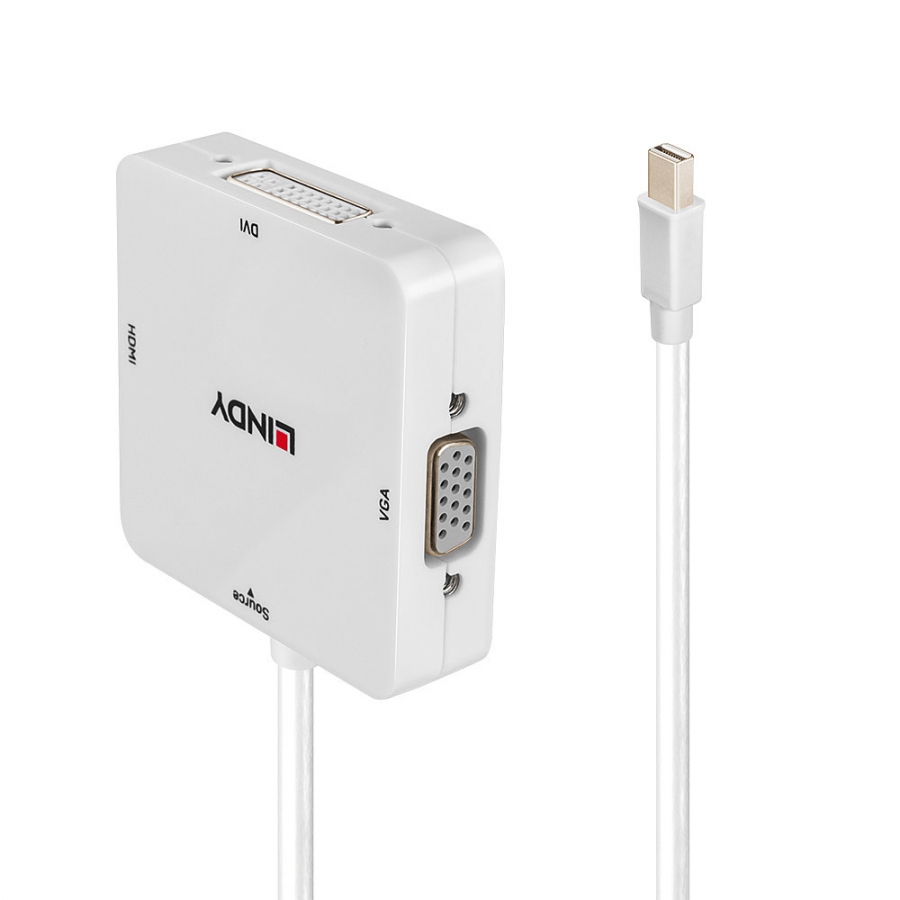

Mini DisplayPort 1.2 to HDMI 18G, DVI & VGA Active Converter

LIN38297

New

Specifications

  • AV Interface: Mini DisplayPort to HDMI, VGA, DVI
  • Interface Standard: DisplayPort 1.2, HDMI 2.0, DVI-D, VGA
  • Supported Bandwidth: 21.6Gbps
  • Maximum Input Resolution: 3840x2160@60Hz 4:4:4 8bit
  • Maximum  Output Resolution:
    • VGA: 1920x1200@60Hz
    • HDMI: 3840x2160@60Hz 4:4:4 8bit
    • DVI: 1920x1200@60Hz
  • Chipset:
    • HDMI & DVI: PS176
    • VGA: ANX9833
    • MiniDP: NX3DV642
  • HDCP Support: HDCP 2.2
  • Supported Audio: Pass-through
  • Separate Audio Ports: -
  • Special Features: -



Connectors

  • Input: Mini DisplayPort Male
  • Output:
    • HDMI Type A Female
    • VGA Female
    • DVI-D Female
  •

Physical properties

  • Dimensions (approx.) WxDxH: 60x16.5x60mm (2.36x0.65x2.36in)
  • Cable Length: 150mm (5.91in)
  • Housing Material: Plastic
  • Jacket Material: PVC
  • Jacket Diameter: 0.5mm (0.02in)
  • Minimum Bend Radius: 45mm (1.77in)
  • Net Weight: 0.053kg (0.12lb)
  • Operating Temperature: 0°C - 70°C (32°F - 158°F)
  • Storage Temperature: 0°C - 70°C (32°F - 158°F)
  • Humidity: 10 - 85% RH (non-condensing)
  • Colour: White



Miscellaneous

  • Packaging Type: Polybag
  • Packaging Dimensions: 160x160x20mm (6.3x6.3x0.79in)
  • Gross Weight: 0.059kg (0.13lb)
  • Warranty (Years): 2
  • Certificated: CE, FCC, RoHS & REACH



Package Contents

  • Mini DisplayPort 1.2 to HDMI 2.0 18G, DVI & VGA Active Converter



Purchasing Information

  • No.: 38297
  • EAN: 4002888382977
