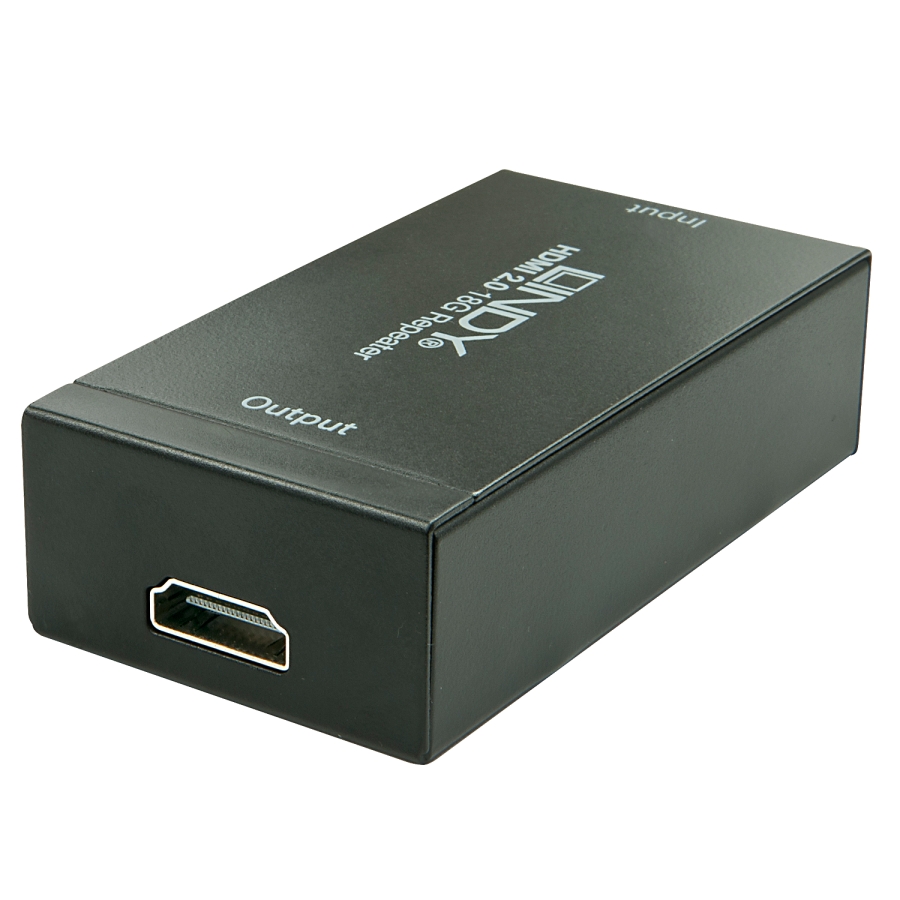

40m HDMI 18G Repeater Premium

LIN38210

New

Specifications

  • AV Interface: HDMI
  • Interface Standard: HDMI 2.0
  • Supported Bandwidth: 18 Gbps
  • Maximum Distance:
    • 40m (131.23ft) - 3840x2160@60Hz 4:2:0 8bit
    • 25m (82.02ft) - 3840x2160@60Hz 4:2:0 12bit
    • 20m (65.62ft) - 3840x2160@60Hz 4:4:4 8bit
  • Maximum Input Distance:
    • 20m (65.62ft) - 3840x2160@60Hz 4:2:0 8bit
    • 15m (49.21ft) - 3840x2160@60Hz 4:2:0 12bit
    • 10m (32.81ft) - 3840x2160@60Hz 4:4:4 8bit
  • Maximum Output Distance:
    • 20m (65.62ft) - 3840x2160@60Hz 4:2:0 8bit
    • 10m (32.81ft) - 3840x2160@60Hz 4:2:0 12bit
    • 10m (32.81ft) - 3840x2160@60Hz 4:4:4 8bit
  • Maximum Resolution: 3840x2160@60Hz 4:4:4 8bit
  • HDCP Support: Pass-through
  • Transmission Medium: 2 x HDMI Cable
  • Special Features: Cascadable Up To 10 layers



Connectors

  • Input: HDMI (Female)
  • Output: HDMI (Female)
  • Power: 3.5/1.35mm DC Socket



Physical Properties

  • Dimensions WxHxD: 43x81x23mm (1.69x3.19x0.91in)
  • Housing Material: Metal
  • Nett Weight: 0.095kg (0.21lb)
  • Operating Temperature: 0°C - 45°C (32°F - 113°F)
  • Storage Temperature: -20°C - 60°C (-4°F - 140°F)
  • Humidity: 20 - 90% RH (non-condensing)
  • Power Requirements: -
  • Colour: Black



Miscellaneous

  • Packaging Type: Carton Box
  • Packaging Dimensions: 140x120x40mm (5.51x4.72x1.57in)
  • Gross Weight: 0.17kg (0.37lb)
  • Warranty (Years): 2
  • Certificated: CE, FCC, REACH & RoHS



Package Contents

  • HDMI Repeater
  • Lindy Manual



Purchasing Information

  • No. 38210
  • EAN: 4002888382106
