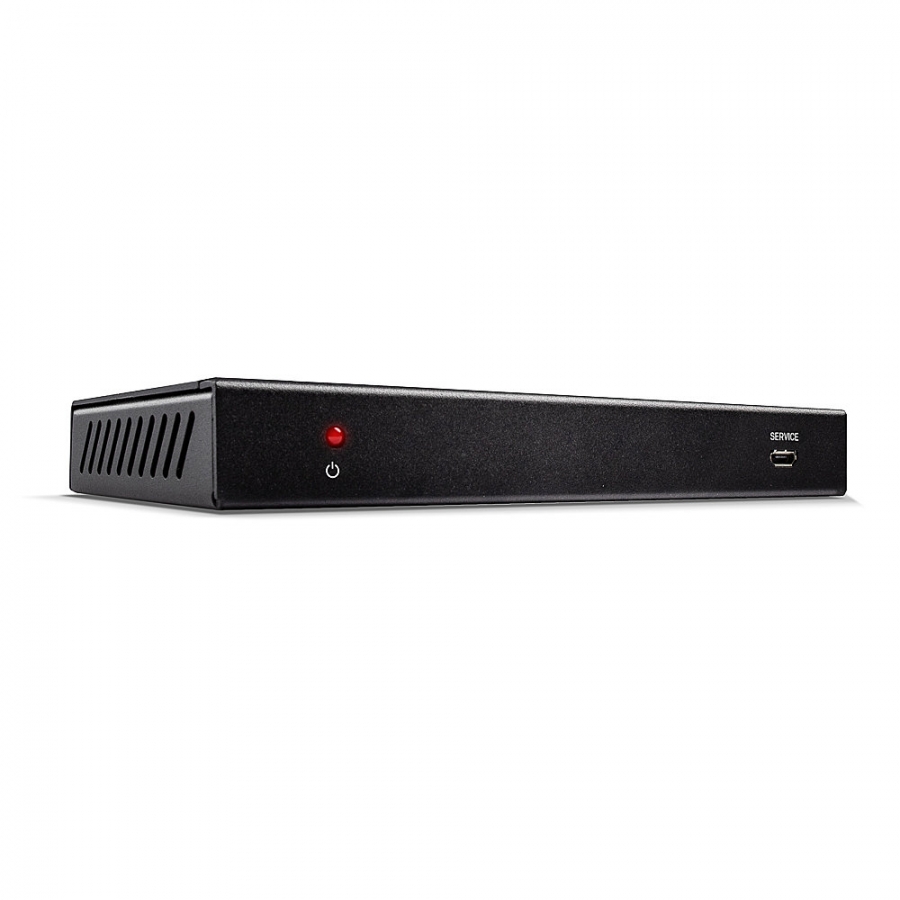

100m Cat.6 HDMI 18G, IR & RS-232 HDBaseT Extender with PoC, Receiver

LIN38207

New

Specifications

  • AV Interface: HDMI
  • Interface Standard: 2.0
  • Supported Bandwidth: 18Gbps
  • Maximum Distance:

70m (229.66ft) - 3840x2160@60Hz 4:4:4 8bit

100m (328.08ft) - 3840x2160@30Hz 4:4:4 8bit

150m (492.12ft) - 1280x720@60Hz

  • Maximum Resolution: 3840x2160@60Hz 4:4:4 8bit
  • HDCP Support: 2.2
  • EDID Pass Through: Pass-through
  • Supported Audio:

HDMI Audio Pass-through

2CH Analogue

  • Separate Audio Ports: -
  • IR Support: 20KHz - 60KHz
  • CEC Support: Pass-through
  • Serial Interface: RS-232 (Bi-directional)
  • Transmission Protocol: HDBaseT
  • Transmission Medium: 1 x Cat.6
  • Laser Class (only for Fibre): -
  • Wavelength (only for Fibre): -
  • Chipset: VS100
  • Special Features:

2CH Analogue Audio Extraction

PoC (Power over Cat.6)



Connectors

  • Transmitter Input: -
  • Transmitter Output: -
  • Receiver Input: RJ-45 (Female)
  • Receiver Output:

HDMI Type A (Female)

3.5mm (Female)

  • Bi-directional Ports: RS-232 (Female)
  • Power : 5.5/2.1mm



Physical Properties

  • Dimensions (approx.) WxDxH: 140x65x18mm (5.51x2.56x0.71in)
  • Housing Material: Metal
  • Net Weight: 0.478kg (1.05lb)
  • Operating Temperature : 0°C - 40°C (32°F - 104°F)
  • Storage Temperature: -20°C - 60°C (-4°F - 140°F)
  • Humidity: 20 - 90% RH (non-condensing)
  • Power Requirements: 24VDC 1A
  • Colour: Black



Miscellaneous

  • Packaging Type: Carton Box
  • Packaging Dimensions: 220x115x75mm (8.66x4.53x2.95in)
  • Gross Weight: 0.644kg (1.42lb)
  • Warranty (Years): 2
  • Certificated: CE, FCC, RoHS, REACH & California Proposition 65



Package Content

  • HDBaseT HDMI Extender, Receiver
  • IR Emitter Cable, 1.5m
  • IR Receiver Cable, 1.5m
  • 2 x Mounting Ears
  • 3-Pin Terminal Block
  • Multi-country Power Supply (UK, EU, US & AUS)
  • Lindy Manual



Purchasing Information

  • No.: 38207
  • EAN: 4002888382076
