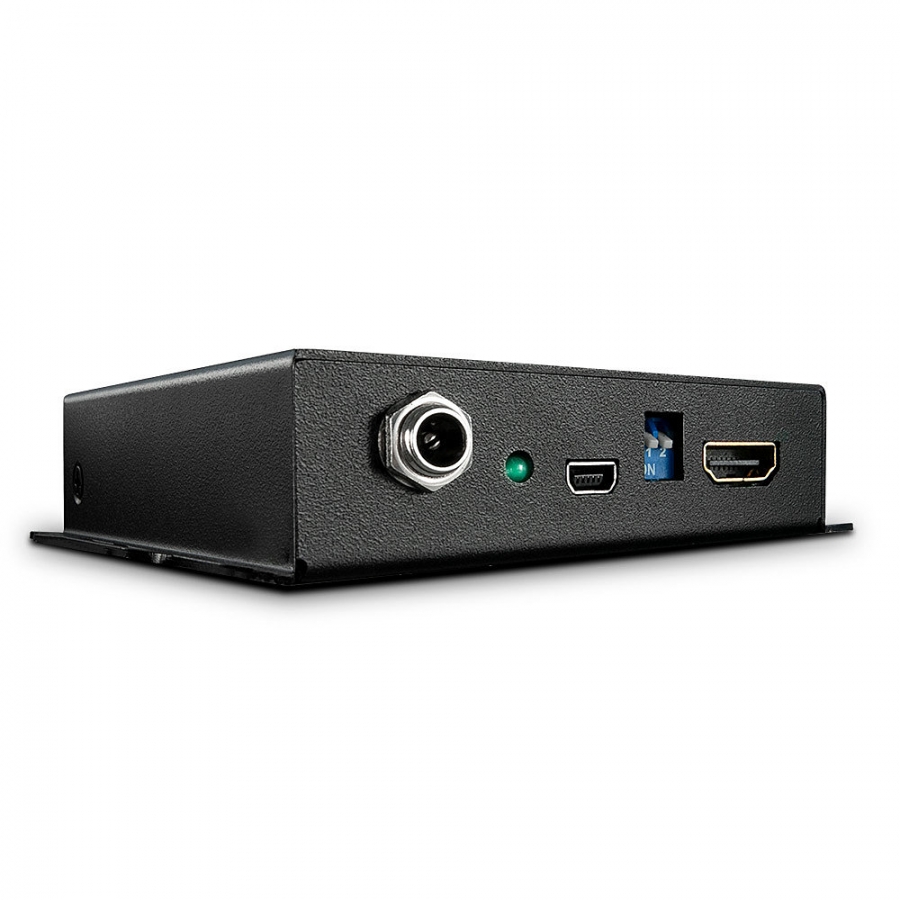

HDMI 18G to DisplayPort 1.2 Converter

LIN38180

New

Specification

  • AV Interface: HDMI to DisplayPort
  • Interface Standard: HDMI 2.0, DisplayPort 1.2
  • Supported Bandwidth: 18Gbps
  • Maximum Input Resolution: 4096x2160@60Hz 4:4:4 8bit
  • Maximum Output Resolution: 4096x2160@60Hz 4:4:4 8bit
  • HDCP Support: 2.2
  • Supported Audio: PCM, Dolby, DTS
  • Separate Audio Ports: SPDIF (RCA), 3.5mm Stereo
  • Special Features: -



Connectors

  • Input: 1 x HDMI Female
  • Output: 1 x DisplayPort Female, 1 x 3.5mm Stereo Audio, 1 x SPDIF (RCA)
  • Power: 5.5/2.1mm



Physical Properties

  • Dimensions (approx.) WxDxH: 112x92x23mm (4.41x3.62x0.91in)
  • Housing Material: Metal
  • Net Weight: 0.626kg (1.38lb)
  • Operating Temperature: 0°C - 40°C (32°F - 104°F)
  • Storage Temperature: -20°C - 60°C (-4°F - 140°F)
  • Humidity: 20-90% RH (non-condensing)
  • Power Requirements: 5VDC 2A
  • Colour: Black



Miscellaneous

  • Packaging Type: Carton
  • Packaging Dimensions: 198x137x74mm (7.8x5.39x2.91in)
  • Gross Weight: 0.23kg (0.51lb)
  • Warranty (Years): 2
  • Certificated: CE, FCC, REACH & RoHS



Package Contents

  • HDMI 2.0 to DisplayPort 1.2 Converter
  • Multi-Country Power Supply  (US, UK, EU & AUS)
  • Lindy Manual



Purchasing Information

  • No.: 38180
  • EAN: 4002888381802
