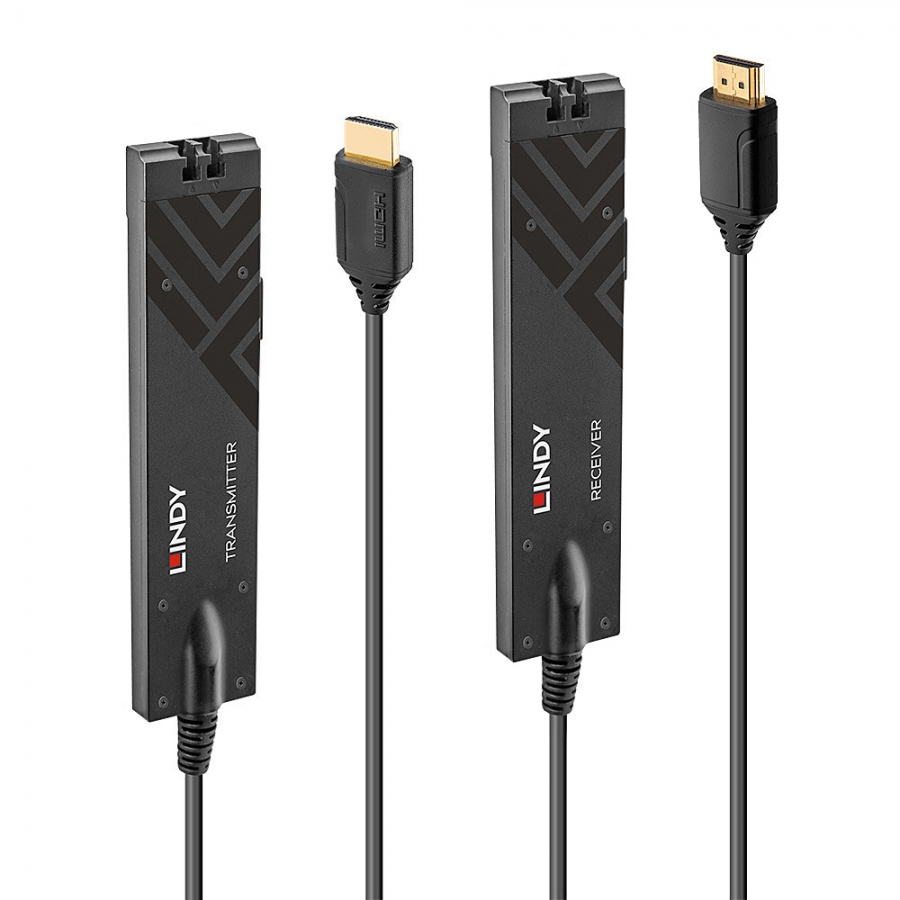

300m Fibre Optic HDMI 18G Extender

LIN38179

New

Specifications

  • AV Interface: HDMI
  • Interface Standard: HDMI 2.0
  • Supported Bandwidth: 18Gbps
  • Maximum Distance: 300m (984.24ft)
  • Maximum Resolution: 3840x2160@60Hz 4:4:4 8bit
  • HDCP Support: Pass-through
  • EDID Pass Through: Pass-through
  • Supported Audio: Pass-through
  • Transmission Medium: 1 x Duplex LC (50/125µm)
  • Laser Class (only for Fibre): 1
  • Wavelength (only for Fibre): 850nm
  • Special Features: Auto Laser Disabling Function



Connectors

  • Transmitter Input: HDMI Type A (Male)
  • Transmitter Output: Duplex LC
  • Receiver Input: Duplex LC
  • Receiver Ouput: HDMI Type A (Male)
  • Power: USB Micro-B



Physical Properties

  • Dimensions (approx.) WxDxH: 30x124.5x11.3mm (1.18x4.9x0.44in) per unit
  • Housing Material: Metal
  • Net Weight: 0.145kg (0.32lb) per unit
  • Operating Temperature: 0°C - 50°C (32°F - 122°F)
  • Storage Temperature: 10°C - 70°C (14°F - 158°F)
  • Humidity: 0-85% RH (non-condensing)
  • Power Requirements: 5V DC 1A
  • Colour: Black



Miscellaneous

  • Packaging Type: Carton box
  • Packaging Dimensions: 220x50x160mm (8.66x1.97x6.3in)
  • Gross Weight: 0.56kg (1.23lb)
  • Warranty (Years): 2
  • Certificated: CE, FCC, RoHS, REACH & California Proposition 65



Package Content

  • Transmitter unit
  • Receiver unit
  • 2 x USB A/Micro-B cable, 1m
  • Lindy manual



Purchasing Information

  • No.: 38179
  • EAN: 4002888381796
