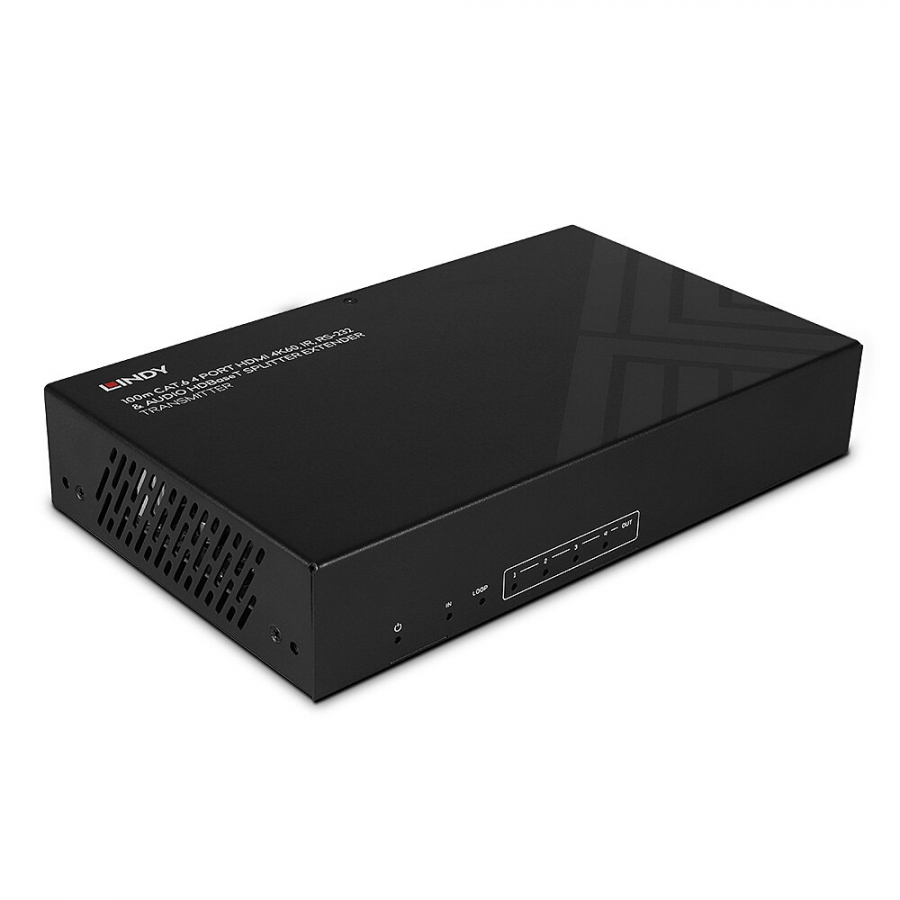

Lindy 100m Cat.6 4 Port HDMI 4K60 HDBaseT Splitter Extender

Lindy

LIN38355

New

Specifications



  • AV Interface: HDMI
  • Interfaces Standard: HDMI 2.0
  • Supported Bandwidth: 18Gbps
  • Maximum Distance:
    • 70m (229.66ft) - 3840x2160@60Hz 4:4:4 8bit
    • 100m (328.08ft) - 1920x1080@60Hz
  • Maximum Resolution: 3840x2160@60Hz 4:4:4 8bit
  • HDCP Support: 2.2
  • EDID Pass Through: Presets, Cloning
  • Supported Audio:
    • HDMI Audio Pass-through
    • Digital Audio up to 5.1Ch
    • Analog Audio up to 2.0Ch
  • Separate Audio Ports: Coax and balanced phoenix
  • IR Support: 20 - 60KHz
  • Serial Interface: RS-232
  • Transmission Protocol: HDBaseT
  • Transmission Medium: 4 x Cat.6
  • Laser Class (only for Fibre): -
  • Wavelength (only for Fibre): -
  • Special Features: PoC (Power over Cable), HDMI Loop Out port



Connectors



  • Transmitter Input: HDMI (Female), 3.5mm IR (Female)
  • Transmitter Output: HDMI (Female), Coax RCA (Female), L/R Audio 5-pin phoenix, 3.5mm IR (Female), 4 x RJ45 HDBaseT (Female)
  • Bidirectonal Ports: RS-232 3-Pin Terminal Block
  • Power: 5.5/2.1mm



Physical Properties



  • Dimensions: 220x130x40mm (8.66x5.12x1.47in)
  • Housing Material: Metal
  • Net Weight: 1.395kg (3.08lb)
  • Operating Temperature: 0°C- 40°C (32°F - 104°F)
  • Storage Temperature: -20°C- 60°C (-4°F - 140°F)
  • Humidity: 20- 90% RH (Non-condensing)
  • Power Requirements: 24VDC 2.7A
  • Colour: Black



Miscellaneous



  • Packaging Type: Carton Box
  • Packaging Dimensions: 285x274x100mm (11.22x10.79x3.94in)
  • Gross Weight: 1.894kg (4.18lb)
  • Warranty: 2
  • Product Compliance: CE, UKCA, FCC, RoHS, REACH & California Proposition 65



Package Contents



  • 4 Port HDBaseT Extender Splitter - Transmitter
  • IR Emitter Cable, 1.5m
  • IR Receiver Cable, 1.5m
  • 2 x Mounting Ears & 4 x Screws
  • 3-Pin Terminal Block
  • 5-Pin Terminal Block
  • IEC Power Supply
  • 4 x Power cables (EU, UK, US & AUS), 1.5m
  • Lindy Manual



Purchasing Information



  • No.: 38355
  • EAN: 4002888383554
