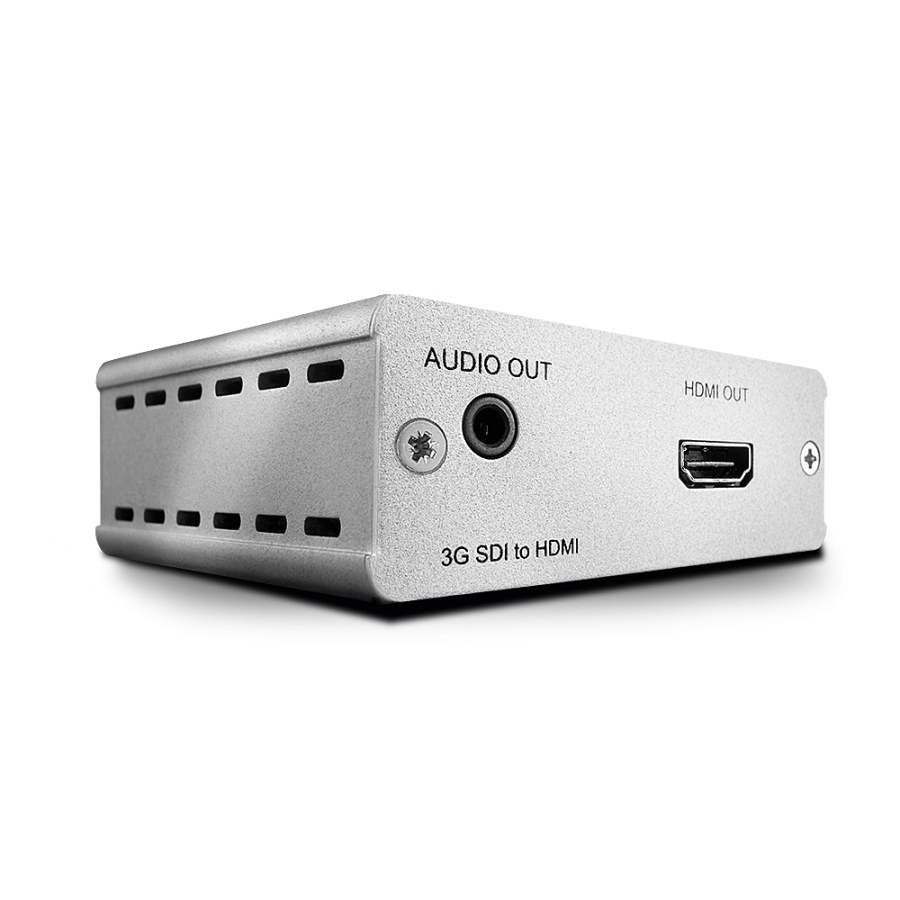

Lindy 3G SDI to HDMI Converter/Extender

Lindy

LIN38198

New

 Specification

  • AV Interface: 3G SDI to HDMI
  • Interface Standard: HDMI 1.3
  • Supported Bandwidth: 6.75 Gbps
  • Maximum Input Resolution: 1920x1080@60Hz
  • Maximum Output Resolution: 1920x1080@60Hz
  • HDCP Support: -
  • Supported Audio: PCM, Analog L/R
  • Separate Audio Ports: HDMI, 3.5mm Stereo
  • Special Features: -



Connectors

  • Input: 1 x BNC (Female)
  • Output: 1 x HDMI (Female), 1 x 3.5mm Stereo Audio (Female)
  • Power: 5.5/2.5mm DC socket

Physical Properties

  • Dimensions WxDxH: 80x30x120mm (3.15x1.18x4.72in)
  • Housing Material: Metal
  • Net Weight: 0.035kg (0.08lb)
  • Operating Temperature: 0°C - 40°C (32°F - 140°F)
  • Storage Temperature: -20°C - 60°C (-4°F - 158°F)
  • Humidity: 20 - 90% RH (non-condensing)
  • Power Requirements: 5VDC 2.6A
  • Colour: Silver



Miscellaneous

  • Packaging Type: Carton Box
  • Packaging Dimensions: 210x115x60mm (8.27x4.53x2.36in)
  • Gross Weight: 0.5kg (1.1lb)
  • Warranty (Years): 2
  • Certificated: CE, FCC, REACH & RoHS



Package Contents



  • 3G SDI to HDMI Converter
  • Multi-Country Power Supply (EU, UK, US & AUS)
  • Lindy Manual



Purchasing Information

  • No.: 38198
  • EAN: 4002888381987
