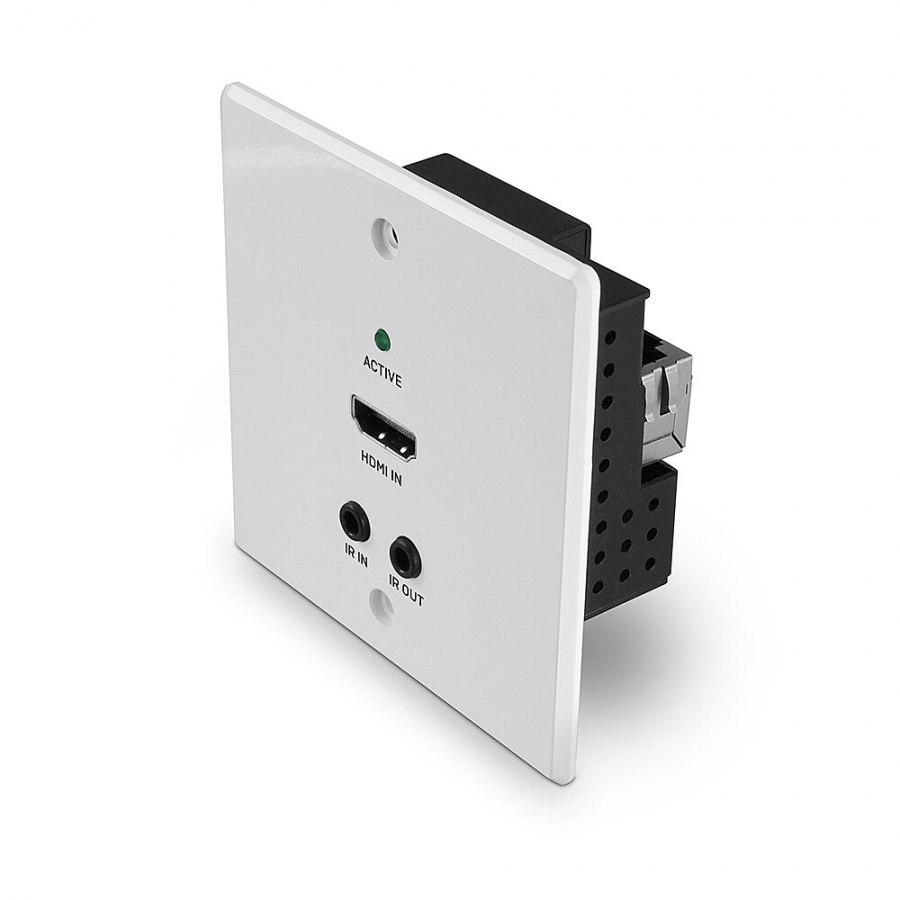

Lindy 70m Cat.6 HDMI 4K60, IR & RS-232 HDBaseT EU Wall Plate Extender, Transmitter

Lindy

LIN38348

New

Specifications

  • AV Interface: HDMI
  • Interface Standard: HDMI 2.0
  • Supported Bandwidth: 18Gbps
  • Maximum Distance:
    • 40m (131.23ft) - 3840x2160@60Hz 4:4:4 8bit
    • 70m (229.66ft) - 1920x1080@60Hz
  • Maximum Resolution: 3840x2160@60Hz 4:4:4 8bit
  • HDCP Support: 2.2
  • EDID Pass Through: Pass Through
  • Supported Audio: Pass Through
  • Separate Audio Ports: -
  • IR Support: 20 - 60KHz
  • CEC Support: -
  • Serial Interface: RS-232 Pass Through
  • Transmission Protocol: HDBaseT
  • Transmission Medium: Cat.6
  • Laser Class (only for Fibre): -
  • Wavelength (only for Fibre): -
  • Chipset: VS010
  • Special Features: Bi-directional IR, PoC (Power over Cable) with On/Off switch



Connectors

  • Transmitter Input: HDMI Type A (Female), 3.5mm IR (Female)
  • Transmitter Output: RJ-45 (Female), 3.5mm IR (Female)
  • Receiver Input: -
  • Receiver Output: -
  • Bi-directional Ports: RS-232 3-Pin Terminal Block
  • Power: 2-Pin Terminal Block DC connector



Physical Properties

  • Dimensions (approx.) WxDxH: 80x38.05x80mm (3.15x1.5x3.15in)
  • Housing Material: Metal
  • Net Weight: 0.39kg (0.86lb)
  • Operating Temperature: 0°C - 40°C (32°F - 104°F)
  • Storage Temperature: -20°C - 60°C (-4°F - 140°F)
  • Humidity: 20 - 90% RH (non-condensing)
  • Power Requirements: 24VDC 1A
  • Colour: White plate



Miscellaneous

  • Packaging Type: Carton Box
  • Packaging Dimensions: 152x95x133mm (5.98x3.74x5.24in)
  • Gross Weight: 0.54kg (1.19lb)
  • Warranty (Years): 2
  • Product Compliance: CE, UKCA, FCC, RoHS, REACH & California Proposition 65



Package Contents

  • HDMI Transmitter
  • Multi-country Power Supply (UK, EU, US & AUS)
  • IR Emitter Cable, 1.5m
  • IR Receiver Cable, 1.5m
  • 3-Pin Terminal Block
  • 2-Pin Terminal Block
  • Lindy Manual



Purchasing Information

  • No.: 38348
  • EAN: 4002888383486
