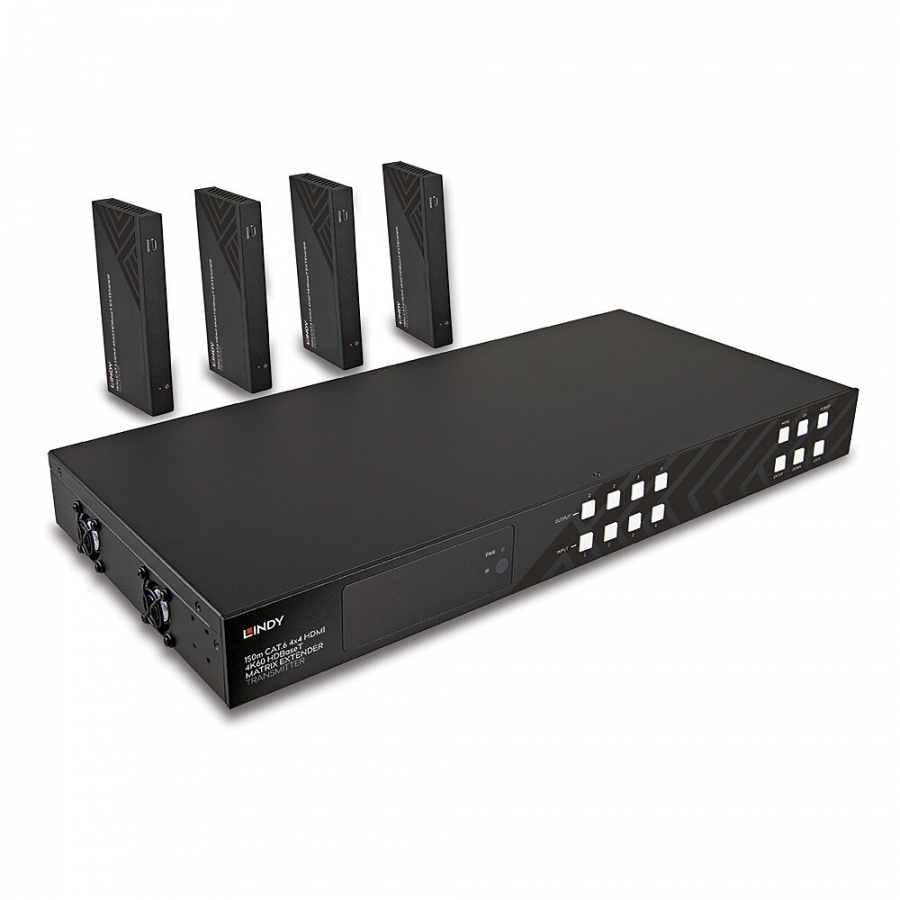

Lindy 150m Cat.6 4x4 HDMI 4K60 HDBaseT Matrix Extender

Lindy

LIN38345

New

Specifications

  • AV Interface: HDMI
  • Interfaces Standard: HDMI 2.0
  • Supported Bandwidth: 18Gbps
  • Maximum Distance:
    120m (393.7ft) - 3840x2160@60Hz 4:4:4 8bit
    150m (492.12ft) - 1920x1080@60Hz
  • Maximum Resolution: 3840x2160@60Hz 4:4:4 8bit
  • HDCP Support: 2.2
  • EDID Pass Through: Presets, Cloning
  • Supported Audio:
    HDMI Audio Pass-through
    Digital Audio up to 5.1Ch
    Analog Audio up to 2.0Ch
  • Separate Audio Ports: Coax and balanced analog
  • IR Support: 20 - 60KHz
  • Serial Interface: RS-232
  • Transmission Protocol: HDBaseT
  • Transmission Medium: 4 x Cat.6
  • Laser Class (only for Fibre): -
  • Wavelength (only for Fibre): -
  • Special Features: PoC (Power over Cable), HDMI Loop Out ports, 4K to 1080p downscaler



Connectors

  • Transmitter Input: 4 x HDMI (Female), 5 x 3.5mm IR (Female)
  • Transmitter Output: 4 x HDMI (Female), 4 x Coax RCA (Female), 4 x L/R Audio 5-pin phoenix, 5 x 3.5mm IR (Female), 4 x RJ45 HDBaseT (Female)
  • Transmitter Bidirectonal Ports: RS-232 9 pin (Female), RJ45 (Female)
  • Transmitter Power: IEC C14
  • Receiver Input: 3.5mm IR (Female), RJ45 HDBaseT (Female)
  • Receiver Output: HDMI (Female), 3.5mm Audio (Female), 3.5mm IR (Female)
  • Receiver Bidirectonal Ports: RS-232 3 pin phoenix
  • Receiver Power: 5.5/2.1mm



Physical Properties

  • Dimensions:
    Matrix: 440x200x45mm (17.32x7.87x1.77in)
    Receivers: 140x65x18mm (5.51x2.56x0.71in)
  • Housing Material: Metal
  • Net Weight: 4.3kg (9.48lb)
  • Operating Temperature: 0°C- 40°C (32°F - 104°F)
  • Storage Temperature: -20°C- 60°C (-4°F - 140°F)
  • Humidity: 20- 90% RH (Non-condensing)
  • Power Requirements: 60W
  • Colour: Black



Miscellaneous

  • Packaging Type: Carton Box
  • Packaging Dimensions: 510x401x98mm (20.08x15.79x3.86in)
  • Gross Weight: 5.78kg (5.16lb)
  • Warranty: 2
  • Product Compliance: CE, UKCA, FCC, RoHS, REACH & California Proposition 65



Package Contents

  • 4x4 HDBaseT Extender Matrix - Transmitter
  • 4 x HDBaseT Receivers
  • 5 x IR Emitter Cable, 1.5m
  • 5 x IR Receiver Cable, 1.5m
  • 10 x Mounting Ears & Screws
  • 4 x 3-Pin Terminal Block
  • 4 x 5-Pin Terminal Block
  • RS-232 Male to Female cable, 1.5m
  • 4 x mains cables (EU, UK, US & AUS), 1.5m
  • Lindy Manual



Purchasing Information

  • No.: 38345
  • EAN: 4002888383455
