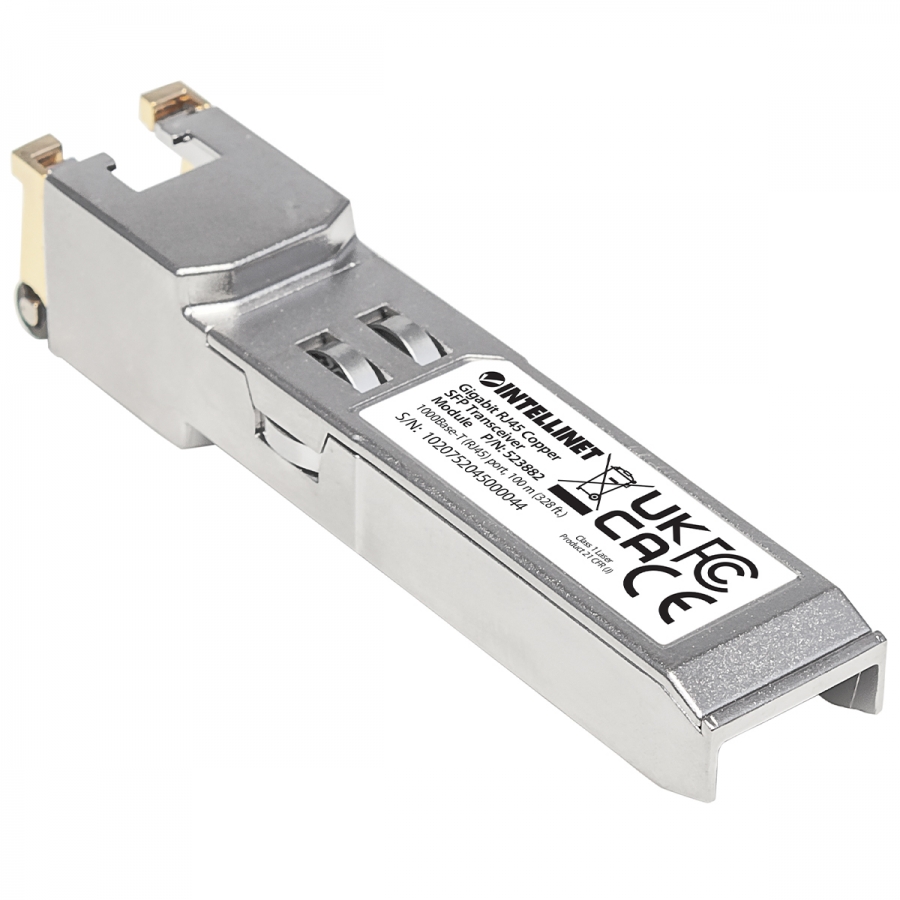

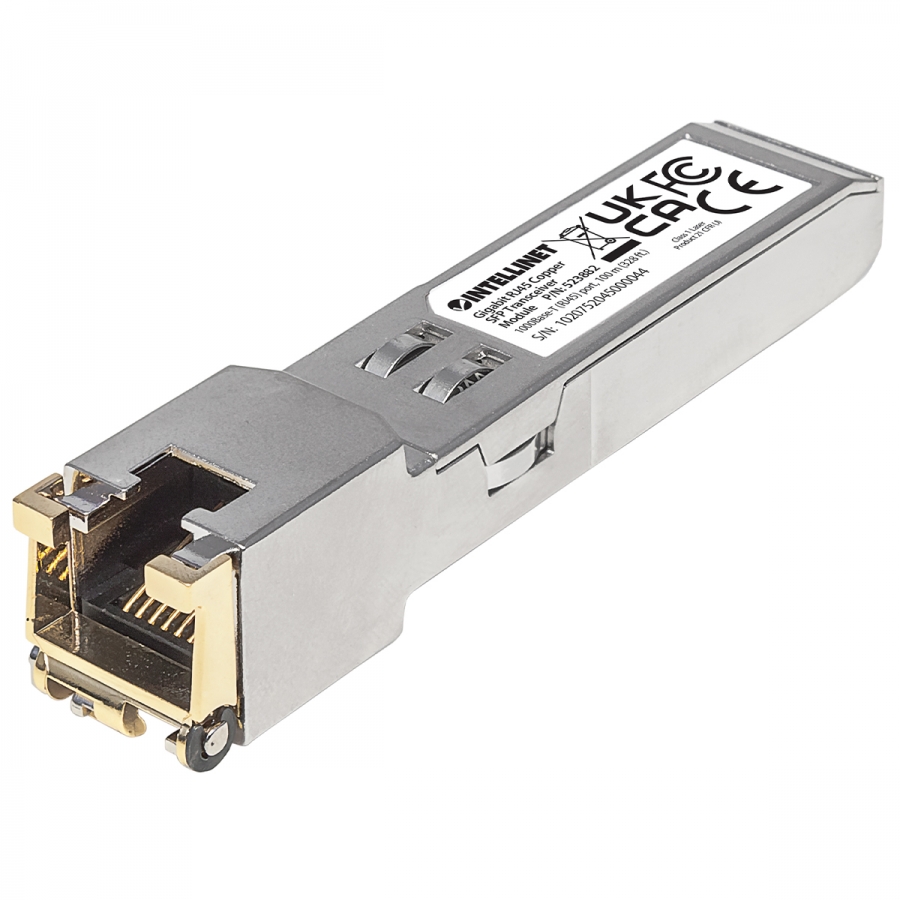

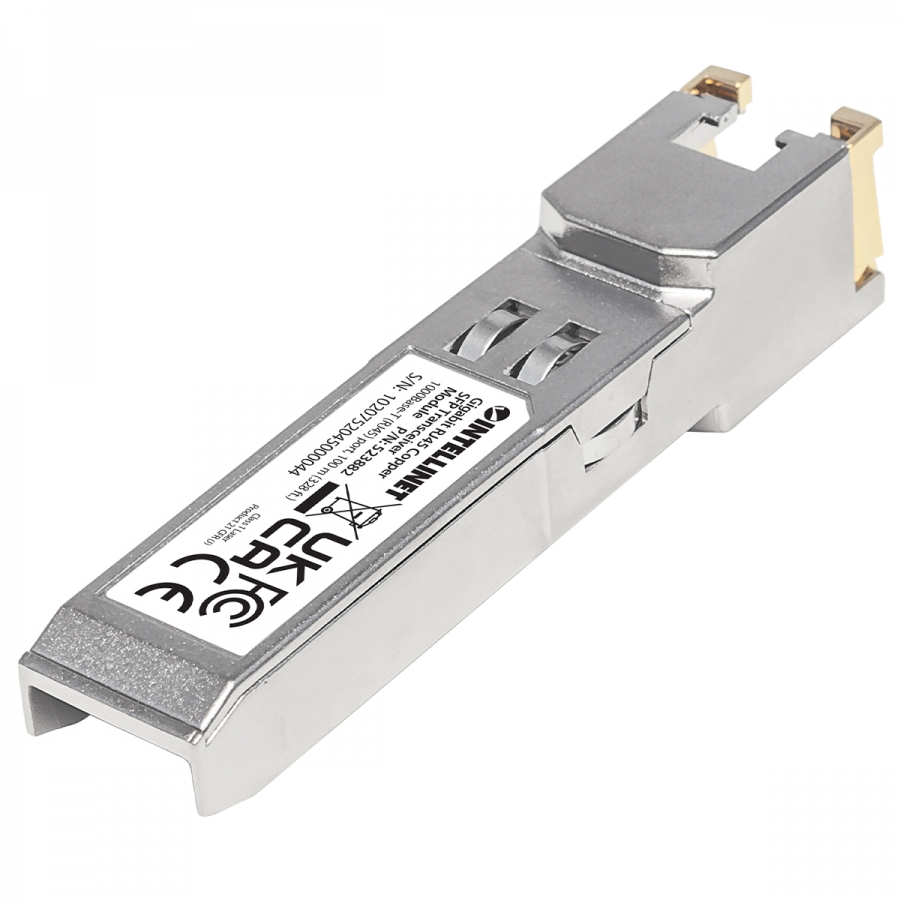

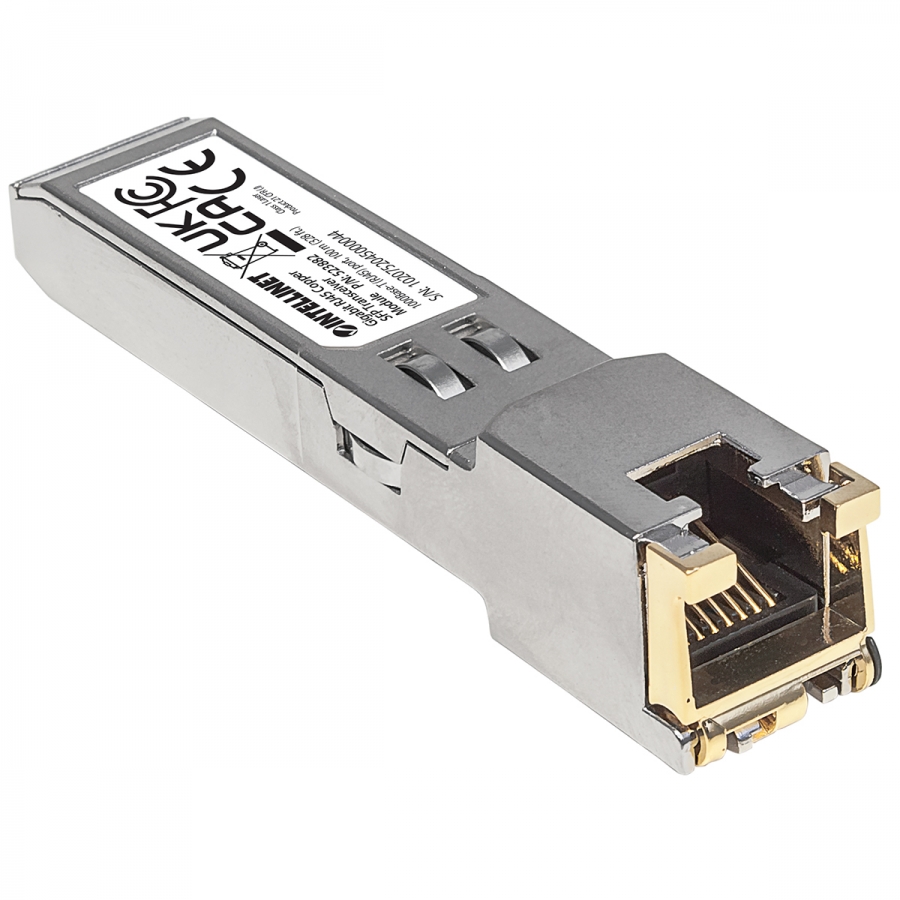

INTELLINET Gigabit SFP Tranceiver RJ45 1000Base Mini Gbic

INTELLINET

523882

Jauns

Turn a SFP transceiver module slot into a 10/100/1000 Mbps RJ45 copper Ethernet port! _x000D_ _x000D_ The Intellinet Network Solutions Gigabit RJ45 Copper SFP Optical Transceiver Module is built to comply with the MSA (Multi-Source Agreement) standards and offers a cost-effective way to add a Gigabit copper Ethernet port to your SFP enabled network switch. _x000D_ _x000D_ Compatibility _x000D_ Compatibility in your network is everything, and the Intellinet Network Solutions SFP Transceiver Module (model 523882) delivers. Use it with any Intellinet Network Solutions SFP equipped network switch or any other MSA compliant SFP enabled switch. And since the Intellinet Network Solutions SFP transceiver module is set to broadcast the vendor pn GLC-T, compatibility to your Cisco gear is provided. _x000D_ _x000D_ Hot-Pluggable _x000D_ The Intellinet Network Solutions Gigabit RJ45 Copper SFP Optical Transceiver Module (model 523882) is fully hot-pluggable, and that allows you to install the module without rebooting your network switch for uninterrupted network traffic.

Maximum data transfer rate1250 Mbit/s
Interface typeSFP
Maximum transfer distance100 m
Ethernet LANY
Ethernet interface typeGigabit Ethernet
Networking standardsIEEE 802.3, IEEE 802.3ab, IEEE 802.3u
Duplex systemFull
Product colourMetallic
Hot-Plug supportY
CertificationFCC Class B, CE Mark
Input voltage3.3 V
Power consumption (typical)1.2 W
Operating temperature (T-T)0 - 70 °C
Storage temperature (T-T)-40 - 85 °C
Operating relative humidity (H-H)10 - 85%
Width14 mm
Depth67 mm
Height12 mm
Weight21 g
Number of products included1 pc(s)
Sustainability certificatesRoHS
Harmonized System (HS) code85369010
