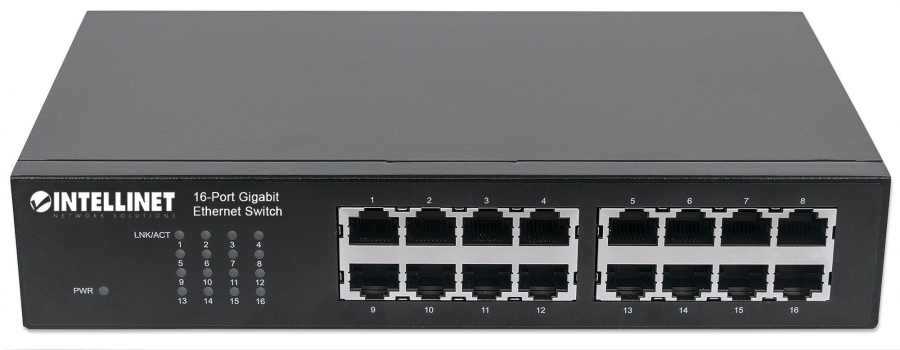

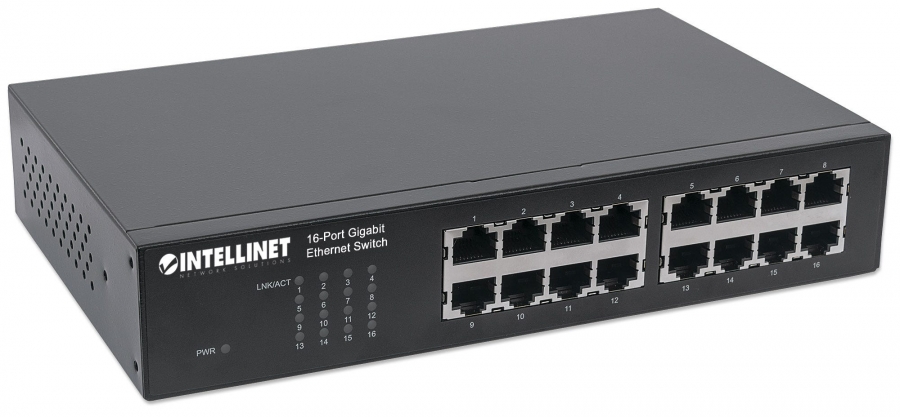

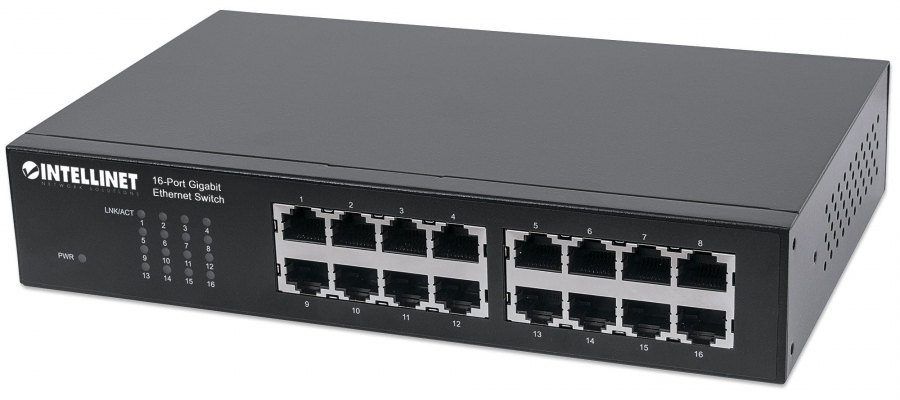

INTELLINET Switch 16x GE Desktop/Rackmount

INTELLINET

561068

Jauns

Boost your network speed. _x000D_ _x000D_ The Intellinet Network Solutions Gigabit Ethernet Switch offers an array of features while providing superior network throughput. _x000D_ _x000D_ Extreme Flexibility _x000D_ Sixteen 10/100/1000 Mbps auto-sensing ports automatically detect optimal network speeds. _x000D_ _x000D_ Extreme Throughput _x000D_ With a backplane speed of 32 Gbps, there is plenty of performance available for your computers, servers and other networking devices.

Switch typeUnmanaged
Switch layerL2
Basic switching RJ-45 Ethernet ports quantity16
Basic switching RJ-45 Ethernet ports typeGigabit Ethernet (10/100/1000)
Gigabit Ethernet (copper) ports quantity16
Networking standardsIEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x
10G supportN
Copper ethernet cabling technology10BASE-T, 100BASE-TX, 1000BASE-T
Cable types supportedCat3, Cat4, Cat5, Cat5e
Full duplexY
Flow control supportY
Auto MDI/MDI-XY
Auto-sensingY
Auto-negotiationY
MAC address auto-learning supportedY
MAC address auto-aging supportedY
MAC address table8192 entries
Switching capacity32 Gbit/s
Forwarding rate1.488 Mpps
Store-and-forwardY
Jumbo frames supportY
Jumbo frames9000

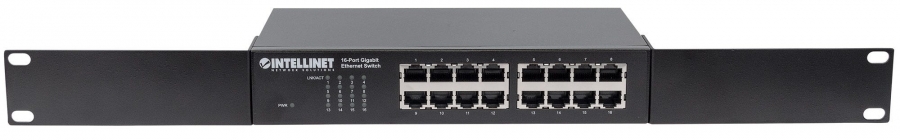

Rack mountingY
Form factor1U
Product colourBlack
Housing materialMetal
LED indicatorsY
CertificationFCC Class A, CE

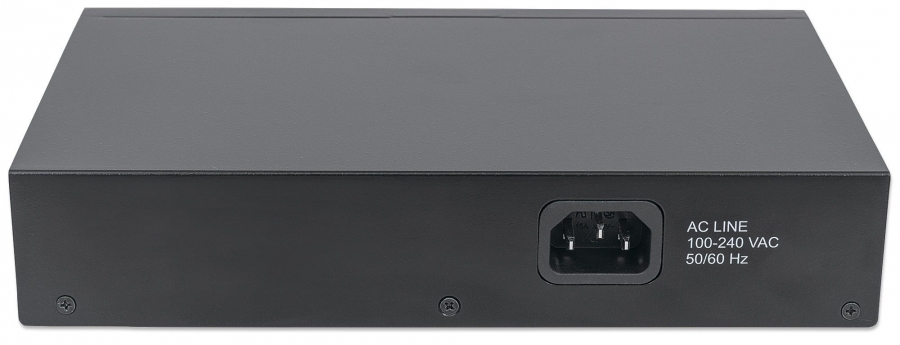

AC input voltage100 - 240 V
AC input frequency50 - 60 Hz
Power consumption (max)9.1 W
Power over Ethernet (PoE)N
Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-20 - 70 °C
Operating relative humidity (H-H)10 - 90%
Width215 mm
Depth133 mm
Height44 mm
Weight940 g
Cables includedAC
ManualY
Rack mount kitY
Harmonized System (HS) code85176990
