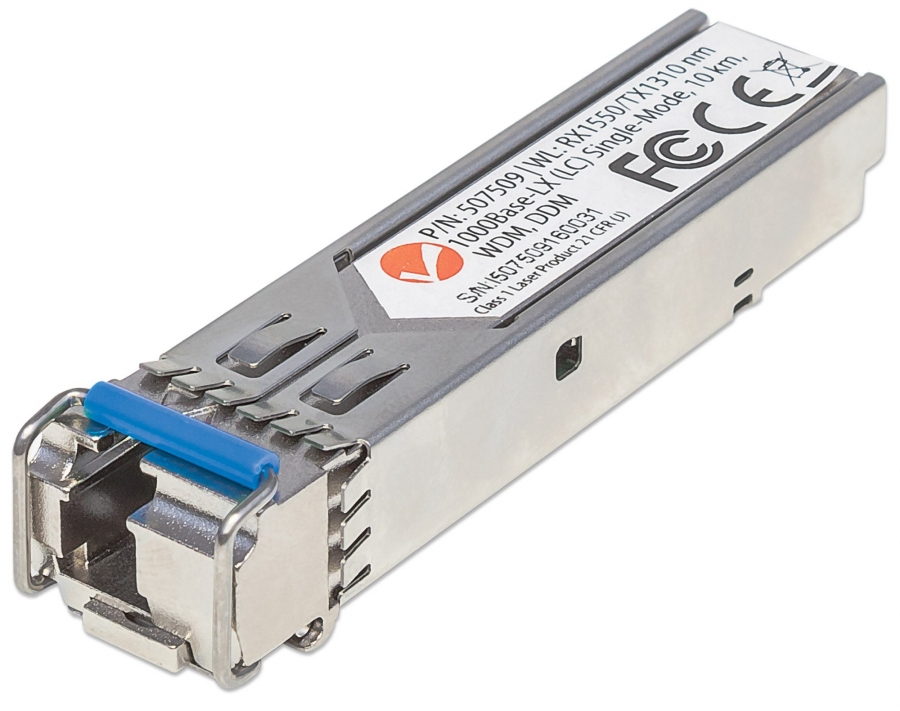

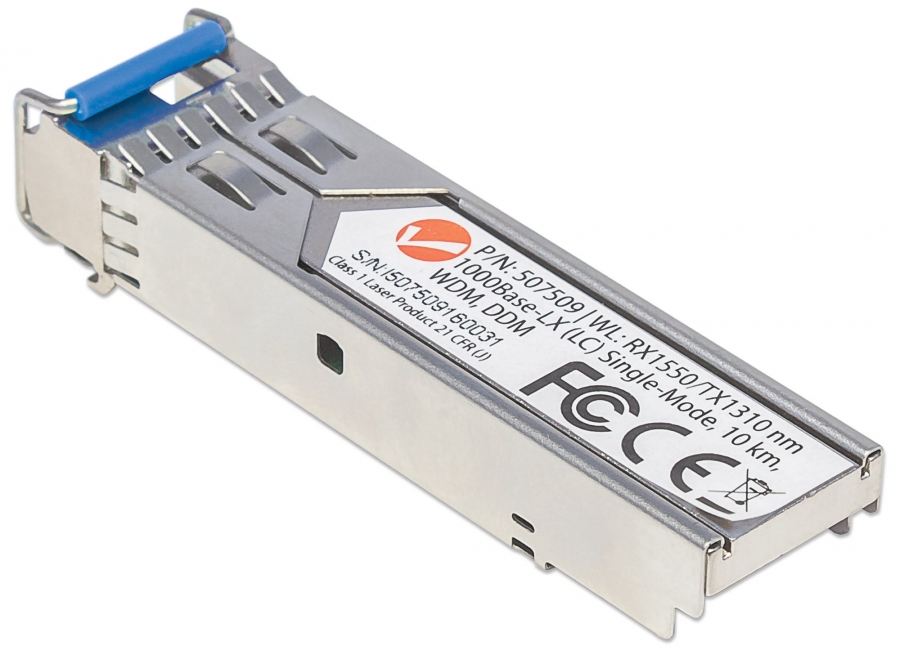

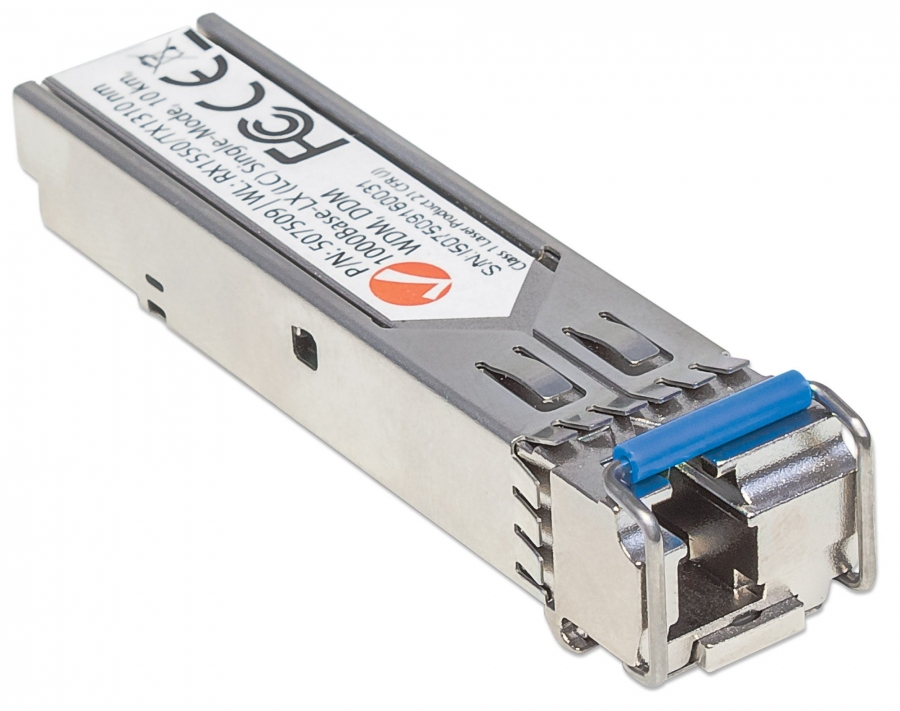

INTELLINET Gigabit SFP Tranceiver LWL 1000Base Mini Gbic

INTELLINET

507509

Jauns

Gigabit Fibre SFP Optical Transceiver Module The new line of Intellinet Network Solutions Small Form Factor Pluggable (SFP) Transceivers provides the best combination of performance and affordability. These mini-GBIC (Gigabit Interface Converter) modules offer metal housing that reduces electromagnetic interference and increases durability. Small Size for High-Density Fibre Connections The transceiver is available in mini-GBIC form factor, making it ideal for environments that require many fibre connections by taking up less space in your cabinet or computer room. Compatibility Compatibility in your network is everything, and the Intellinet Network Solutions SFP Transceiver Module delivers. Use it with any Intellinet Network Solutions SFP equipped network switch or any other MSA compliant SFP enabled switch. And since the Intellinet Network Solutions SFP transceiver module is set to broadcast the vendor on GLC-BX-U, compatibility to your Cisco gear is provided. Hot-Pluggable The Intellinet Network Solutions Gigabit Fibre WDM Bi-Directional SFP Optical Transceiver Module is fully hot-pluggable, and that allows you to install the module without rebooting your network switch for uninterrupted network traffic. Digital Diagnostics Monitoring (DDM) The Intellinet Network Solutions Gigabit Fibre WDM Bi-Directional SFP Optical Transceiver Module supports standard digital diagnostics monitoring (DDM) functions, also known as digital optical monitoring (DOM). The DDM/DOM function will monitor parameters of the SFP, such as optical output power, optical input power, temperature, laser bias current, and transceiver supply voltage, in real time. WDM (bi-directional wavelength division multiplexing) Technology Advantage The Intellinet Network Solutions Gigabit Fibre WDM Bi-Directional SFP Optical Transceiver Module utilizes a single strand of fibre to transmit network traffic on separate receive and transmit wavelengths (1310/1550 nm). This innovative technology effectively uses the two strands for two independent connections or to double the capacity without laying a second fibre cable. Note that this transceiver must be used in conjunction with Intellinet Network Solutions part number 507486.

SFP transceiver typeFiber optic
Maximum data transfer rate1000 Mbit/s
Interface typeSFP
Single-mode fiber (SMF) supportedY
Fiber optic connectorLC
Fiber cable diameters supported (core/cladding)9/125 µm
Maximum transfer distance10000 m
Tx wavelength (max)1310 nm
Rx wavelength (max)1550 nm
Tx power (min)-8 dBmW
Tx power (max)-3 dBmW
Link budget16 dB
Ethernet LANY
Ethernet interface typeGigabit Ethernet
Networking standardsIEEE 802.3z
Duplex systemFull
Product colourMetallic
Hot-Plug supportY
CertificationFCC Class A, CE Mark
Input voltage3.3 V
Power consumption (typical)1 W
Operating temperature (T-T)0 - 70 °C
Storage temperature (T-T)-40 - 85 °C
Operating relative humidity (H-H)10 - 85%
Width14 mm
Depth57 mm
Height12 mm
Weight37 g
Sustainability certificatesRoHS
Harmonized System (HS) code85369010
RX sensitivity-24 dB
