INTELLINET Medienkonverter Fast Ethernet Singlemode RX 1550

INTELLINET

510547

Jauns

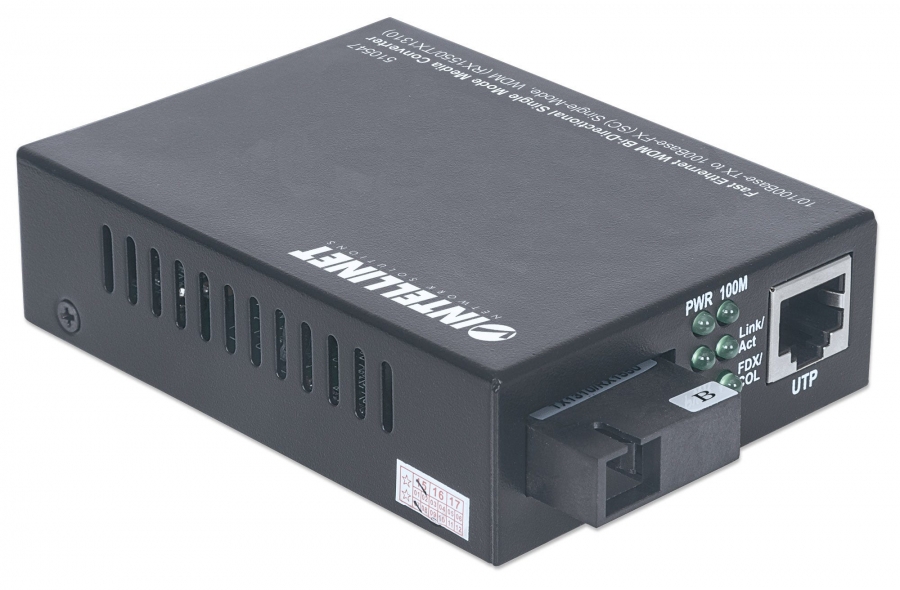

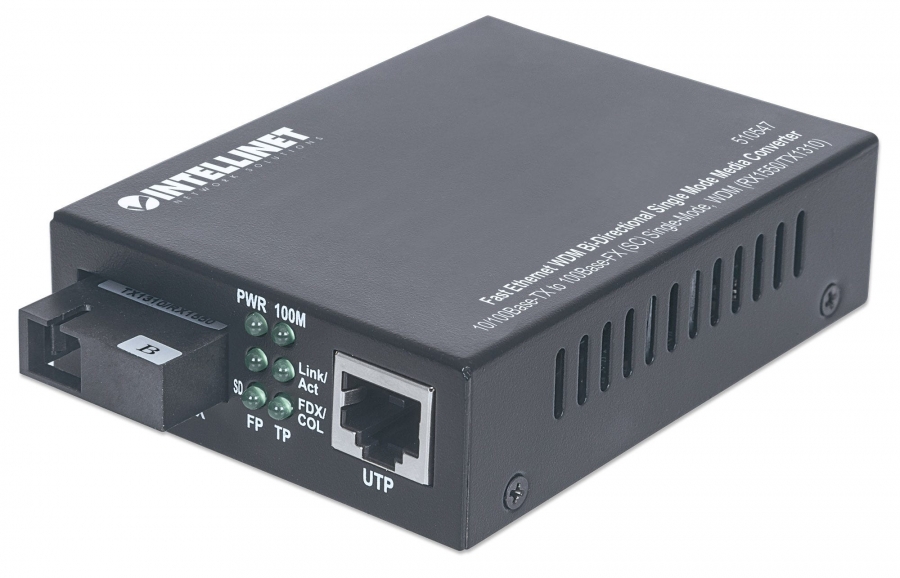

The Intellinet Network Solutions Fast Ethernet WDM (bi-directional wavelength division multiplexing) Media Converter utilizes a single strand of fibre to transmit network traffic on separate receive and transmit wavelengths (1550/1310 nm). This innovative technology allows you to effectively use the two strands for two independent connections or to double the capacity without digging in a second fibre cable. The converter is completely transparent to the network so the network performs exactly the way it did before - only now it can support both copper and fibre mediums. Expands the Size of an Existing Network This converter Provides fibre connectivity to Ethernet segments, allowing for even further networking expansion between extended workgroups. It also provides building-to-building connectivity without the cost and disruption associated with the installation of additional routers. Enhances the Distance between Networking Devices Connecting the converter to fibre segments can further extend distances between networking nodes. This can be achieved by direct connection between the converter and a fibre-based node or networking device. Cabling Flexibility Network managers can install fibre cabling anywhere within a network without changing the arrangement of copper-based Ethernet. The compact size of the converter allows it to be easily deployed in any narrow desktop location or to be used in a wallmount installation. Several converters can be simultaneously installed into a 19"; rack-mountable chassis.

Maximum data transfer rate100 Mbit/s
Converter input interface10Base-T, 100Base-TX
Converter output interface100Base-FX
Networking standardsIEEE 802.3, IEEE 802.3u
Ethernet interface typeFast Ethernet
Ethernet LAN data rates10,100 Mbit/s
Copper ethernet cabling technology10BASE-T, 100BASE-TX
Fiber ethernet cabling technology100BASE-FX
Auto MDI/MDI-XY
Duplex systemFull
Cable types supportedCat5e
Fiber optic connectorSC
Connectivity technologyWired
Ethernet LAN (RJ-45) ports1
Fiber ports quantity1

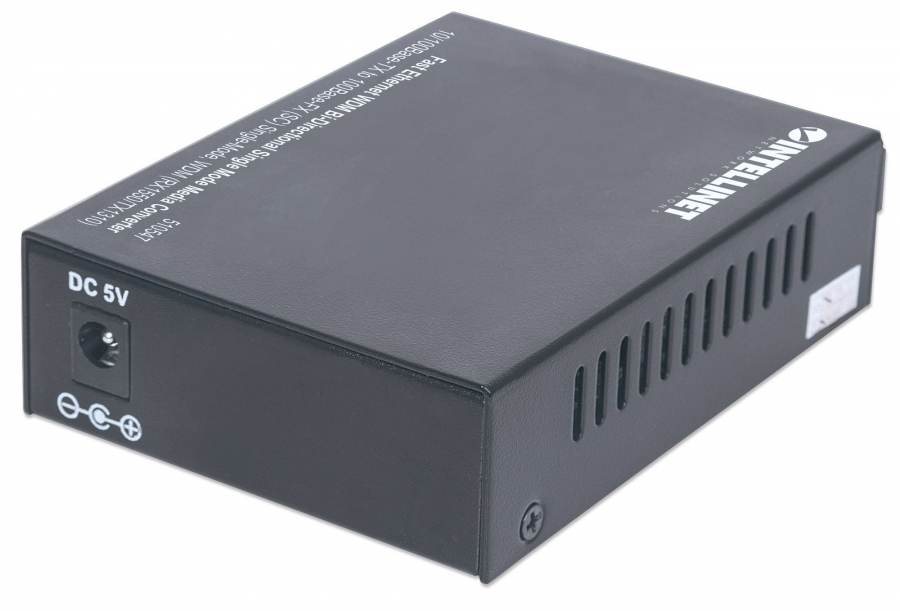

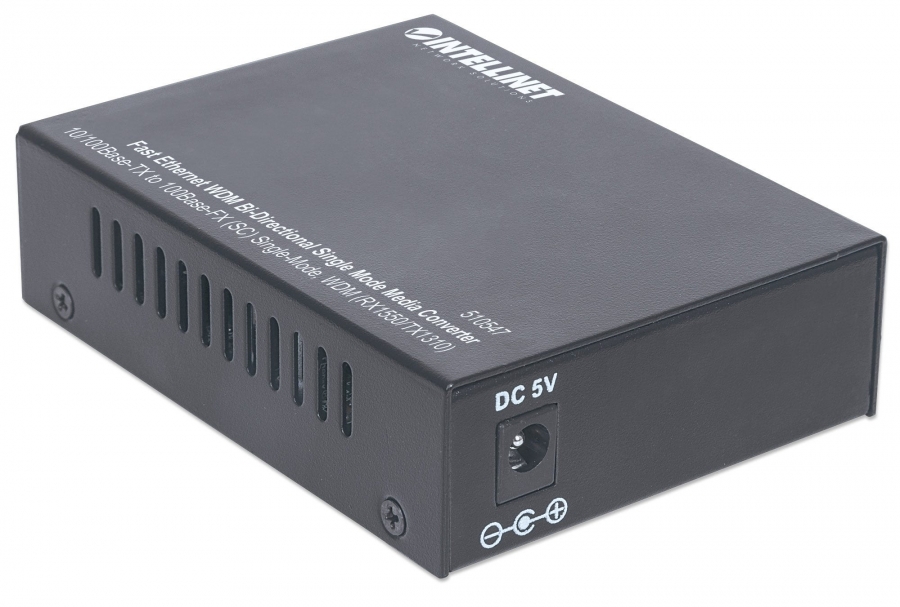

DC-in jackY
Maximum transfer distance20000 m
Wavelength-division multiplexing (WDM)Y
Fiber mode structureSingle-mode
Fiber cable diameters supported (core/cladding)9/125 µm
Tx power (min)-15 dBmW
Tx power (max)-3 dBmW
Sensitivity-32 dBmW
Mean time between failures (MTBF)100000 h
InternalN

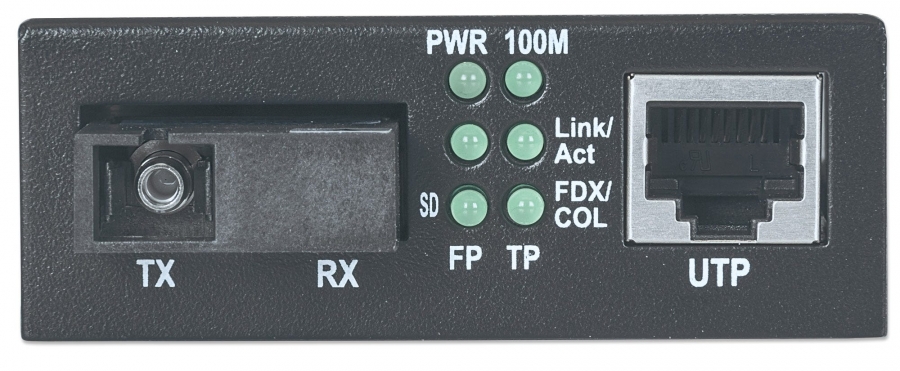

LED indicatorsY
Product colourBlack
Housing materialMetal
CertificationFCC Class A, CE
Output voltage5 V
Output current1.2 A
Power consumption (max)5 W
External power adapterY
Width69 mm
Depth105 mm
Height25 mm
Weight180 g
Operating temperature (T-T)0 - 50 °C
Storage temperature (T-T)-20 - 70 °C
Operating relative humidity (H-H)10 - 80%
AC adapter includedY
ManualY
Harmonized System (HS) code85176990
