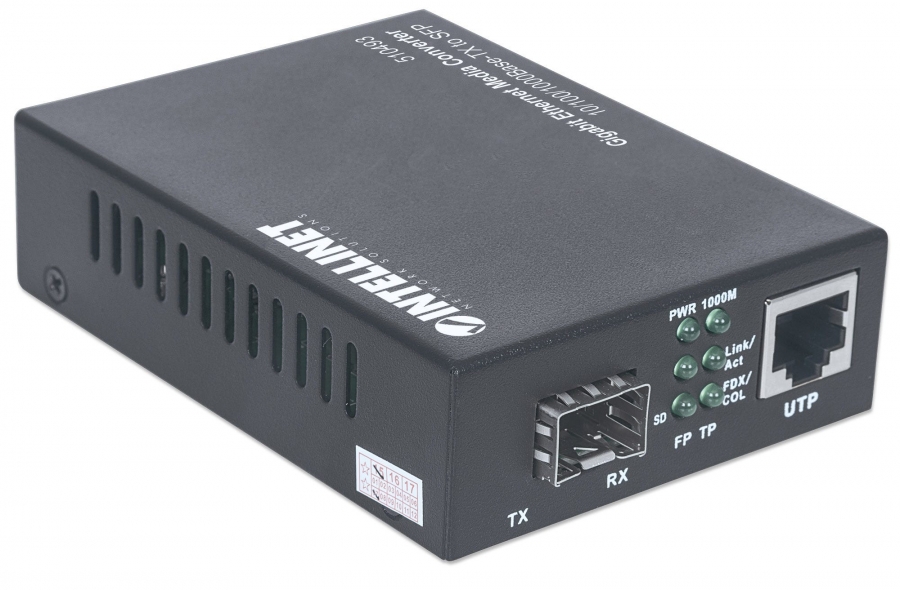

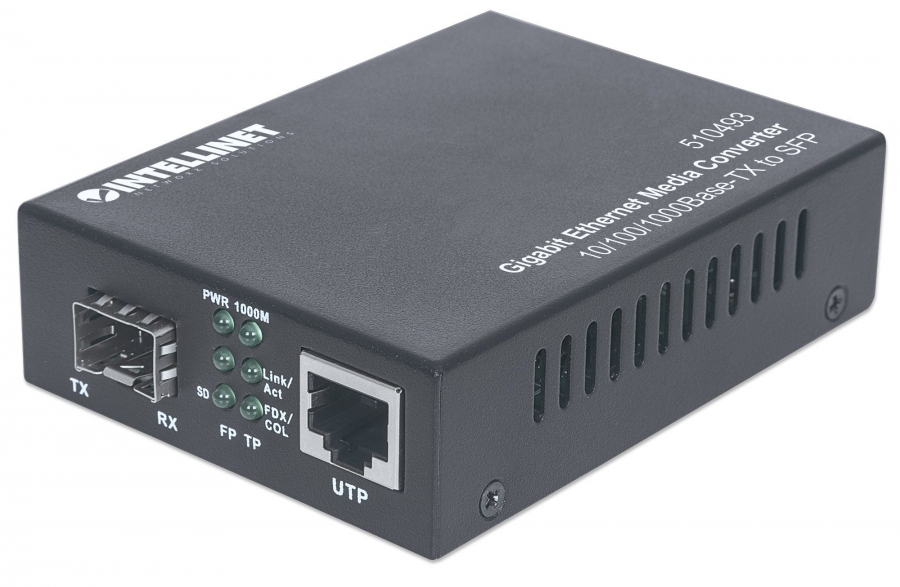

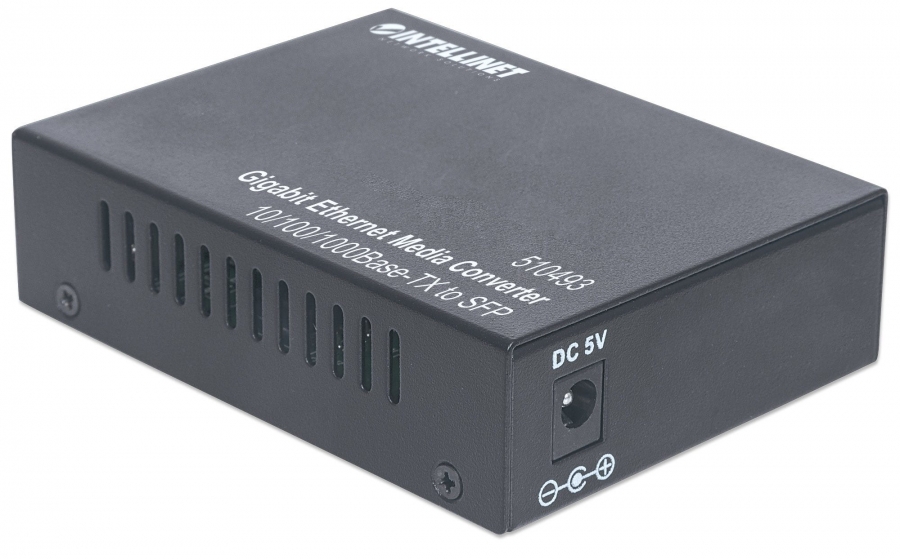

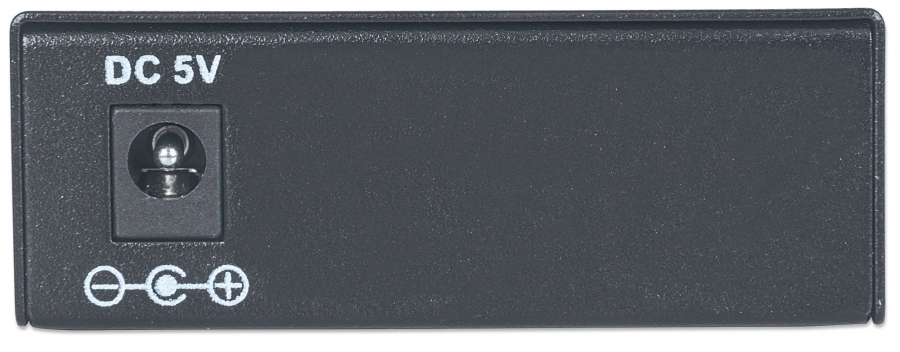

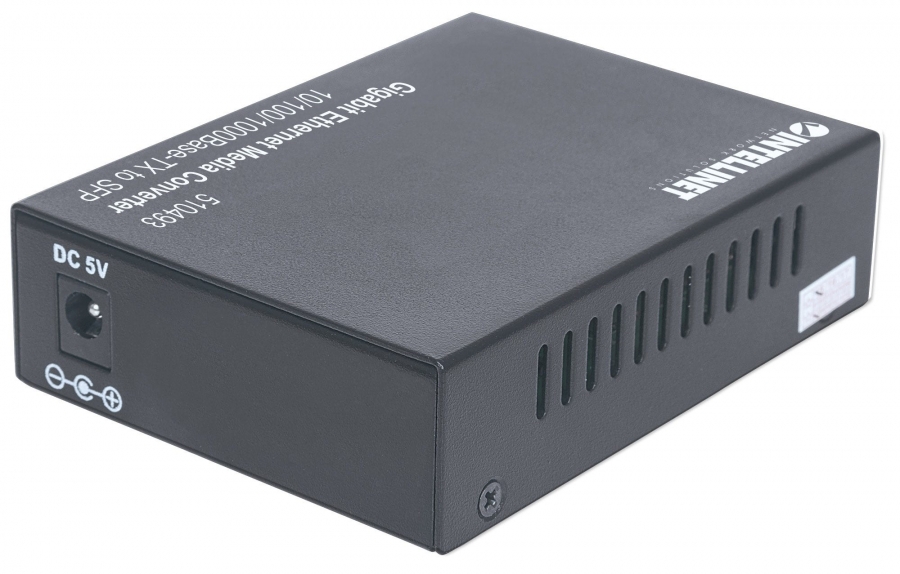

INTELLINET Medienkonverter Gigabit SFP 100m

INTELLINET

510493

Jauns

The Intellinet Network Solutions Gigabit Ethernet to SFP Media Converter is completely transparent to the network so the network performs exactly the way it did before - only now it can support both copper and fibre mediums. Expands the Size of an Existing Network Provides fibre connectivity to Ethernet segments, allowing for even further networking expansion between extended workgroups. Also provides building-to-building connectivity without the need for the cost and disruption associated with the installation of additional routers. Enhances the Distance between Networking Devices Connecting the converter to fibre segments can further extend distances between networking nodes. This can be achieved by direct connection between the converter and a fibre-based node or networking device. Cabling Flexibility Network managers can install fibre cabling anywhere within a network without changing the arrangement of copper-based Ethernet. The compact size of the converter allows it to be easily deployed in any narrow desktop location or to be used in a wall-mount installation. Several converters can be simultaneously installed into a 19"; rack-mountable chassis.

Maximum data transfer rate1000 Mbit/s
Converter input interface10Base-T, 100Base-TX, 1000Base-TX
Networking standardsIEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3z
Ethernet interface typeFast Ethernet, Gigabit Ethernet
Ethernet LAN data rates10,100,1000 Mbit/s
Data transfer rate1000 Mbit/s
Auto MDI/MDI-XY
Duplex systemFull
Cable types supportedCat5e, Fiber
Fiber optic connectorSFP
Connectivity technologyWired
Ethernet LAN (RJ-45) ports1
Fiber ports quantity1
Maximum transfer distance100 m
InternalN
LED indicatorsLink, Power
Product colourBlack
Housing materialMetal
CertificationFCC Class A, CE
Input voltage12 V
Input current1.2 A
Power consumption (max)5 W
External power adapterY
Width70 mm
Depth96 mm
Height26 mm
Weight170 g
Operating temperature (T-T)0 - 50 °C
Storage temperature (T-T)-20 - 70 °C
Operating relative humidity (H-H)10 - 80%
User guideY
Harmonized System (HS) code85176990
