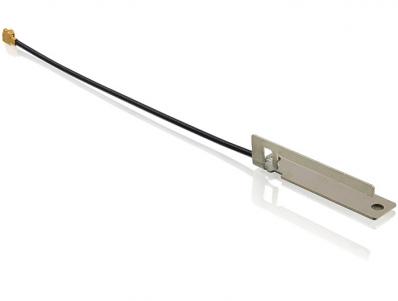

Delock WLAN Antenna MHFU.FL-LP-068 Compatible Plug 802.11 bgn -5 dBi 60 mm internal 805 PIFA

Reference 86136

Condition: New

This WLAN/Bluetooth antenna can be connected to your device with MHF/U.FL interface, in order to receive and send signals.

More details

More info

Description:
This WLAN/Bluetooth antenna can be connected to your device with MHF/U.FL interface, in order to receive and send signals.

Specification:
• WLAN/Bluetooth antenna internal
• Connection: Miniature RF Coaxial connector MHF (I-PEX), U.FL (Hirose)
• Impedance: 50 Ohm
• Cable length: 60 mm (1.13 mm)
• Frequency range: 2.4 - 2.5 Ghz
• Maximum gain: < 3 dBi
• Average gain: > -5 dBi
• Operating temperature: -10 Â°C ~ +55 Â°C
• VSWR (voltage standing wave ratio) 2.0:1 max.
• Dimensions: 25 x 6 x 6.3 mm

System requirements:

Package content:
• WLAN/Bluetooth antenna internal
