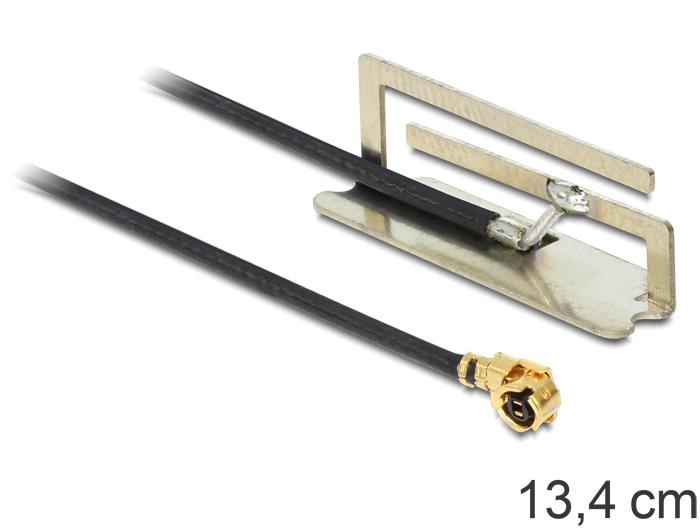

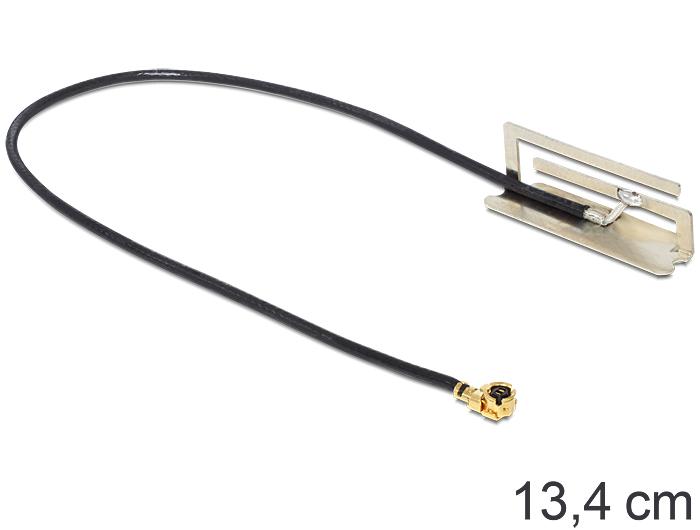

Delock WLAN Antenna MHFU.FL-LP-068 Compatible Plug 802.11 acabgn -4 dBi 134 mm Internal PIFA

DELOCK

86214

New

This WLAN/Bluetooth antenna you can integrate into your devices with MHF / U.FL compatible connection to receive and send signals.

More details

Description:
This WLAN/Bluetooth antenna you can integrate into your devices with MHF / U.FL compatible connection to receive and send signals.

Specification:
• WLAN antenna internal
• PIFA Planar Inverted F-Shaped Antenna
• Connector: miniature RF coaxial connector MHF (I-PEX),
U.FL (Hirose) compatible
• Cable length: 134 mm
• Cable diameter: 1.13 mm
• Cable type: coaxial
• Frequency range: 2.400 ~ 2.500 GHz, 5.150 ~ 5.875 GHz
• Impedance: 50 Ohm
• Peak gain: < 1,6 dBi
• Average gain: > -4 dBi
• Operating temperature: -10 °C ~ 55 °C
• VSWR: 2.5:1 max.

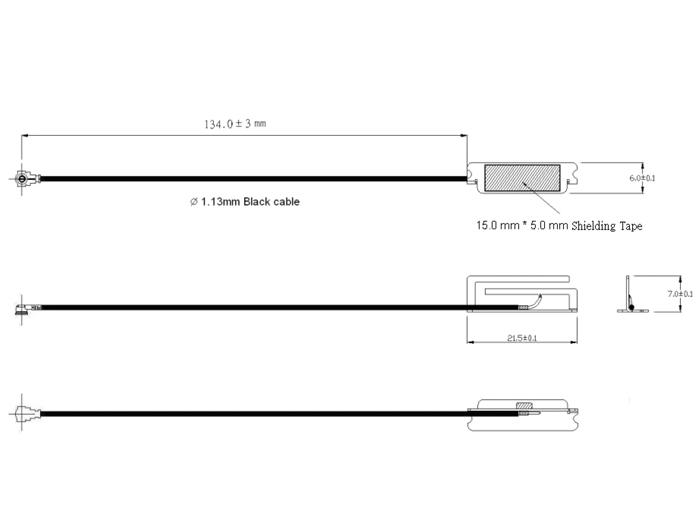

• Dimensions (LxWxH): 21.5 x 6 x 7 mm


System requirements:


Package content:
• Antenna

Antenna
