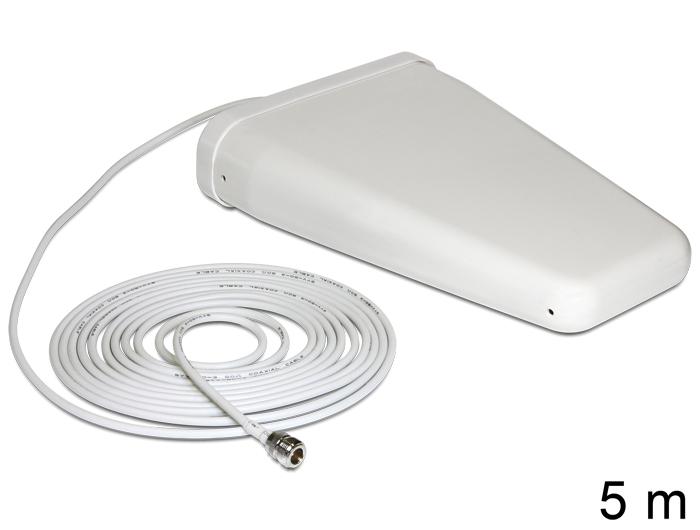

Delock LTE Band 20137 Antenna N Jack 8 ~ 9 dBi Birectional White Outdoor

DELOCK

88808

New

This LTE antenna can be installed indoors or outdoors and take advantage of all four bands for LTE. It is completely compatible to UMTS / GSM / Bluetooth / ZigBee / WLAN 2.4 GHz.

More details

Description:
This LTE antenna can be installed indoors or outdoors and take advantage of all four bands for LTE. It is completely compatible to UMTS / GSM / Bluetooth / ZigBee / WLAN 2.4 GHz.

Specification:
• LTE Band: 1/ 3/ 7/ 20
• Frequency range: 790 - 870 MHz, 1710 - 2690 Mhz
• GSM/UMTS
• WLAN IEEE 802.11 b/g/n 2.40 ~ 2.50 GHz
• Bluetooth
• ZigBee
• Gain: 8 ~ 9 dBi
• Polarisation vertical
• Impedance: 50 Ohm
• VSWR: 2,0:1
• N jack
• Dimension: 295 x 205 x 65 mm
• Protection class: IP55
• Cable length: 5 m
• Cable type: RG-58
• Cable attenuation: 0.50 dB per meter @ 800 MHz
• Operation temperature: -40°C ~ 60°C
• ABS UV resitant

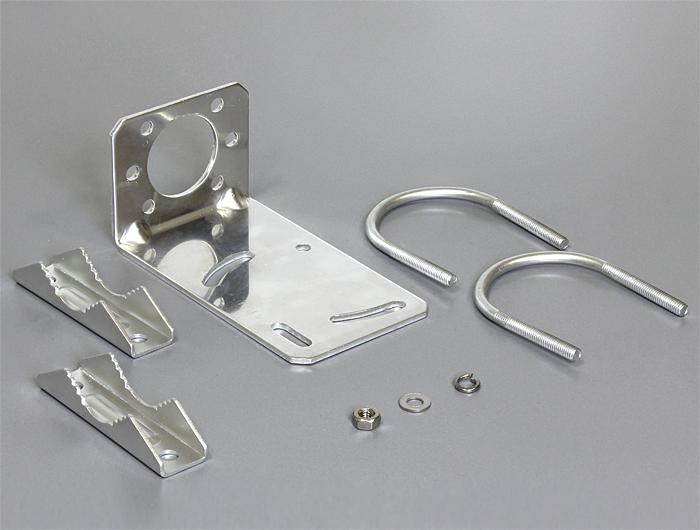

• Including pole mounting kit

System requirements:


Package content:
• LTE antenna
• Pole mounting kit
