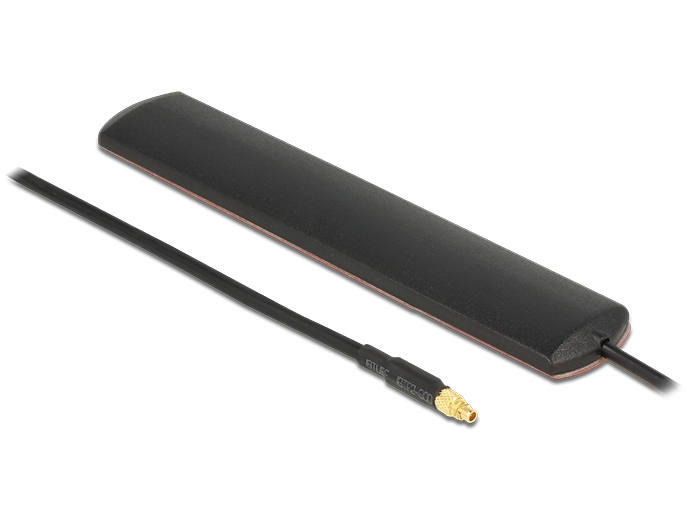

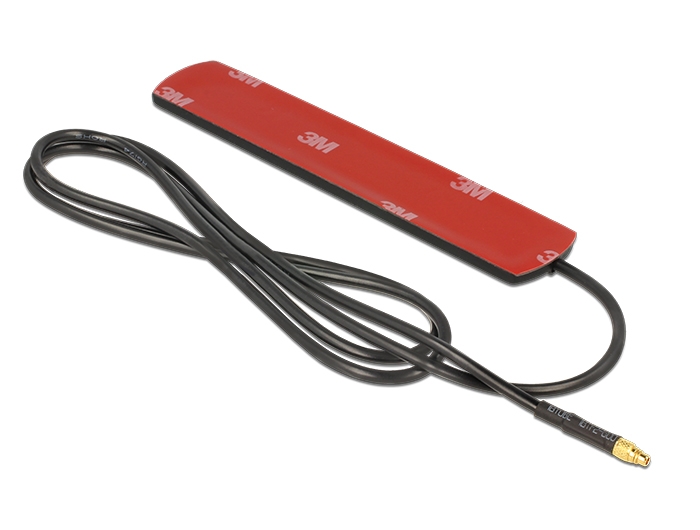

Delock LTE Antenna MMCX Plug 3 dBi omnidirectional fixed black adhesive mounting

DELOCK

89525

New

This Delock LTE antenna allows the use of different LTE bands indoors. It is completely GSM, UMTS, Bluetooth, WLAN 2.4 GHz, ZigBee, DECT and Z-Wave compatible.
System requirements:
• Device with free MMCX connector
Specification:

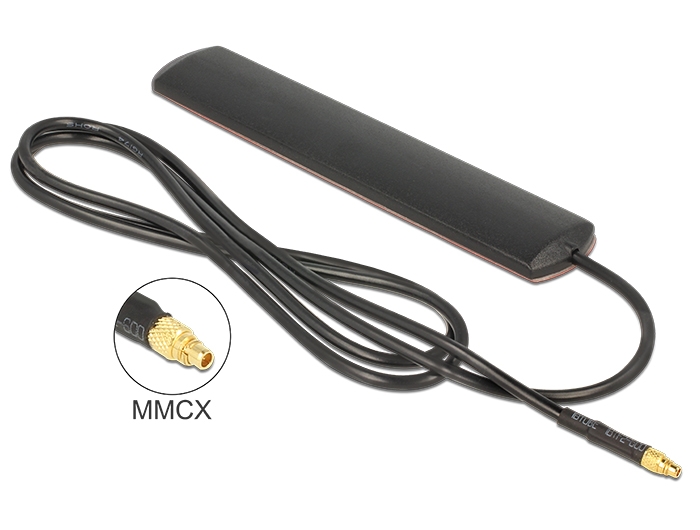

• Connector: MMCX plug
• LTE Band 1 - 10, 12 - 20, 23, 25 - 30, 33 - 41, 43, 44
• Frequency range: 690 - 960, 1710 - 2700 Mhz
• GSM, UMTS, Bluetooth, WLAN 2,4 GHz, ZigBee, DECT, Z-Wave
• Antenna gain: 3 dBi
• Impedance: 50 Ohm
• Polarisation: vertical
• VSWR: 2.0.
• Operating temperature: -10 °C ~ 55 °C
• Housing: ABS UV resistant
• Colour: black
• Dimensions (LxWxH): ca. 115 x 22 x 5 mm
• Cable category: coaxial
• Cable type: RG-174
• Cable colour: black
• Cable attenuation: 1,5 dB @ 1,5 GHz per meter
• Cable diameter: ca. 2.7 mm
• Cable length incl. connector: ca. 0,9 m
Package content:
• LTE antenna
Data sheet:
http://www.delock.de/produkt/89525/pdf.html?sprache=en
