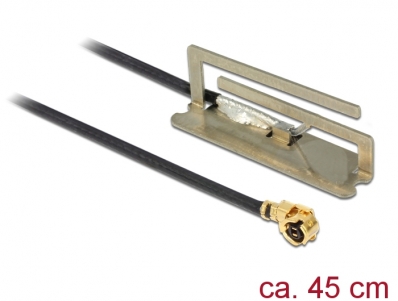

Delock WLAN Antenna MHF/ U.FL-LP-068 Compatible Plug 802.11 ac/a/h/b/g/n PIFA 1.6 dBi 45 cm internal

Reference 86389

Condition: New

More info

- Anschluss: Miniature RF Coaxial Connector MHF (I-PEX), kompatibel zu U.FL-LP-068 (Hirose) - PIFA WLAN Antenne intern - 5,150 - 5,850 GHz - 2,400 - 2,500 Ghz - peak gain <1,5 dBi - average gain >-4 dBi - operation temp. -10 °C ~ 55 °C - Abmessungen: L/B/H 21,5 x 6 x 7 mm - VSWR: 2,0 max. - Kabellänge: 450 mm - Kabeldurchmesser: 1,13mm - Impedanz: 50 Ohm - Kabelfarbe: schwarz

System requirements:
• Device with a free HF/ U.FL-LP-068 compatible connector

Specification:
• Connector: HF/ U.FL-LP-068 compatible
• PIFA: Planar Inverted F-Shaped Antenna
• Frequency range:
2.400 - 2.500 GHz
5.150 - 5.875 GHz
• Antenna gain:
1.6 dBi maximal
-4.0 dBi average
• Impedance: 50 Ohm
• VSWR: 2.5
• Operating temperature: -10 °C ~ 55 °C
• Dimensions: (LxWxH): ca. 21.5 x 6.0 x 7.0 mm
• Cable category: coaxial
• Cable colour: black
• Cable attenuation: 2.5 dBi @ 2.4 GHz per meter
• Cable diameter: ca. 1.13 mm
• Cable length incl. connectors: ca. 45.0 cm

Package content:
• Antenna

Data sheet:
http://www.delock.de/produkt/86389/pdf.html?sprache=en
