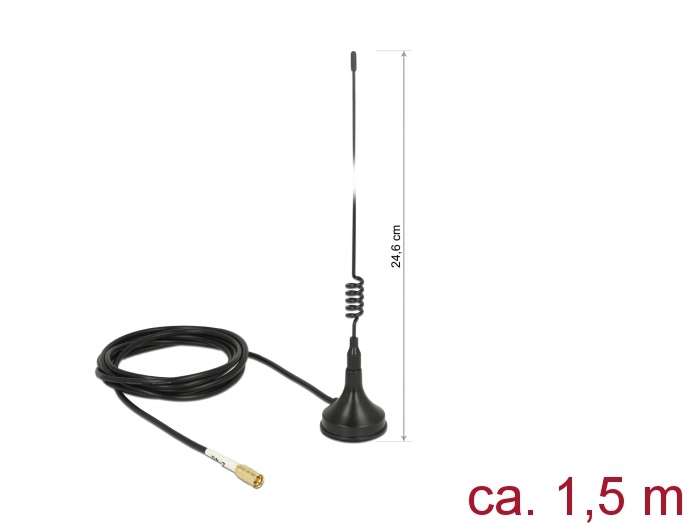

Delock WLAN 802.11 b/g/n Antenna SMB plug 2 dBi fixed omnidirectional with magnetic base and connection cable RG-174 1.5 m outdo

DELOCK

89612

New

This antenna by Delock allows the usage of the 2.4 GHz band indoors and outdoors. It is completely compatible to Bluetooth, WLAN 2.4 GHz, ZigBee 2.4 GHz and ISM 2.4 GHz.
System requirements:
• Device with a free SMB jack
Specification:
• Connector: 1 x SMB plug
• Bluetooth, WLAN 2.4 GHz, ZigBee 2.4 GHz, ISM 2.4 GHz
• Frequency range: 2.4 - 2.5 GHz
• Antenna gain: 2 dBi
• Impedance: 50 Ohm
• VSWR: 2.0
• Polarisation: linear
• Operating temperature: -40 °C ~ 85 °C
• Colour: black
• Cable: coaxial
• Cable type: RG-174
• Cable colour: black
• Cable diameter: ca. 2.7 mm
• Cable attenuation: 1.5 dB @ 1.5 GHz per meter
• Smallest bending radius: 10.5 mm
• Cable length incl. connectors: ca. 1.5 m
• Antenna length including magnetic base: ca. 24.6 cm
• Diameter magnetic base: ca. 29.5 mm
Package content:
• Antenna
Data sheet:
http://www.delock.de/produkt/89612/pdf.html?sprache=en
