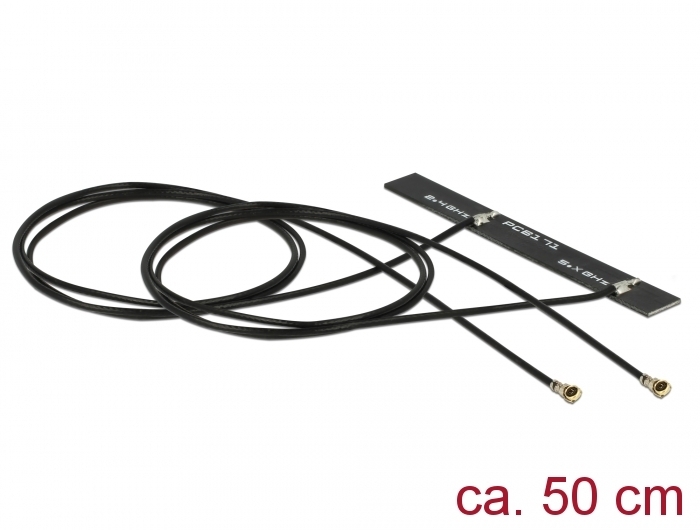

Delock WLAN 802.11 ac/a/h/b/g/n Twin Antenna 2 x MHF® 4L plug 3 - 5 dBi 2 x 50 cm PCB internal self adhesive

DELOCK

89933

New

This antenna by Delock allows the usage of the 2.4 GHz + 5 GHz WLAN bands indoors.
System requirements:
• Device with two free MHF® 4L connectors
Specification:
• Connector: 2 x MHF® 4L plug
• Frequency range:
  2400 - 2500 MHz
  5150 - 5850 MHz
• Bluetooth, WLAN 2.4 / 5.0 GHz, ZigBee 2.4 GHz, ISM
• Antenna gain: 3 - 5 dBi
• VSWR: 2.0
• Impedance: 50 Ohm
• Polarisation: linear, vertical
• Mounting type: self adhesive
• Operating temperature: -10 °C ~ 55 °C
• Housing material: FPC
• Colour: black
• Cable: coaxial
• Cable type: 1.13
• Cable colour: black
• Cable diameter: ca. 1.13 mm
• Cable attenuation: 2.5 dB @ 2400 MHz per meter
• Smallest bending radius: 4.5 mm
• Dimensions (LxWxH): ca. 61.60 x 7.00 x 1.60 mm
• Length incl. connectors (L): 2 x ca. 50 cm
Package content:
• Antenna
Data sheet:
http://www.delock.de/produkt/89933/pdf.html?sprache=en
