Delock WLAN 802.11 b/g/n Antenna MHF® I plug 2 dBi 50 mm PCB internal self adhesive Bulk

Delock WLAN 802.11 b/g/n Antenna MHF® I plug 2 dBi 50 mm PCB internal self adhesive Bulk

DELOCK

35037

New

Add to Compare

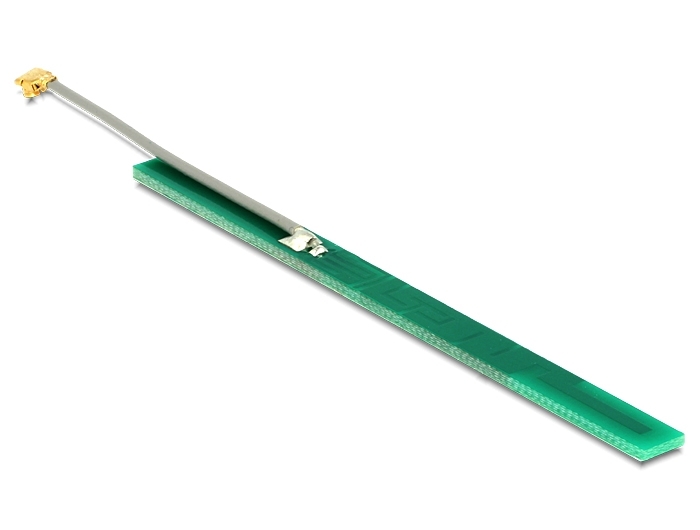

This Wireless LAN antenna can be connected to a device with MHF® I interface, in order to send and receive signals.
Specification:
• Connector: 1 x MHF® I plug
• Frequency: 2400 - 2500 MHz
• WLAN 2.4 GHz, Bluetooth, ISM, ZigBee
• Antenna gain: 2 dBi
• Impedance: 50 Ohm
• Self adhesive
• Operating temperature: -10 °C ~ 55 °C
• Cable: coaxial
• Cable type: 1.13
• Cable colour: grey
• Cable diameter: ca. 1.13 mm
• Cable attenuation: 2.5 dB @ 2400 MHz per meter
• Smallest bending radius: 4.5 mm
• Cable length: ca. 50 mm
• Dimensions (LxWxH): ca. 72.00 x 4.00 x 1.60 mm

Package content:
• Antenna
Data sheet:
http://www.delock.de/produkt/35037/pdf.html?sprache=en
