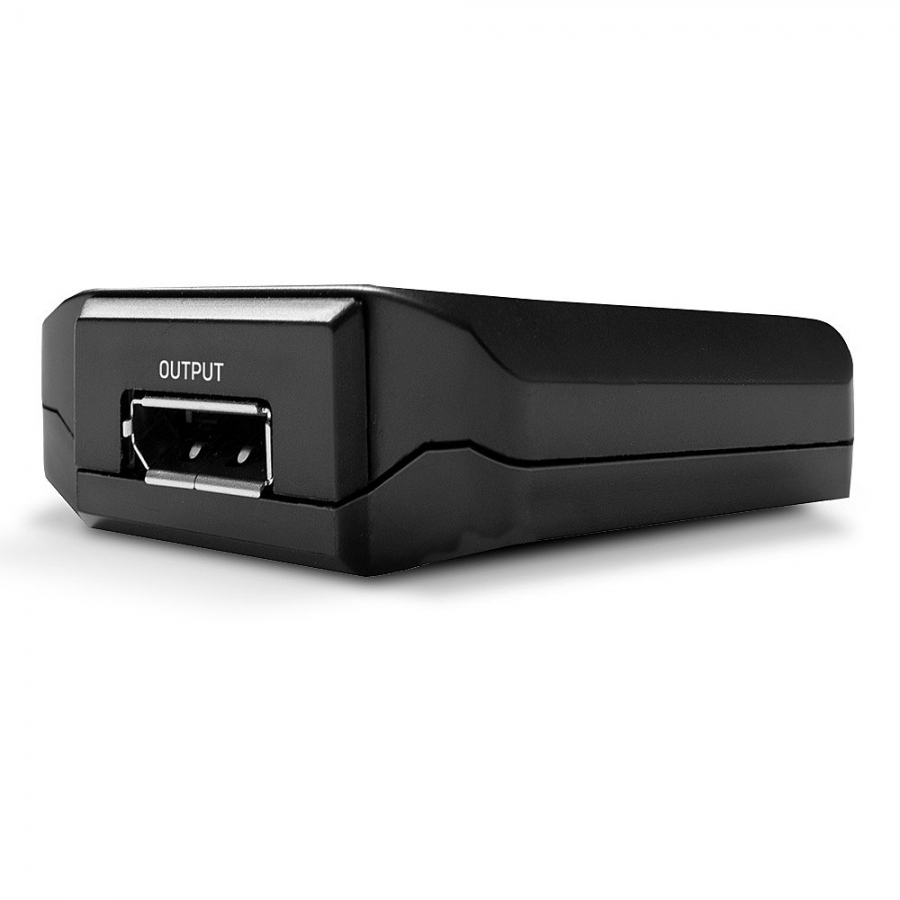

12m DisplayPort 1.4 Repeater

LIN38415

New

Specifications

  • AV Interface: DisplayPort
  • Interface Standard: DisplayPort 1.4 Repeater
  • Supported Bandwidth: 32.4Gbps
  • Maximum Distance:

12m (39.37ft) - 7680x4320@60Hz

30m (98.42ft) - 3840x2160@60Hz

35m (114.83ft) - 3840x2160@30Hz

  • Maximum Input Distance:

2m (6.56ft) - 7680x4320@60Hz

10m (32.81ft) - 3840x2160@60Hz

15m (49.21ft) - 3840x2160@30Hz

  • Maximum Output Distance:

10m (32.81ft) - 7860x4320@60Hz

20m (62.65ft) - 3840x2160@60Hz

20m (62.65ft) - 3840x2160@30Hz

  • Maximum Resolution: 7680x4320@60Hz 4:2:0 8bit
  • HDCP Support: 2.2
  • Transmission Medium: DisplayPort Cable
  • Special Features: DPCP Compatible



CONNECTORS

  • Input: DisplayPort (Female)
  • Output: DisplayPort (Female)
  • Power: 3.5/1.35mm DC socket



Physical Properties

  • Dimensions (approx.) WxDxH: 54x54x19mm (2.13x2.13x0.75in)
  • Housing Material: Plastic
  • Net Weight: 0.032kg (0.07lb)
  • Operating Temperature: 5°C - 40°C (41°F - 104°F)
  • Storage Temperature: -20°C - 60°C (-4°F - 140°F)
  • Humidity: 0-80% RH (non-condensing)
  • Power Requirements: 5VDC 1A
  • Colour: Black



Miscellaneous

  • Packaging Type: Carton Box
  • Packaging Dimensions: 55x100x140mm (2.17x3.94x5.51in)
  • Gross Weight: 0.168kg (0.37lb)
  • Warranty (Years): 2
  • Certificated: CE, FCC, RoHS, REACH & California Proposition 65



Package Content

  • DisplayPort 1.4 Repeater
  • Multi-Country Power Supply (UK, Euro, US, AUS)
  • Lindy Manual



Purchasing Information

  • No.: 38415
  • EAN: 4002888384155
