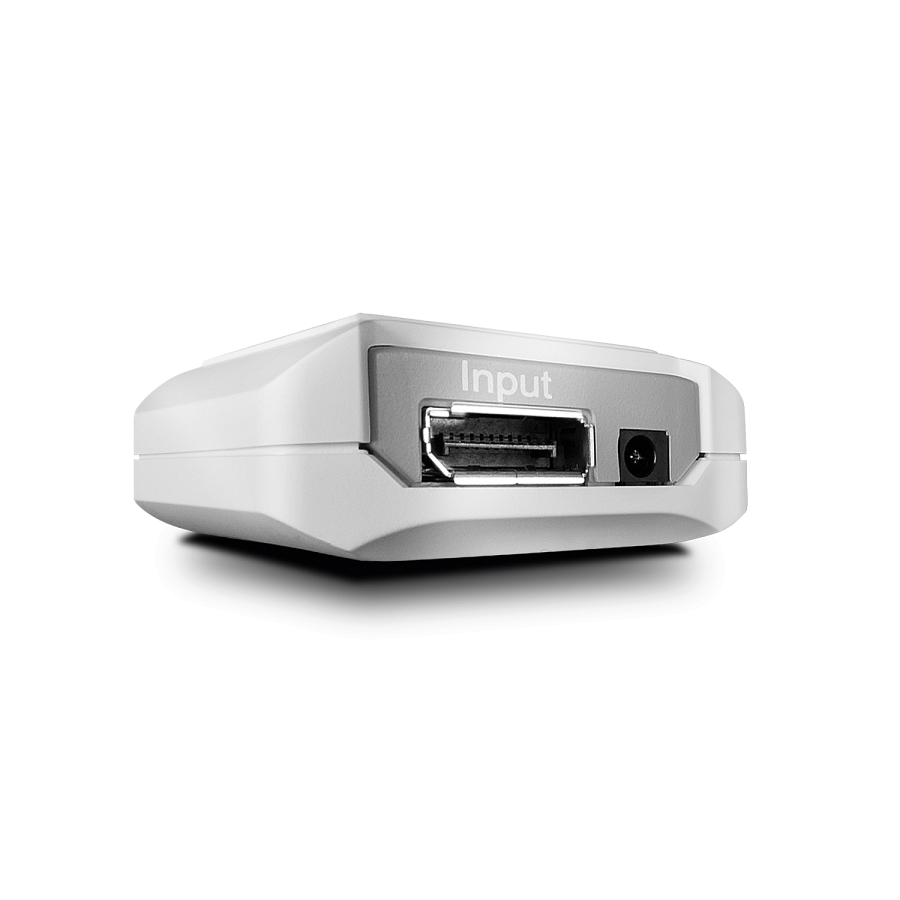

40m DisplayPort 1.2 Repeater

LIN38413

New

Specifications

  • AV Interface: DisplayPort
  • Interface Standard: DisplayPort 1.2
  • Supported Bandwidth: 21.6 Gbps
  • Maximum Distance:
    • 40m (131.23ft) - 2560x1600@60Hz
    • 35m (114.83ft) - 3840x2160@30Hz
    • 10m (32.81ft) - 3840x2160@60Hz
  • Maximum Input Distance:
    • 20m (65.62ft) - 20m (65.62ft) - 2560x1600@60Hz
    • 15m (49.21ft) - 15m (49.21ft) - 3840x2160@30Hz
    • 5m (16.4ft) - 3840x2160@60Hz
  • Maximum Output Distance:
    • 20m (65.62ft) - 2560x1600@60Hz
    • 20m (65.62ft) - 3840x2160@30Hz
    • 5m (16.4ft) - 3840x2160@60Hz
  • Maximum Resolution: 3840x2160@60Hz
  • HDCP Support: 1.4
  • Transmission Medium: 2 x DisplayPort Cable
  • Special Features: DPCP Compatible



Connectors

  • Input: DisplayPort (Female)
  • Output: DisplayPort (Female)
  • Power: 3.5/1.35 DC socket



Physical Properties

  • Dimensions WxHxD: 54x54x19mm (2.13x2.13x0.75in)
  • Housing Material: Plastic
  • Nett Weight: 0.11kg (0.24lb)
  • Operating Temperature: 5°C - 50°C (41°F - 122°F)
  • Storage Temperature: -20°C - 60°C (-4°F - 140°F)
  • Humidity: 0-80% RH (non-condensing)
  • Power Requirements: 5VDC 1A
  • Colour: White



Miscellaneous

  • Packaging Type: Blister
  • Packaging Dimensions: 126x202x58mm (4.96x7.95x2.28in)
  • Gross Weight: 0.3kg (0.66lb)
  • Warranty (Years): 2
  • Certificated: CE, FCC, RoHS & REACH



Package Contents

  • HDMI Repeater
  • Multi-Country Power Supply (UK, Euro, US, AUS)
  • Lindy Manual



Purchasing Information

  • No. 38413
  • EAN: 4002888384131
