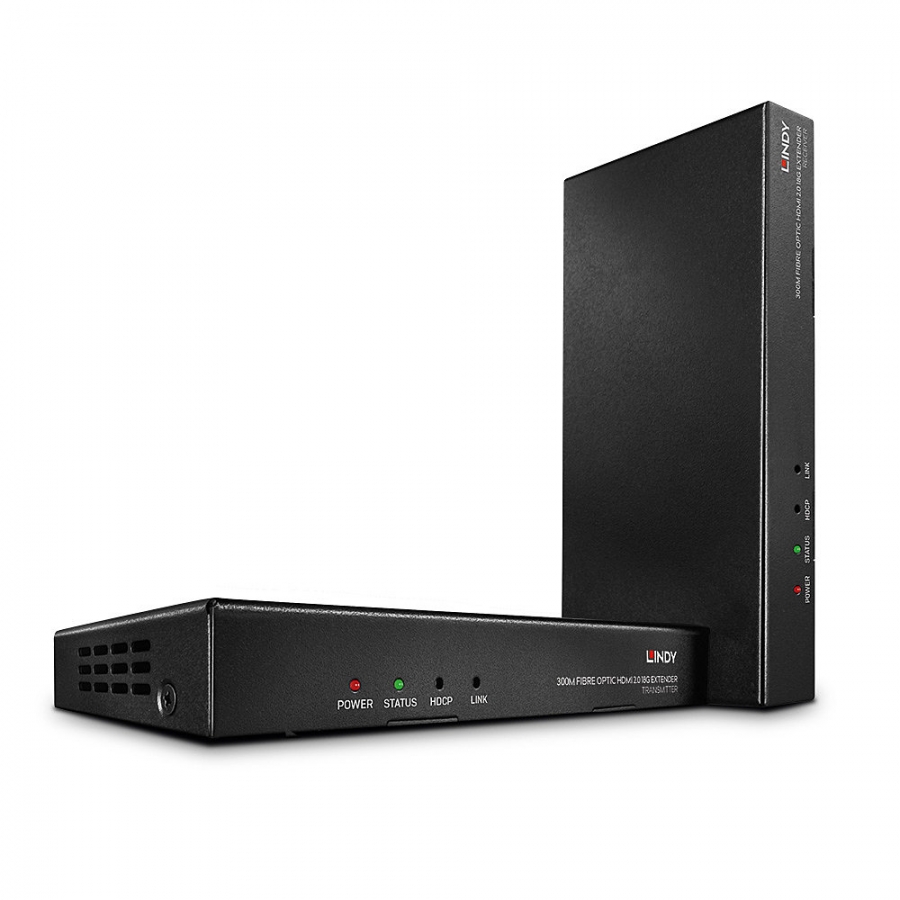

300m Fibre Optic HDMI 18G & IR Extender

LIN38174

New

Specifications

  • AV Interface: HDMI
  • Interface Standard: HDMI 2.0
  • Supported Bandwidth: 18Gbps
  • Maximum Distance:
    • 300m (984.24ft)
    • 1500m (4921.2ft) non-HDCP 10.2G
  • Maximum Resolution: 3840x2160@60Hz 4:4:4 8bit
  • HDCP Support: Pass-through
  • EDID Pass Through: Pass-through
  • Supported Audio: Pass-through
  • Separate Audio Ports: -
  • IR Support: < 100kHz
  • CEC Support: -
  • Serial Interface: RS-232 (Bi-directional)
  • Transmission Protocol: -
  • Transmission Medium: 1 x Duplex LC (50/125µm)
  • Laser Class (only for Fibre): 1
  • Wavelength (only for Fibre): 850nm (with supplied SFP+ module)
  • Chipset: SiFotonics SD1503/SD1513
  • Special Features: Auto Laser Disabling Function



Connectors

  • Transmitter Input: HDMI Type A (Female)
  • Transmitter Output: Duplex LC
  • Receiver Input: Duplex LC
  • Receiver Ouput: HDMI Type A (Female)
  • Bidirectonal Ports: RS232 (Terminal Blocks), IR (Female)
  • Power: 5.5/2.5mm DC Socket



Physical Properties

  • Dimensions (approx.) WxDxH: 150x20x74.4mm (5.91x0.79x2.93in)
  • Housing Material: Metal
  • Net Weight: 0.3kg (0.66lb) per unit
  • Operating Temperature: 0°C - 45°C (32°F - 113°F)
  • Storage Temperature: -20°C - 70°C (-4°F - 158°F)
  • Humidity: 10 - 90% RH (non-condensing)
  • Power Requirements: 12VDC 0.5A
  • Colour: Black



Miscellaneous

  • Packaging Type: Carton box
  • Packaging Dimensions: 305x180x75mm (12.01x7.09x2.95in
  • Gross Weight: 1.228kg (2.71lb)
  • Warranty (Years): 2
  • Certificated: CE, FCC, RoHS, California Proposition 65 & REACH



Package Contents

  • Transmitter unit
  • Receiver unit
  • 2 x Multi-Country Power Supply (EU, UK, US & AUS)
  • 2 x Fibre SFP+ Modules
  • 2 x Terminal Blocks
  • 2 x IR Emitter Cable
  • 2 x IR Receiver Cable
  • 4 x Mounting Brackets
  • Lindy Manual



Purchasing Information

  • No.: 38174
  • EAN: 4002888381741
