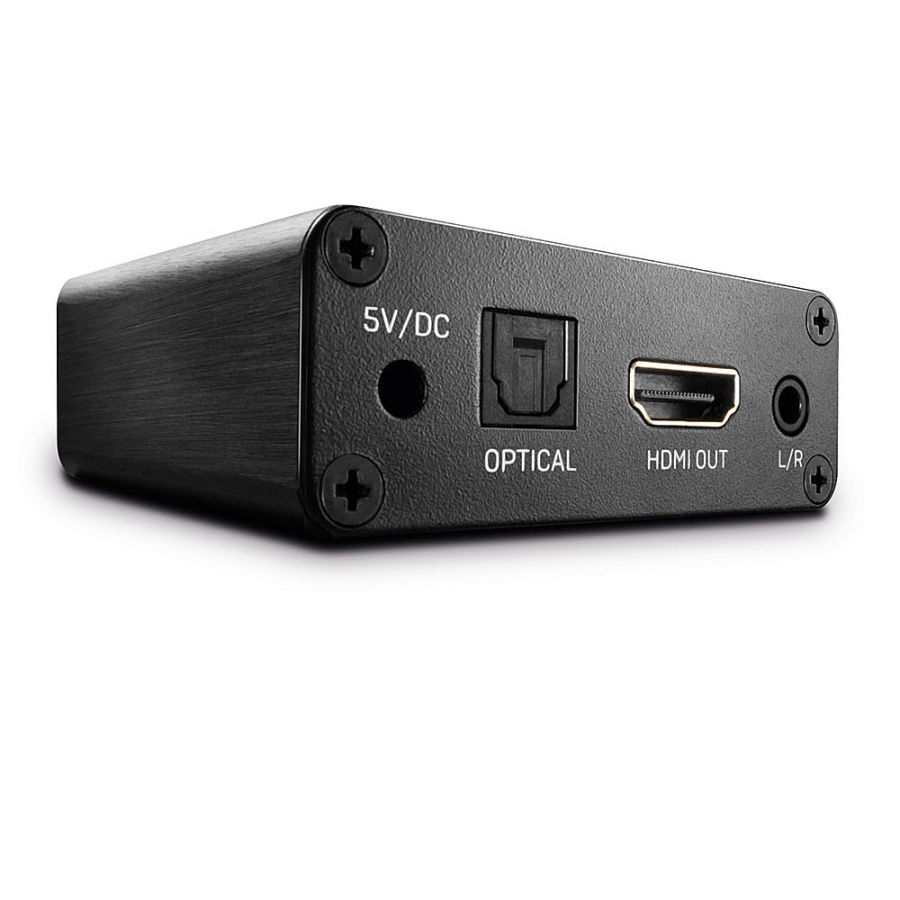

HDMI 18G Audio Extractor

LIN38171

New

Specifications

  • Video Interface: HDMI
  • Interface Standard: HDMI 2.0
  • Supported Bandwidth: 18Gbps
  • Maximum Resolution: 4096x2160@60Hz 4:4:4 8bit
  • HDCP Support: HDCP 2.2
  • Audio Interface:
    • HDMI
    • Toslink (Optical)
    • 3.5mm Analogue
    • Chipset: SiI9396CNUC
  • Supported Audio:
    • HDMI (Pass-Through): LPCM 2/5.1/7.1CH, Dolby Digital 2/5.1CH, DTS 2/5.1CH, Dolby Digital Plus, Dolby TrueHD, DTS-HD Master Audio, Dolby Atmos, DTS:X
    • Toslink (Optical): LPCM 2CH, Dolby Digital 2/5.1CH, DTS 2/5.1CH
    • 3.5mm: Analogue Stereo 2CH
  • Maximum Supported Audio Sample Rate: 192kHz
  • Input Impedance: -
  • Output Impedance: -
  • Output Voltage: -
  • Frequency Response: 20Hz-20kHz
  • Signal to Noise Ratio: 102dB
  • Special Features: CEC Bypass, Audio EDID Switch



Connectors

  • Input: HDMI Type A (Female)
  • Output:
    • HDMI Type A (Female)
    • Toslink (Optical)
    • 3.5mm (Female)
  • Power: 3.5/1.35mm



Physical Properties

  • Dimensions (approx.) WxDxH: 64x23x77mm (2.52x0.91x3.03in)
  • Housing Material: Metal
  • Net Weight: 0.154kg (0.34lb)
  • Operating Temperature: 0°C - 40°C (32°F - 104°F)
  • Storage Temperature: -20°C - 60°C (-4°F - 140°F)
  • Humidity: 20-90% RH (Non Condensing)
  • Power Requirements: 5VDC 2A
  • Colour: Black



Miscellaneous

  • Packaging Type: Carton Box
  • Packaging Dimensions: 145x45x90mm (5.71x1.77x3.54in)
  • Gross Weight: 0.285kg (0.63lb)
  • Warranty (Years): 2
  • Certificated: CE, FCC, RoHS & REACH



Package Contents

  • HDMI 2.0 Audio Extractor
  • Multi-country Power Supply (UK, EU, US & AUS)
  • LINDY Manual



Purchasing Information

  • No.: 38171
  • EAN: 4002888381710
