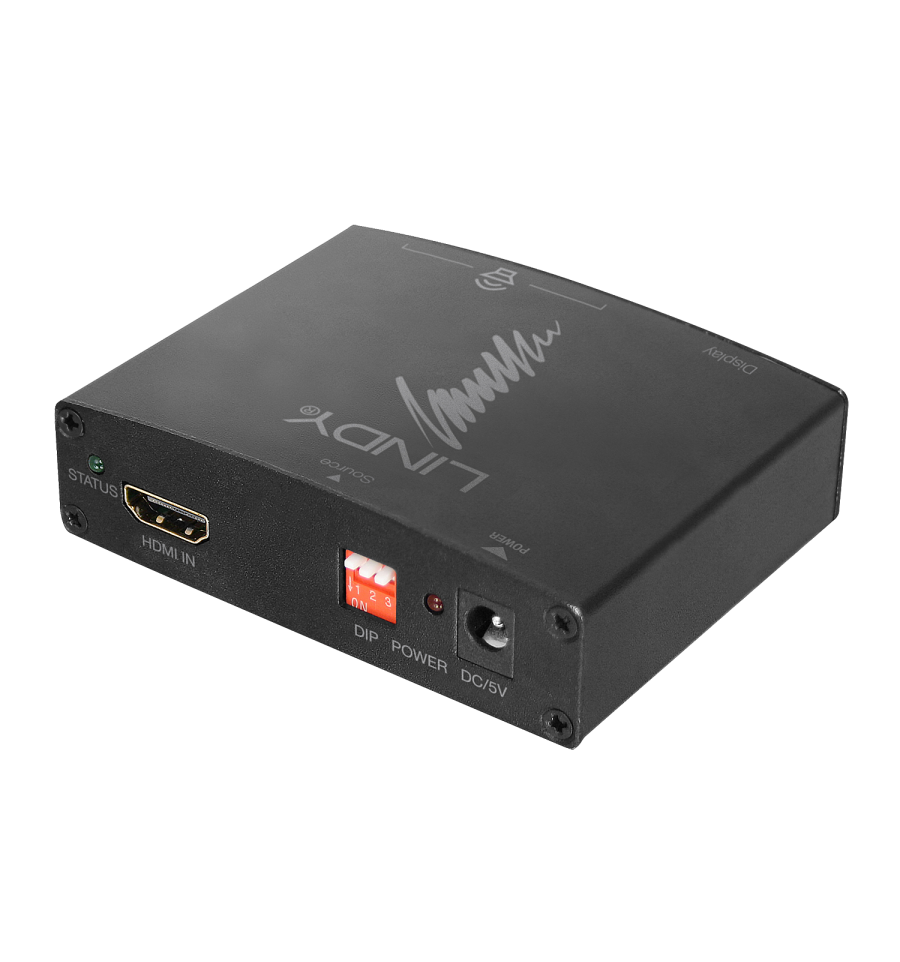

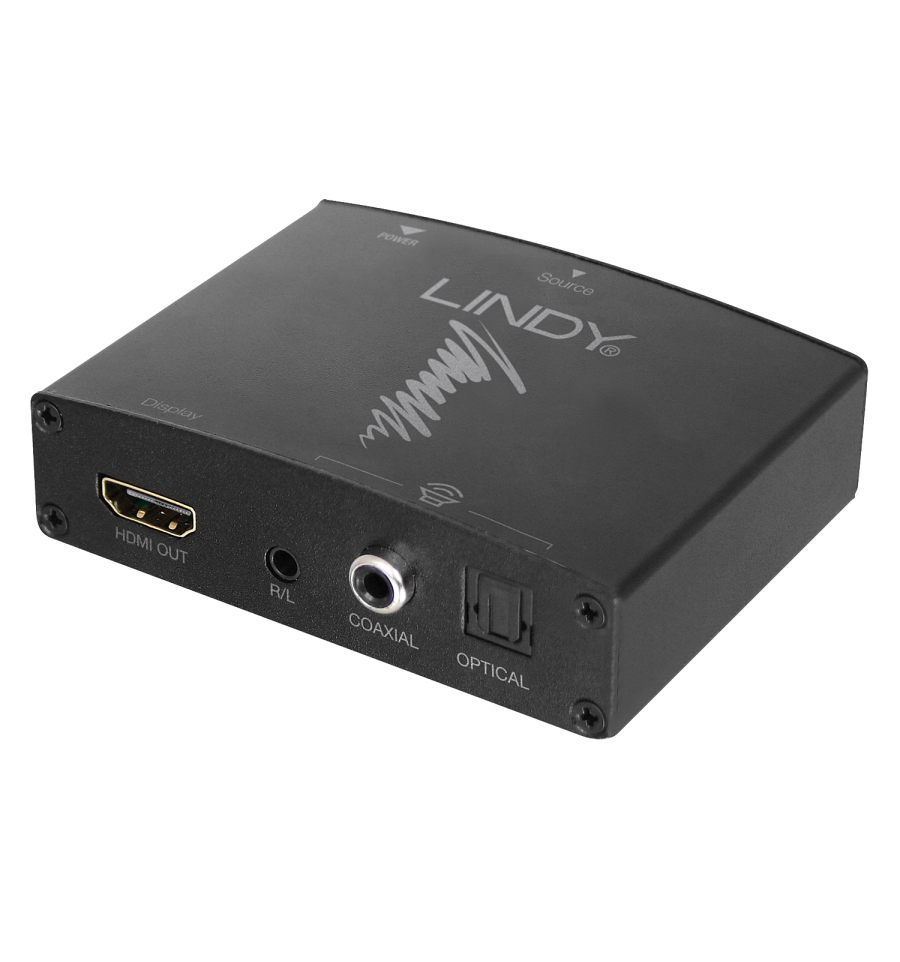

HDMI 10.2G Audio Extractor

LIN38167

New

Specifications

  • Video Interface: HDMI
  • Interface Standard: 1.4
  • Supported Bandwidth: 10.2Gbps
  • Maximum Resolution: 4096x2160@30Hz 4:4:4 8bit
  • HDCP Support: HDCP 1.4
  • Audio Interface: SPDIF, Toslink (Optical), 3.5mm Stereo
  • Chipset: EP91A2E
  • Supported Audio:

HDMI Pass-through

Toslink (Optical): 2CH LPCM, Dolby Digital 2/5.1, DTS-HD

Coaxial: 2CH LPCM, Dolby Digital 2/5.1, DTS-HD

3.5mm: 2CH LPCM

  • Maximum Supported Audio Sample Rate: 192kHz (Via EDID Copy)
  • Input Impedance: 100Ω
  • Output Impedance: 100Ω
  • Output Voltage: -
  • Frequency Response: ±0.1dB
  • Signal to Noise Ratio: -
  • Special Features: CEC Pass-through



Connectors

  • Input: HDMI Type A (Female)
  • Output: HDMI Type A (Female)

3.5mm Stereo

Toslink (Optical)

SPDIF (Coaxial)

  • Power: 5.5/2.1mm DC Socket



Physical Properties

  • Dimensions (approx.) WxDxH: 65x88x24mm (2.56x3.46x0.94in)
  • Housing Material: Metal
  • Net Weight: 0.118kg (0.26lb)
  • Operating Temperature: -15°C - 55°C (5°F - 131°F)
  • Storage Temperature: -20°C - 60°C (-4°F - 140°F)
  • Humidity: 10 - 90% RH (non-condensing)
  • Power Requirements: 5W
  • Colour: Black



Miscellaneous

  • Packaging Type: Carton Box
  • Packaging Dimensions: 202x144x55mm (7.95x5.67x2.17in)
  • Gross Weight: 0.25kg (0.55lb)
  • Warranty (Years): 2
  • Certificated: CE, FCC, RoHS, REACH & California Proposition 65



Package Content

  • HDMI 4K Audio Extractor / De-embedder
  • USB Type A to DC Cable, 0.8m
  • LINDY Manual



Purchasing Information

  • No.: 38167
  • EAN: 4002888381673
