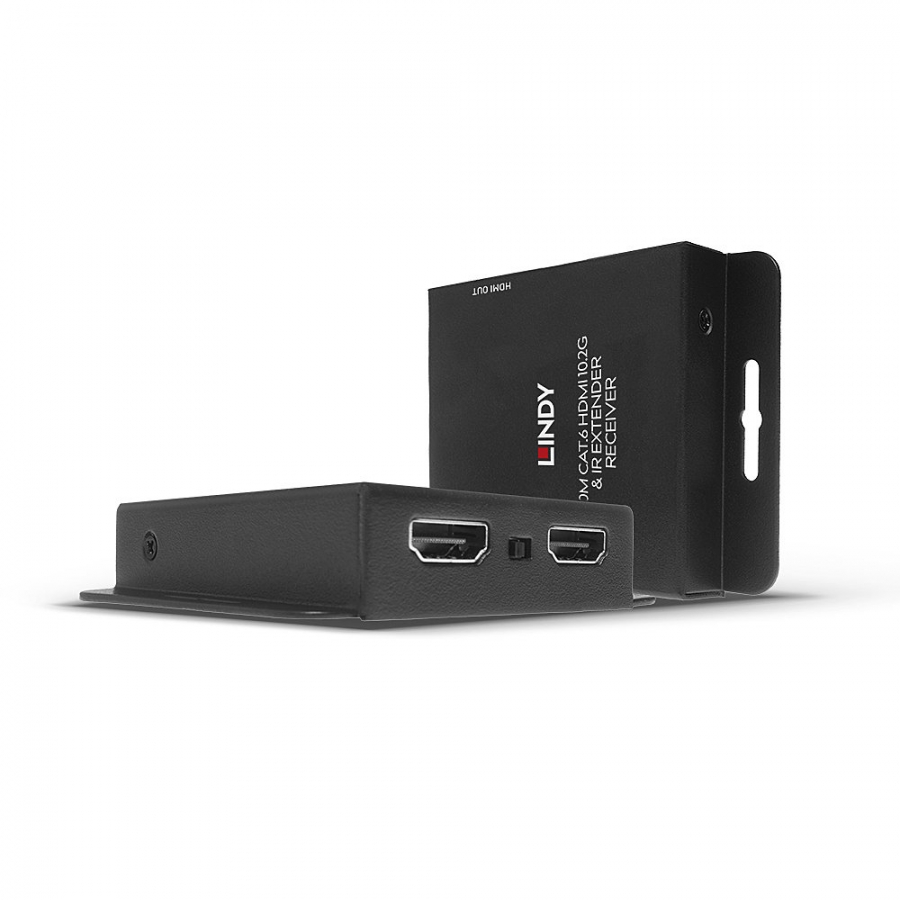

Lindy 70m Cat.6 HDMI 10.2G & IR Extender with PoC & Loop Out

Specifications

• AV Interface: HDMI
• Interface Standard: HDMI 1.4
• Supported Bandwidth: 10.2Gbps
• Maximum Distance: 70m (229.66ft) - 1920x1080@60Hz, 40m (131.23ft) - 3840x2160@30Hz 4:4:4 8bit
• Maximum Resolution: 3840x2160@30Hz 4:4:4 8bit
• HDCP Support: HDCP 1.4
• EDID Pass Through: EDID Copy Functionality
• Supported Audio: Up to 7.1 (Pass-through)
• Separate Audio Ports: -
• IR Support: 20-60kHz
• CEC Support: -
• Serial Interface: -
• Transmission Protocol: -
• Transmission Medium: 1 x Cat.6
• Laser Class (only for Fibre): -
• Wavelength (only for Fibre): -
• Chipset: GSV1001
• Special Features: PoC (Power over Cat.6), IR Pass-through, Loop Out

Connectors

• Transmitter Input: HDMI Type A (Female)
• Transmitter Output: HDMI Type A (Female), RJ-45 (Female), IR (Female)
• Receiver Input: RJ-45 (Female), IR (Female)
• Receiver Output: HDMI Type A (Female)
• Bi-directional Ports: -
• Power : 5.5/2.1mm

Physical Properties

• Dimensions (approx.) WxDxH: 79.5x16.5x69mm (3.13x0.65x2.72in)
• Housing Material: Metal
• Net Weight: 0.13kg (0.29lb) per unit
• Operating Temperature : 0°C - 40°C (32°F - 104°F)
• Storage Temperature: -20°C - 60°C (-4°F - 140°F)
• Humidity: 20 – 90% RH (no condensation)
• Power Requirements: 12VDC 1A
• Colour: Black

Miscellaneous

• Packaging Type: Carton Box
• Packaging Dimensions: 200x70x113mm (7.87x2.76x4.45in)
• Gross Weight: 0.414kg (0.91lb)
• Warranty (Years): 2
• Certificated: CE, FCC, RoHS, REACH & California Proposition 65

Package Contents

• Transmitter
• Receiver
• Multi-country Power Supply (UK, EU, US & AUS)
• IR Transmitter
• IR Receiver
• Lindy Manual

Purchasing Information

• No.: 38208
• EAN: 4002888382083
